7029-1513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SSMC M STR EDGE
| Part | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Includes | Voltage Rating | Center Contact Plating | Body Material | Mounting Type | Frequency - Max [Max] | Fastening Type | Shield Termination | Contact Termination | Mounting Feature | Center Contact Material | Housing Color | Number of Ports | Connector Type | Impedance | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

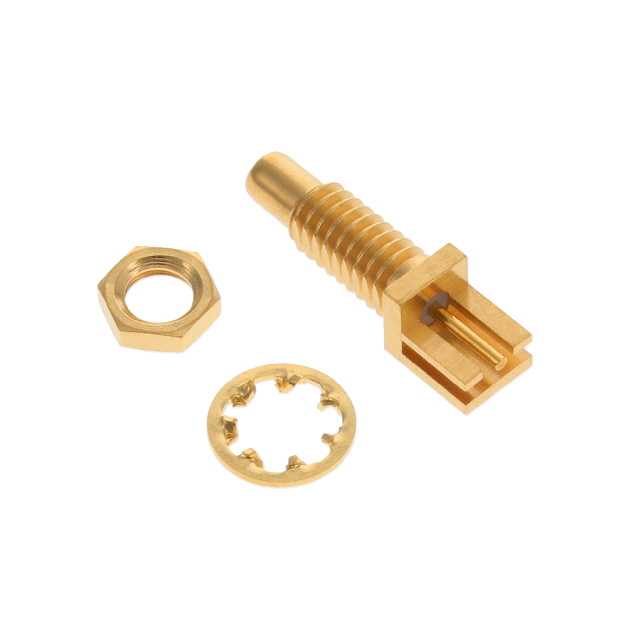

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Gold | 1 Connector 1 Lockwasher 1 Nut | 250 V | Gold | Stainless Steel | Board Edge End Launch Panel Mount | 12.4 GHz | Snap-On | Solder | Solder | Bulkhead - Front Side Nut | Beryllium Copper | Gold | 1 | Jack Male Pin | 50 Ohms | SSMC |

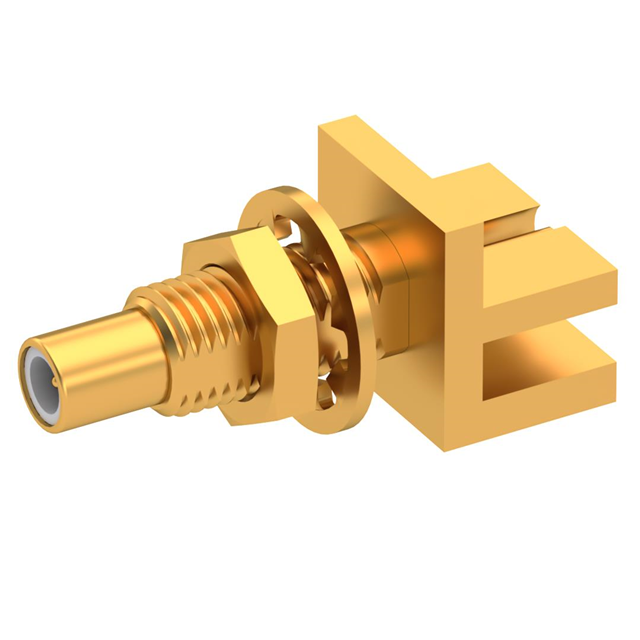

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Gold | 1 Connector 1 Lockwasher 1 Nut | 250 V | Gold | Stainless Steel | Board Edge End Launch Panel Mount | 12.4 GHz | Snap-On | Solder | Solder | Bulkhead - Front Side Nut | Beryllium Copper | Gold | 1 | Jack Male Pin | 50 Ohms | SSMC |
