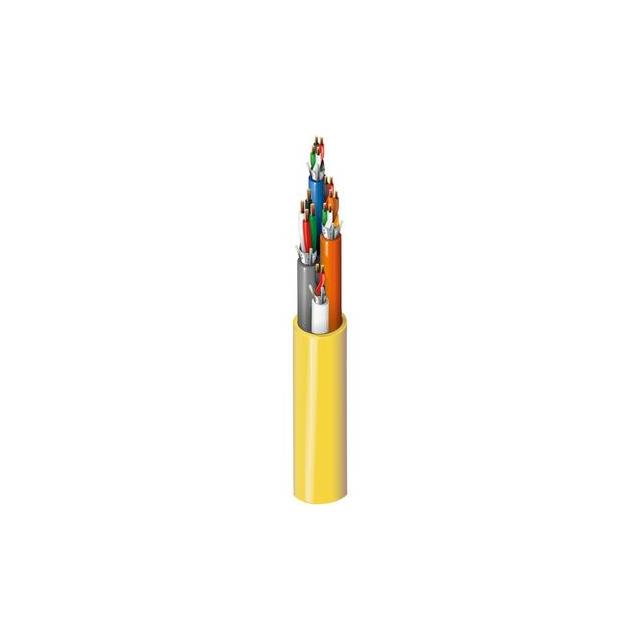

658AFJ Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 16COND 18/22AWG
| Part | Shield Material | Shield Coverage | Jacket Color | Number of Conductors [custom] | Number of Conductors [custom] | Voltage | Features | Wire Gauge | Conductor Insulation | Length | Length | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Ratings | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Yellow | 3 | 10 | 300 VDC | Drain Wire Rip Cord | 18 AWG 22 AWG | Low Smoke Poly-Vinyl Chloride (LSPVC) | 304.8 m | 1000 ft | Foil | 7 | 26 AWG 30 AWG | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 11.76 mm | 0.463 in | Multi-Pair | UL Style CMP | Copper Bare | 75 ░C | 0 °C |
