2337826 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

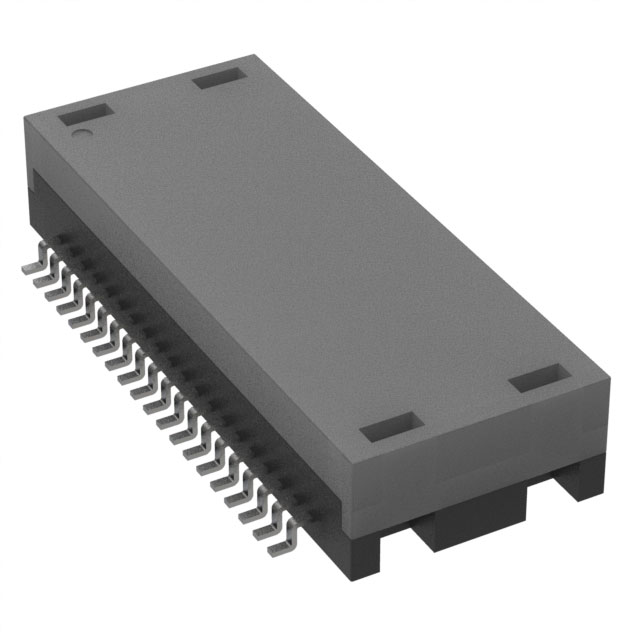

DISCR.ETH.MAG. 10/100 QUAD SMT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Return Loss | Termination Style | Turns Ratio - Primary:Secondary [custom] | Turns Ratio - Primary:Secondary [custom] | Height - Seated (Max) [Max] | Height - Seated (Max) | Insertion Loss | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | -18 dB | Gull Wing | 1CT | 1CT | 0.285 in | 7.24 mm | -1 dB | 1500 VAC | 0.482 in | 12.25 mm | 1.232 in | 31.3 mm | Surface Mount |
