GMVSTBR Series

Pluggable Terminal Blocks 12 Pos 7.5mm pitch Plug 24-12 AWG Screw

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 12 Pos 7.5mm pitch Plug 24-12 AWG Screw

Catalog

Pluggable Terminal Blocks 12 Pos 7.5mm pitch Plug 24-12 AWG Screw

Part	Housing Material	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Material Flammability Rating	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Screw Size	Wire Strip Length	Insulation Height	Insulation Height	Mounting Type	Plug Wire Entry	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Pitch	Pitch	Positions Per Level	Contact Mating Finish	Voltage - UL	Current - IEC	Type	Number of Levels	Termination Style	Voltage - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Number of Positions
Phoenix Contact 1832620	Polyamide (PA) Nylon	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	UL94 V-0	2.5 mm˛	0.2 mm˛	M3	7 mm	26.01 mm	1.024 in	Free Hanging (In-Line)	90 °	30 AWG	12 AWG	Retention Latches (Wire Side)	0.3 in	7.62 mm	12	Tin	300 V	12 A	Plug Female Sockets	1	Screw - Rising Cage Clamp	1 kV	2.5 mm²	0.2 mm²	Green	12

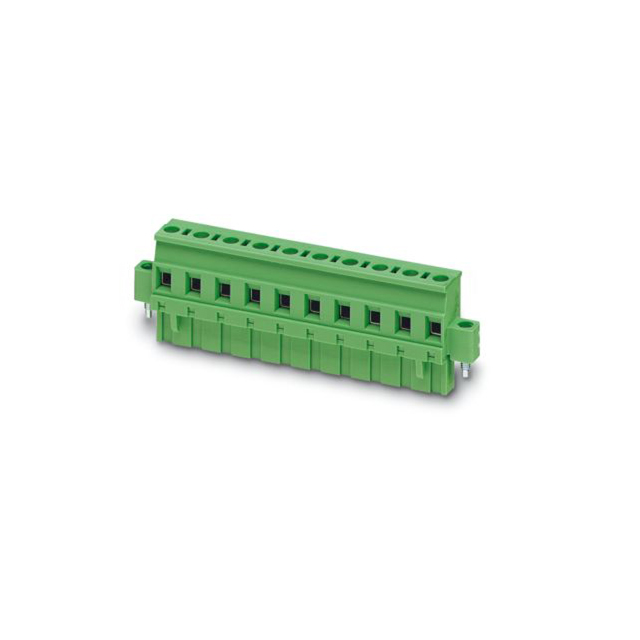

Phoenix Contact 1917121		0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In				M3	7 mm	26.01 mm	1.024 in	Free Hanging (In-Line)	90 °	30 AWG	12 AWG	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	3	Tin		12 A	Plug Female Sockets	1	Screw - Rising Cage Clamp	500 V	2.5 mm²	0.2 mm²	Black
Phoenix Contact 1832523													Free Hanging (In-Line)	90 °	30 AWG	12 AWG	Retention Latches (Wire Side)	0.3 in	7.62 mm	2	Tin	300 V	12 A	Plug Female Sockets	1	Screw - Rising Cage Clamp	1 kV	2.5 mm²	0.2 mm²	Green	2
Phoenix Contact 1737709													Free Hanging (In-Line)	90 °	30 AWG	12 AWG	Retention Latches (Wire Side)	0.295 in	7.5 mm	2	Tin	300 V	12 A	Plug Female Sockets	1	Screw - Rising Cage Clamp	1 kV	2.5 mm²	0.2 mm²	Green	2

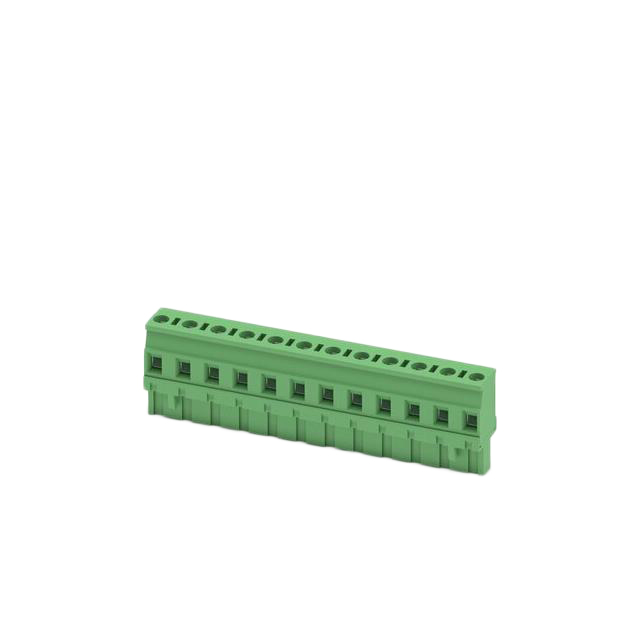

Phoenix Contact 1737806	Polyamide (PA) Nylon	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	UL94 V-0	2.5 mm˛	0.2 mm˛	M3	7 mm	26.01 mm	1.024 in	Free Hanging (In-Line)	90 °	30 AWG	12 AWG	Retention Latches (Wire Side)	0.295 in	7.5 mm	12	Tin	300 V	12 A	Plug Female Sockets	1	Screw - Rising Cage Clamp	1 kV	2.5 mm²	0.2 mm²	Green	12
Phoenix Contact 1832565													Free Hanging (In-Line)	90 °	30 AWG	12 AWG	Retention Latches (Wire Side)	0.3 in	7.62 mm	6	Tin	300 V	12 A	Plug Female Sockets	1	Screw - Rising Cage Clamp	1 kV	2.5 mm²	0.2 mm²	Green	6
Phoenix Contact 1847880													Free Hanging (In-Line)	90 °	30 AWG	12 AWG	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	2	Tin	300 V	12 A	Plug Female Sockets	1	Screw - Rising Cage Clamp	1 kV	2.5 mm²	0.2 mm²	Green	2
