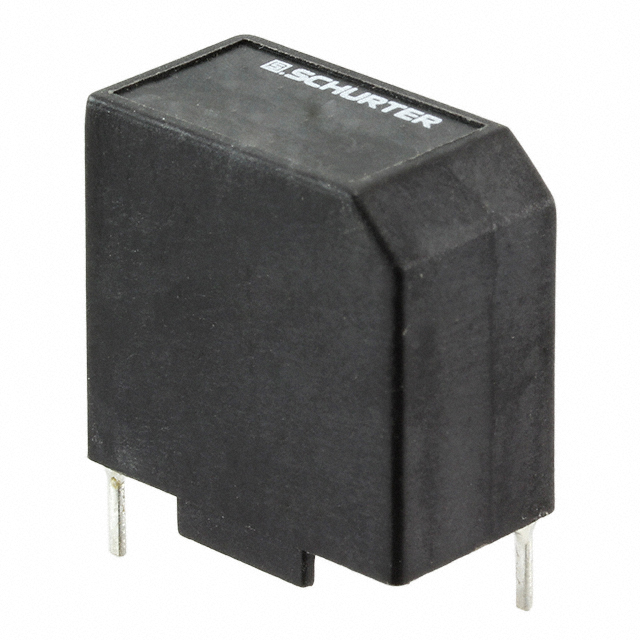

DSH-22 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
FIXED IND 4.5A 8 MOHM TH
| Part | Current Rating (Amps) | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 4.5 A | Through Hole | 0.512 " | 13 mm | 0.906 in | 23 mm | 8 mOhm | 125 °C | -40 C | Radial Horizontal - Corner Terminals |
SCHURTER Inc. | 0.45 A | Through Hole | 0.512 " | 13 mm | 0.906 in | 23 mm | 1.25 Ohm | 125 °C | -40 C | Radial Horizontal - Corner Terminals |
SCHURTER Inc. | 1.4 A | Through Hole | 0.512 " | 13 mm | 0.906 in | 23 mm | 160 mOhm | 125 °C | -40 C | Radial Horizontal - Corner Terminals |
SCHURTER Inc. | 1 A | Through Hole | 0.512 " | 13 mm | 0.906 in | 23 mm | 300 mOhm | 125 °C | -40 C | Radial Horizontal - Corner Terminals |
