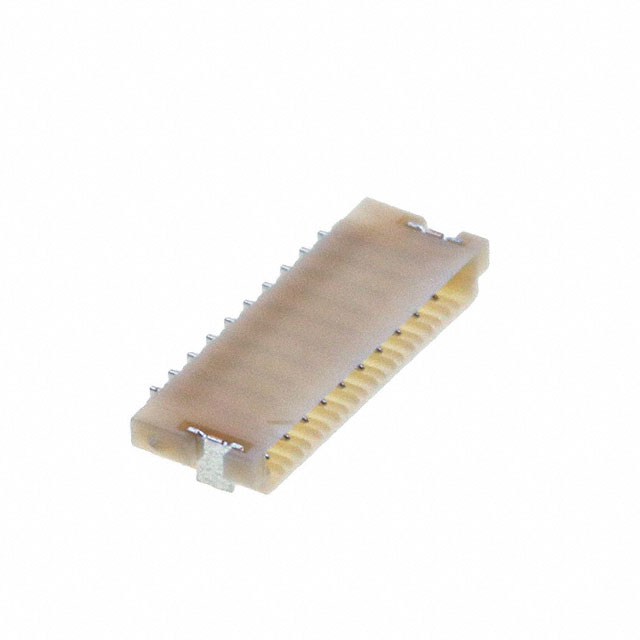

SM10B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A P10OS 1MM
| Part | Contact Material | Features | Insulation Color | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Number of Rows | Shrouding | Material Flammability Rating | Style | Mounting Type | Termination | Number of Positions | Contact Finish - Post | Number of Positions Loaded | Voltage Rating | Fastening Type | Connector Type | Contact Type | Contact Shape | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Phosphor Bronze | Solder Retention | Natural | 1 mm | 0.039 in | 0.069 in | 1.75 mm | 1 | Shrouded - 4 Wall | UL94 V-0 | Board to Cable/Wire | Right Angle Surface Mount | Solder | 10 | Tin | All | 50 V | Push-Pull | Header | Outer Shroud Contact | Rectangular | Nylon Polyamide (PA) | 85 °C | -25 °C |
