846-084 Series
Manufacturer: EDAC Inc.
Beta
⌘K

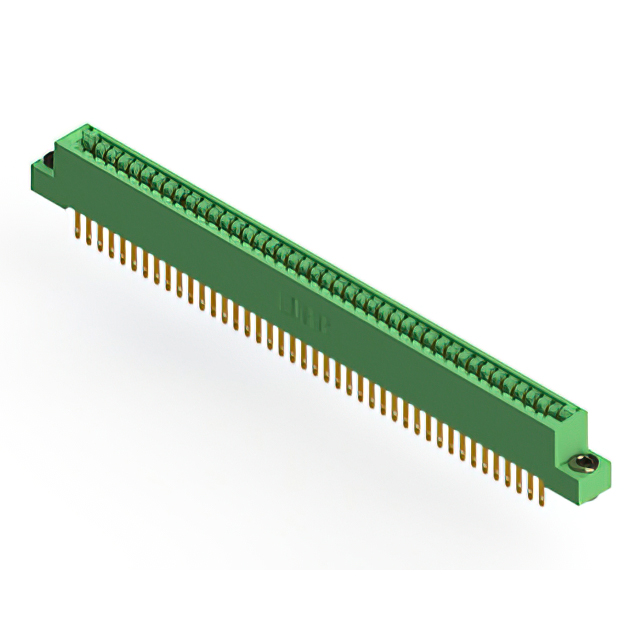

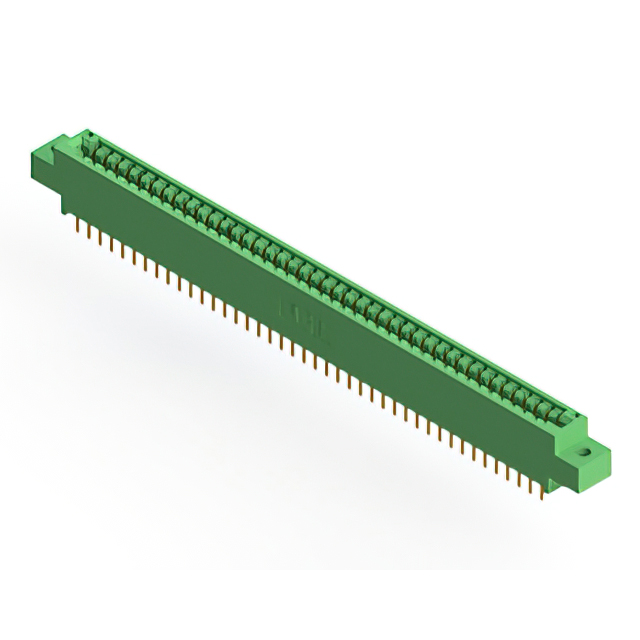

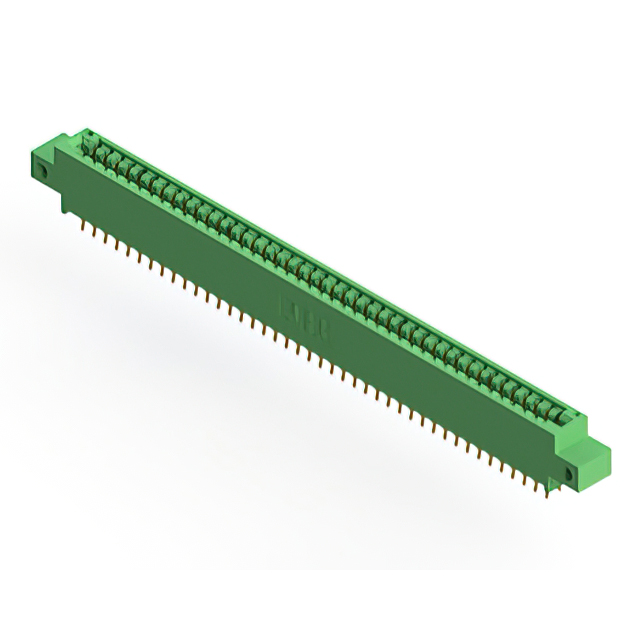

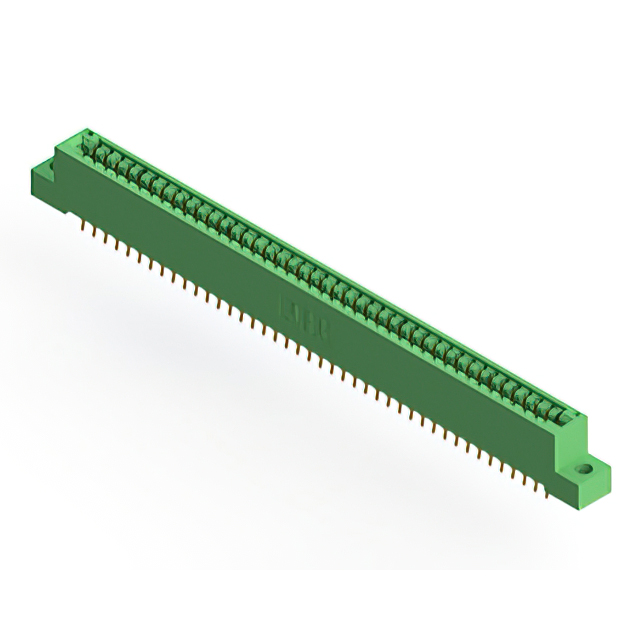

CONN EDGE DUAL FMALE 84POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Color | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Read Out | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Positions/Bay/Row | Termination | Number of Rows [custom] | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Number of Positions [custom] | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Through Hole | 0.25 Ám | 10 Áin | Female | 42 | Solder | 2 | Copper Alloy | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Through Hole | 0.25 Ám | 10 Áin | Female | 42 | Solder | 2 | Copper Alloy | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Right Angle Through Hole | 0.25 Ám | 10 Áin | Female | 42 | Solder | 2 | Copper Alloy | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Through Hole | 0.25 Ám | 10 Áin | Female | 42 | Solder Eyelet(s) | 2 | Copper Alloy | 2.95 mm | 0.116 " | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | Floating Bobbin Flush Mount | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Through Hole | 0.25 Ám | 10 Áin | Female | 42 | Solder | 2 | Copper Alloy | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | Side Mount Opening Unthreaded | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Female | 42 | Solder | 2 | Copper Alloy | 3.96 mm | 0.156 " | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | Card Extender |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Female | 42 | Solder | 2 | Copper Alloy | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | Card Extender |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Right Angle Through Hole | 0.25 Ám | 10 Áin | Female | 42 | Solder | 2 | Copper Alloy | 2.95 mm | 0.116 " | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | Floating Bobbin Flush Mount | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Right Angle Through Hole | 0.25 Ám | 10 Áin | Female | 42 | Solder | 2 | Copper Alloy | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Dual | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Female | 42 | Solder | 2 | Copper Alloy | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 84 | Cantilever | 125 °C | -40 C | Side Mount Opening Unthreaded | Card Extender |
