EMKDS Series

Fixed Terminal Blocks 4P 5.08mm 90DEG

Manufacturer: Phoenix Contact

Catalog

Fixed Terminal Blocks 4P 5.08mm 90DEG

Catalog

Fixed Terminal Blocks 4P 5.08mm 90DEG

Part	Wire Termination	Mating Orientation	Current	Number of Levels	Voltage	Positions Per Level	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Color	Pitch	Pitch	Screw Thread	Housing Material	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]
Phoenix Contact 1897704	Screw - Rising Cage Clamp	Horizontal with Board	10 A	1	300 VDC	3	Press Fit	30 AWG	14 AWG	Green	5.08 mm	0.2 in
Phoenix Contact 1897759	Screw - Rising Cage Clamp	Horizontal with Board	10 A	1	300 VDC	8	Press Fit	30 AWG	14 AWG	Green	5.08 mm	0.2 in	M2	Polyamide (PA) Nylon	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In

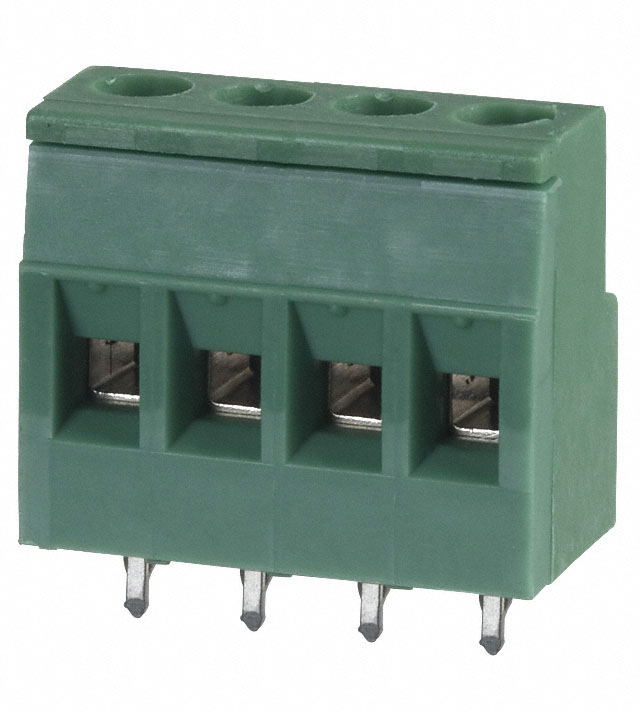

Phoenix Contact 1730638	Screw - Rising Cage Clamp	Horizontal with Board	10 A	1	300 VDC	4	Through Hole	30 AWG	12 AWG	Green	5.08 mm	0.2 in	M3	Polyamide (PA) Nylon	0.6 Nm	0.5 Nm	5.3 Lb-In	4.4 Lb-In

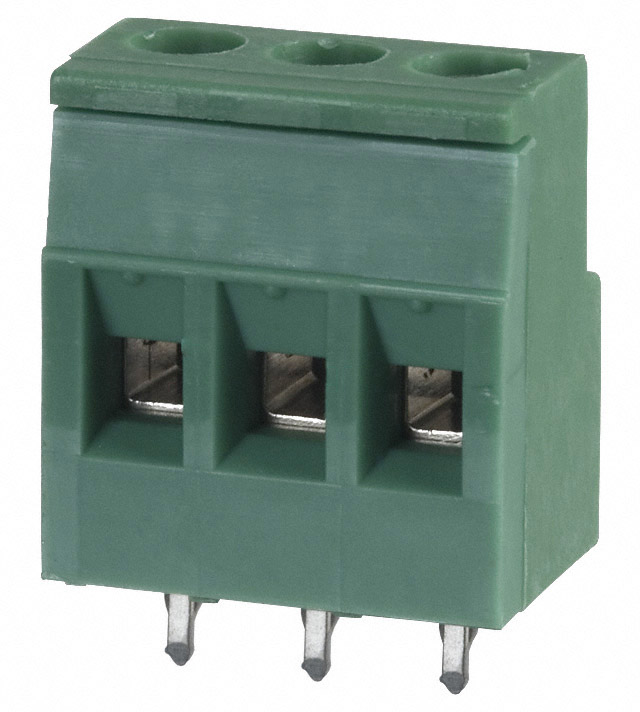

Phoenix Contact 1730625	Screw - Rising Cage Clamp	Horizontal with Board	10 A	1	300 VDC	3	Through Hole	30 AWG	12 AWG	Green	5.08 mm	0.2 in	M3	Polyamide (PA) Nylon	0.6 Nm	0.5 Nm	5.3 Lb-In	4.4 Lb-In
