LP38512-ADJ Series

1.5-A, adjustable ultra-low-dropout voltage regulator with low noise & enable

Catalog

1.5-A, adjustable ultra-low-dropout voltage regulator with low noise & enable

Part	Control Features	PSRR	Current - Output	Output Type	Number of Regulators	Output Configuration	Mounting Type	Package / Case	Voltage - Output (Min/Fixed)	Protection Features	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Supplier Device Package	Voltage - Input (Max) [Max]	Output Type	PSRR [Min]	PSRR [Max]	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Max) [Max]	Package / Case [y]	Package / Case [x]	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Utilized IC / Part	Supplied Contents	Channels per IC	Voltage - Output	Regulator Type
Texas Instruments LP38512TSX-1.8/NOPB	Enable	73 dB	1.5 A	1.81 mOhm	1	Positive	Surface Mount	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1.8 V	Over Current Over Temperature Short Circuit	7.5 mA	0.4 V	125 °C	-40 °C	14 mA	TO-263 (DDPAK-5)	5.5 V
Texas Instruments LP38512MRX-ADJ/NOPB	Enable		1.5 A		1	Positive	Surface Mount	8-PowerSOIC		Over Current Over Temperature Short Circuit	7.5 mA	0.3 V	125 °C	-40 °C	14 mA	8-SO PowerPad	5.5 V	Adjustable	70 dB	73 dB	0.5 V	4.5 V	3.9 mm	0.154 in
Texas Instruments LP38512TS-1.8EV			1.5 A																						2.25 V	5.5 V	Fully Populated	LP38512	Board(s)	1 - Single	1.8 V	Positive Fixed
Texas Instruments LP38512TJ-1.8/NOPB	Enable	73 dB	1.5 A	1.81 mOhm	1	Positive	Surface Mount	TO-263-5 Thin	1.8 V	Over Current Over Temperature Short Circuit	7.5 mA	0.4 V	125 °C	-40 °C	14 mA	TO-263-5 Thin	5.5 V
Texas Instruments LP38512TS-1.8/NOPB	Enable	73 dB	1.5 A	1.81 mOhm	1	Positive	Surface Mount	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1.8 V	Over Current Over Temperature Short Circuit	7.5 mA	0.4 V	125 °C	-40 °C	14 mA	TO-263 (DDPAK-5)	5.5 V

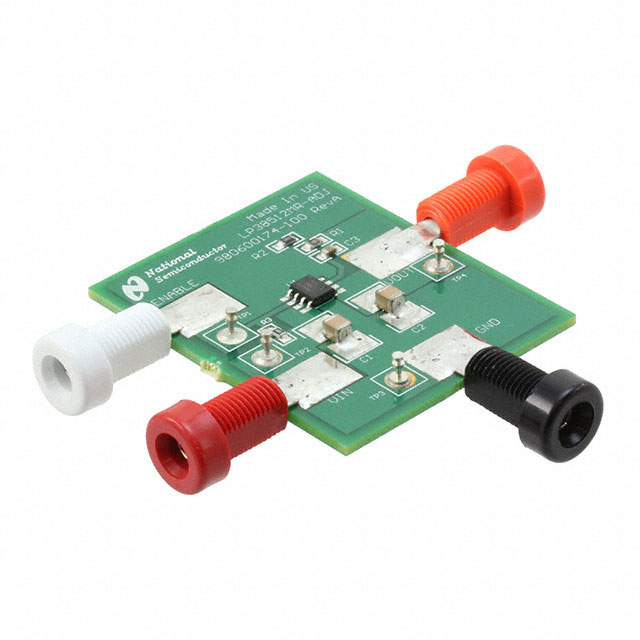

Texas Instruments LP38512TJ-ADJEV			1.5 A																						2.25 V	5.5 V	Fully Populated	LP38512	Board(s)	1 - Single	1.2 V	Positive Adjustable
Texas Instruments LP38512MR-ADJEV/NOPB			1.5 A																						2.25 V	5.5 V	Fully Populated	LP38512	Board(s)	1 - Single	1.2 V	Positive Adjustable

Catalog

1.5-A, adjustable ultra-low-dropout voltage regulator with low noise & enable

Key Features

• 2.25V to 5.5V Input Voltage RangeAdjustable Output Voltage Range of 0.5V to 4.5V1.5A Output Load Current±2.0% Accuracy over Line, Load, and Full-Temperature Range from -40°C to +125°CStable with Tiny 10 µF Ceramic CapacitorsEnable PinTypically Less than 1µA of Ground Pin Current in when Enable Pin is Low25dB of PSRR at 100 kHzOver-Temperature and Over-Current Protection8-Pin SO PowerPad and 5-Pin PFM Surface Mount PackagesAll trademarks are the property of their respective owners.2.25V to 5.5V Input Voltage RangeAdjustable Output Voltage Range of 0.5V to 4.5V1.5A Output Load Current±2.0% Accuracy over Line, Load, and Full-Temperature Range from -40°C to +125°CStable with Tiny 10 µF Ceramic CapacitorsEnable PinTypically Less than 1µA of Ground Pin Current in when Enable Pin is Low25dB of PSRR at 100 kHzOver-Temperature and Over-Current Protection8-Pin SO PowerPad and 5-Pin PFM Surface Mount PackagesAll trademarks are the property of their respective owners.

Description

The LP38512-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38512-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38512-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 μF ceramic capacitors, and has an adjustable output voltage. The LP38512-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations. The LP38512-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38512-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38512-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 μF ceramic capacitors, and has an adjustable output voltage. The LP38512-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations.
