039768 Series

Manufacturer: Molex

Catalog

7.62MM LRG PLUG RA GRN 6CKT

Part	Termination Style	Screw Size	Current - UL	Insulation Height	Insulation Height	Color	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Material Flammability Rating	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Contact Mating Finish	Positions Per Level	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch [x]	Pitch [x]	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

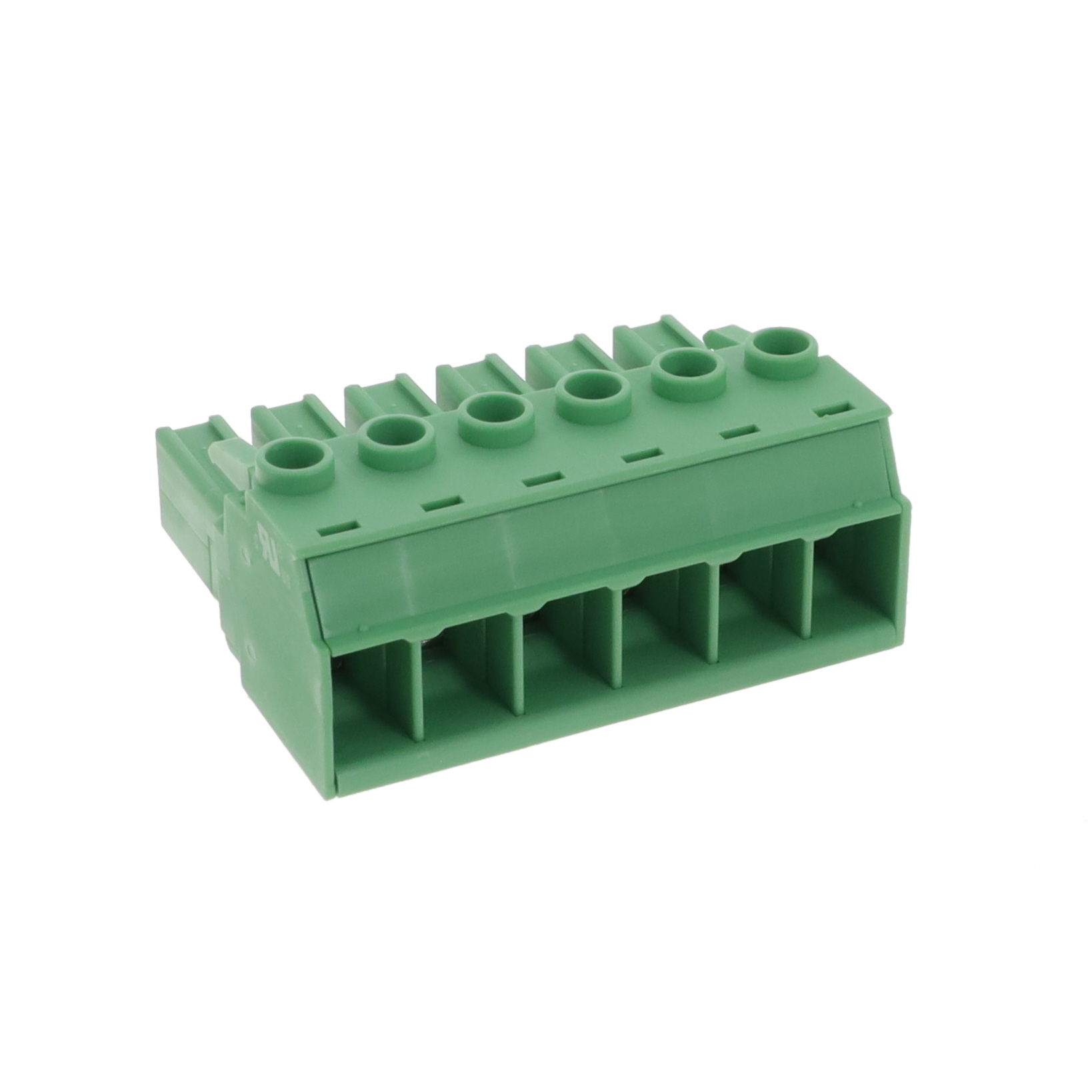

Molex 0397681006	Screw - Rising Cage Clamp	M3	41 A	19.8 mm	0.78 in	Green	6	24 AWG	8 AWG	Plug Female Sockets	UL94 V-0	10 mm˛	0.25 mm˛	Tin	6	1	-40 °C	105 ░C	Free Hanging (In-Line)	0.3 in	7.62 mm	Copper Alloy	10.5 mm	9.5 mm	0.79 Nm	7 Lb-In
Molex 0397681002	Screw - Rising Cage Clamp	M3	41 A	19.8 mm	0.78 in	Green	2	24 AWG	8 AWG	Plug Female Sockets	UL94 V-0			Tin	2	1	-40 °C	105 ░C	Free Hanging (In-Line)	0.3 in	7.62 mm	Copper Alloy	10.5 mm	9.5 mm	0.79 Nm	7 Lb-In	0.25 mm²	10 mm²
Molex 0397681004	Screw - Rising Cage Clamp	M3	41 A	19.8 mm	0.78 in	Green	4	24 AWG	8 AWG	Plug Female Sockets	UL94 V-0	10 mm˛	0.25 mm˛	Tin	4	1	-40 °C	105 ░C	Free Hanging (In-Line)	0.3 in	7.62 mm	Copper Alloy	10.5 mm	9.5 mm	0.79 Nm	7 Lb-In
