CDDFN2 Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRANSIENT VOLTAGE SUPPRESSOR, TVS, CDDFN2 SERIES, BIDIRECTIONAL, 3.3 V, DFN, 2, 4 V ROHS COMPLIANT: YES
| Part | Power Line Protection | Capacitance @ Frequency | Bidirectional Channels [custom] | Package / Case | Voltage - Breakdown (Min) [Min] | Current - Peak Pulse (10/1000µs) | Applications | Type | Voltage - Reverse Standoff (Typ) | Voltage - Clamping (Max) @ Ipp [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Power - Peak Pulse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

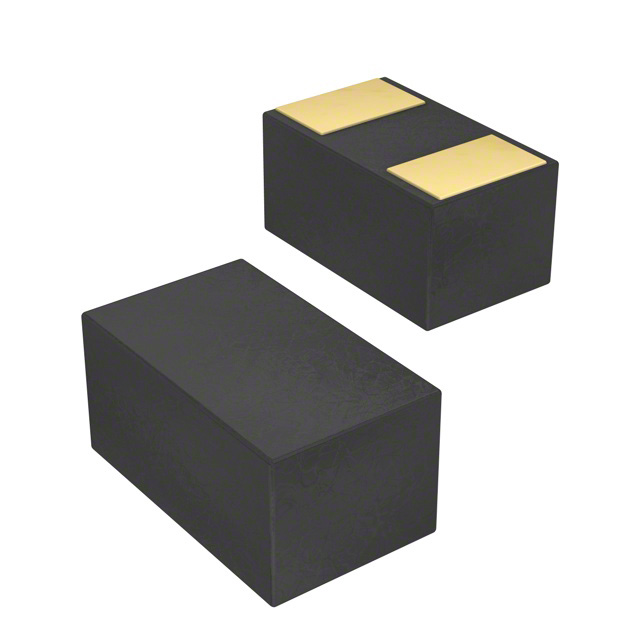

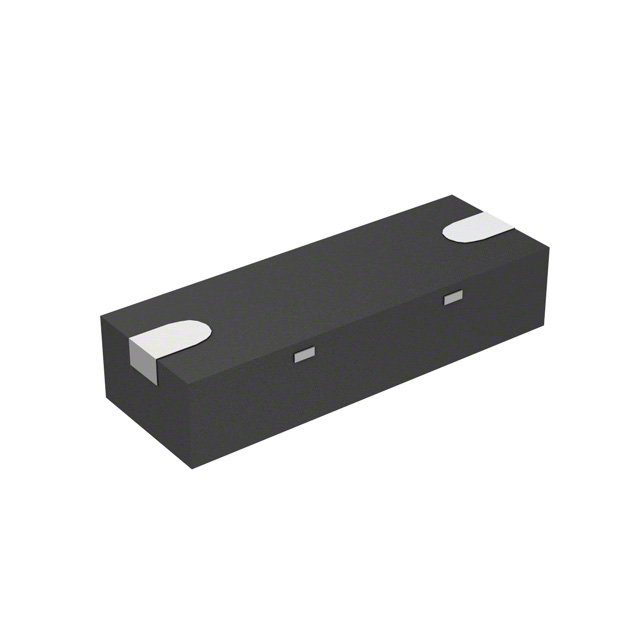

 Bourns Inc. | 1 MHz 13.5 pF | 1 | 2-XDFN | 4 V | 5 A | General Purpose | Zener | 3.3 V | 8 V | Surface Mount | -55 °C | 85 C | ||

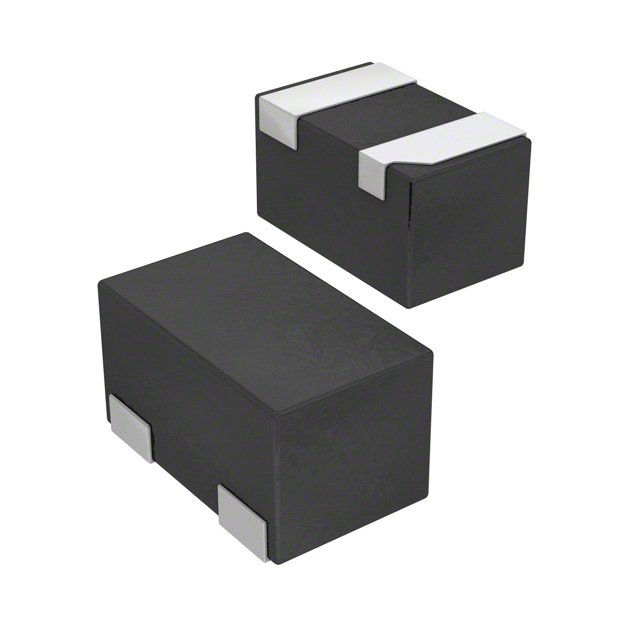

 Bourns Inc. | 12 pF | 1 | 2-UFDFN | 13 V | 1 A | General Purpose | Zener | 12 V | 25 V | Surface Mount | -40 °C | 125 °C | 25 W | |
 Bourns Inc. | 0.5 pF | 1 | 2-UFDFN | 7 V | General Purpose | Zener | 5 V | 25 V | Surface Mount | -40 ¯C | 85 C |
