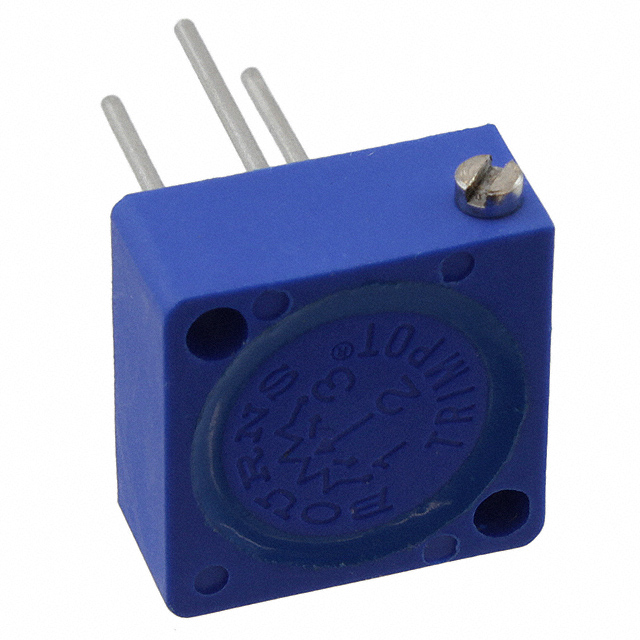

3250P Series

Catalog

TRIMMER 50 OHM 1W PC PIN SIDE

Part	Mounting Type	Power (Watts)	Termination Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Resistance	Resistive Material	Number of Turns	Temperature Coefficient	Adjustment Type

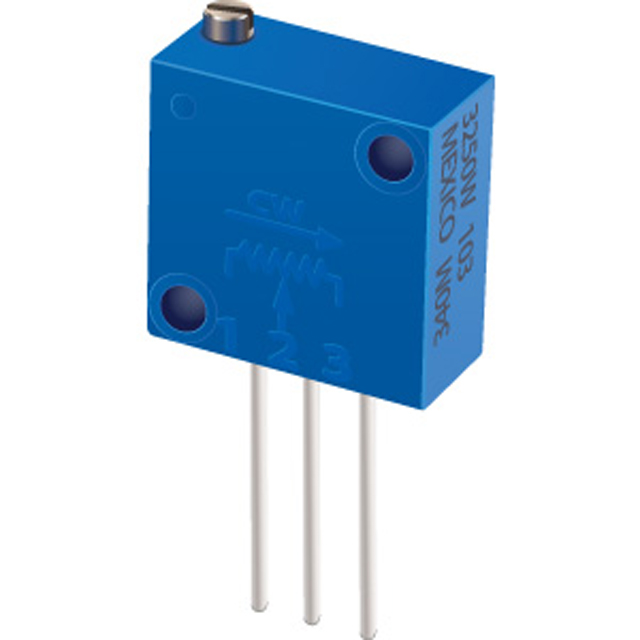

Bourns Inc. 3250P-1-500	Chassis Mount	1 W	PC Pins	12.7 mm	0.5 "	5.59 mm	0.22 in	5 %	50 Ohms	Wirewound	25	50 ppm/░C	Side Adjustment
Bourns Inc. 3250P-1-203	Chassis Mount	1 W	PC Pins	12.7 mm	0.5 "	5.59 mm	0.22 in	5 %	20 kOhms	Wirewound	25	50 ppm/░C	Side Adjustment
Bourns Inc. 3250P-1-102	Chassis Mount	1 W	PC Pins	12.7 mm	0.5 "	5.59 mm	0.22 in	5 %	1000 Ohms	Wirewound	25	50 ppm/░C	Side Adjustment
Bourns Inc. 3250P-1-202	Chassis Mount	1 W	PC Pins	12.7 mm	0.5 "	5.59 mm	0.22 in	5 %	2 kOhms	Wirewound	25	50 ppm/░C	Side Adjustment
Bourns Inc. 3250P-1-301	Chassis Mount	1 W	PC Pins	12.7 mm	0.5 "	5.59 mm	0.22 in	5 %	300 Ohms	Wirewound	25	50 ppm/░C	Side Adjustment
Bourns Inc. 3250P-1-100	Chassis Mount	1 W	PC Pins	12.7 mm	0.5 "	5.59 mm	0.22 in	5 %	10 Ohms	Wirewound	25	50 ppm/░C	Side Adjustment
Bourns Inc. 3250P-1-503	Chassis Mount	1 W	PC Pins	12.7 mm	0.5 "	5.59 mm	0.22 in	5 %	50000 Ohms	Wirewound	25	50 ppm/░C	Side Adjustment
