1121A Series
Manufacturer: Belden Inc.
Beta
⌘K

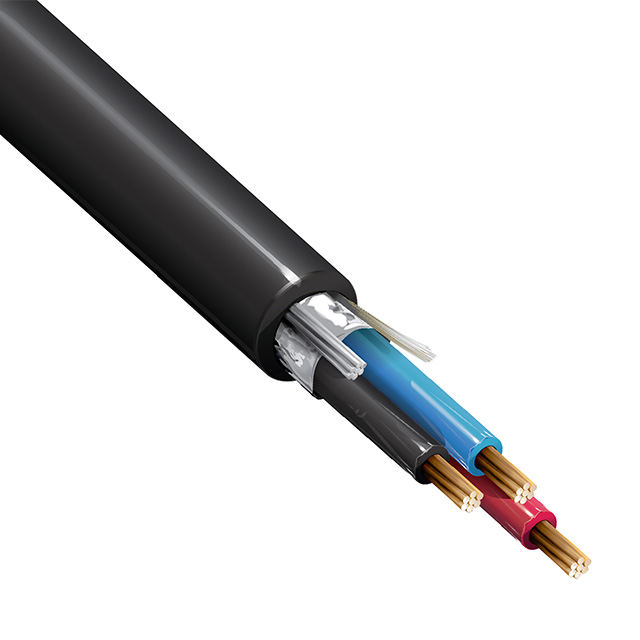

CABLE 3 COND 18AWG BLACK
| Part | Shield Coverage | Shield Material | Length | Length | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Features | Conductor Material | Conductor Insulation | Conductor Insulation | Conductor Insulation | Number of Conductors | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 3048 m | 10000 ft | Poly-Vinyl Chloride (PVC) | Black | 1.194 mm | 0.047 in | 18 AWG | Multi-Conductor | 26 AWG | 7 | Drain Wire Rip Cord | Copper Bare | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 3 | Foil |
Belden Inc. | 100 % | Aluminum | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Black | 1.194 mm | 0.047 in | 18 AWG | Multi-Conductor | 26 AWG | 7 | Drain Wire Rip Cord | Copper Bare | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 3 | Foil |
