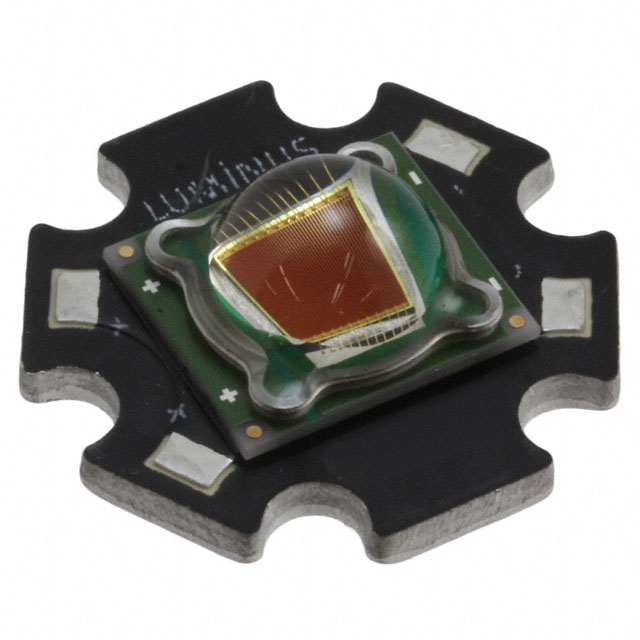

SSR-90 Series
Manufacturer: Luminus Devices Inc.
Beta
⌘K

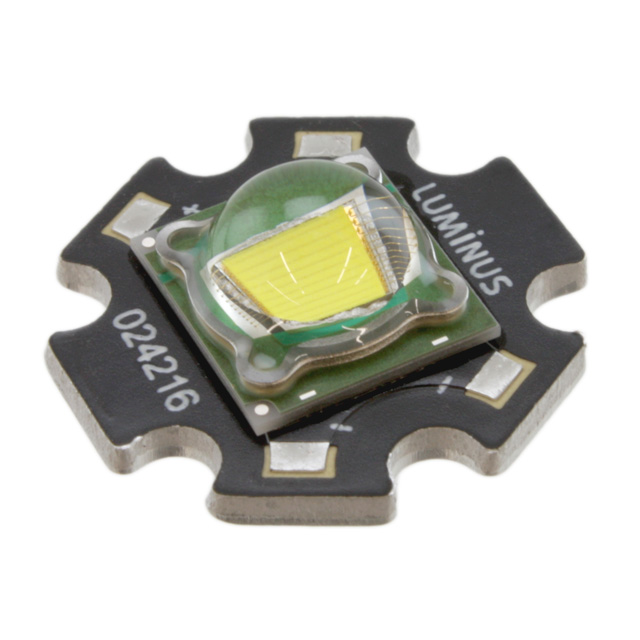

LED MOD SSR-90 WH STARBRD 6500K
| Part | Size / Dimension [x] | Size / Dimension [y] | Light Emitting Surface (LES) [diameter] | Lumens/Watt @ Current - Test | Height [z] | Current - Test | Voltage - Forward (Vf) (Typ) | Color | Lens Type | Current - Max [Max] | Temperature - Test | CRI (Color Rendering Index) | Type | CCT (K) | Viewing Angle | Configuration | Luminous Flux @ Current/Temperature | Size / Dimension [diameter] | Light Emitting Surface (LES) [x] | Light Emitting Surface (LES) [y] | Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luminus Devices Inc. | 19.9 mm | 19.9 mm | 8 mm | 95 lm/W | 7.1 mm | 3.15 A | 3.25 V | Cool White | Domed | 9 A | 25 °C | 70 | LED Module | 6500 K | 100 ° | Starboard | 975 lm | ||||
 Luminus Devices Inc. | 103 lm/W | 7.1 mm | 3.15 A | 2.1 V | Red | Domed | 18 A | 25 °C | LED Module | Starboard | 540 lm | 19.9 mm | 3 mm | 3 mm | 619 nm | ||||||
Luminus Devices Inc. | 19.9 mm | 19.9 mm | 8 mm | 90 lm/W | 7.1 mm | 3.15 A | 3.25 V | Cool White | Domed | 9 A | 25 °C | 70 | LED Module | 5700 K | 100 ° | Starboard | 925 lm | ||||

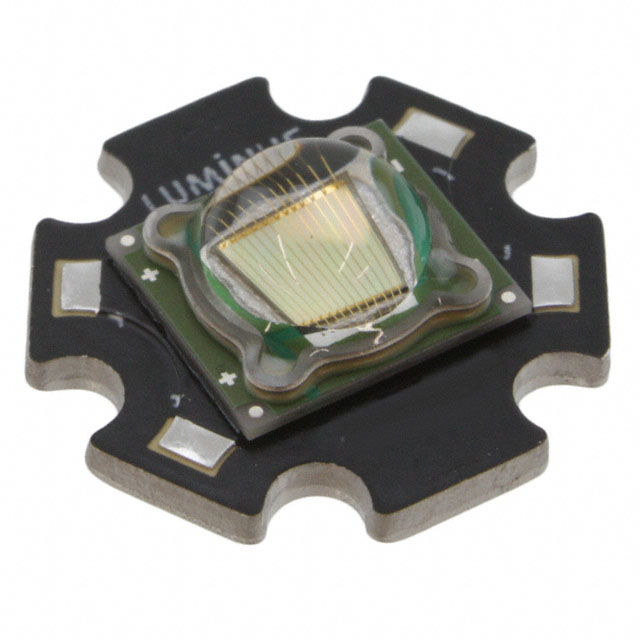

 Luminus Devices Inc. | 19.9 mm | 19.9 mm | 8 mm | 7.1 mm | 3.15 A | 3.4 V | Green | Domed | 27 A | LED Module | 100 ° | Starboard | 537 nm |
