19307240 Series
Manufacturer: HARTING
Beta
⌘K

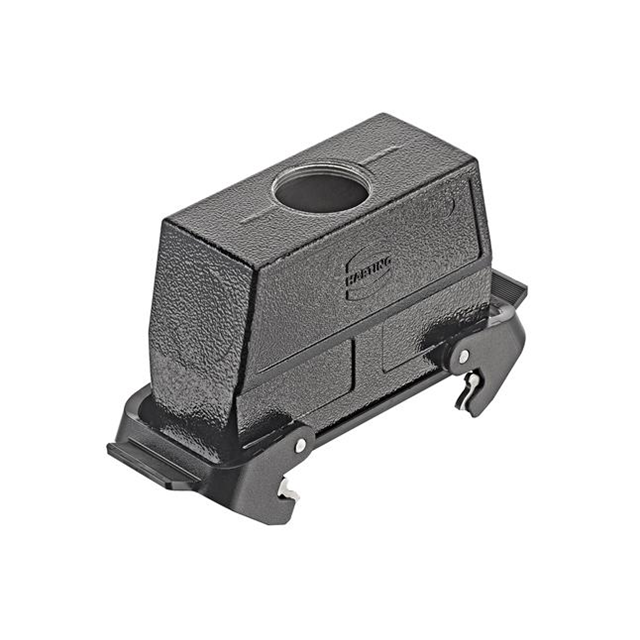

24B HOOD TOP ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, M32 - BLACK
| Part | Thread Size | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Ingress Protection | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Housing Color | Housing Material | Size | Lock Location | Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | M32 | Hood | 125 °C | -40 C | Powder Coated | IP65 - Dust Tight Water Resistant | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Black | Aluminum Die Cast | 24 B | Locking Clip (2) on Base Bottom | Top Entry | |

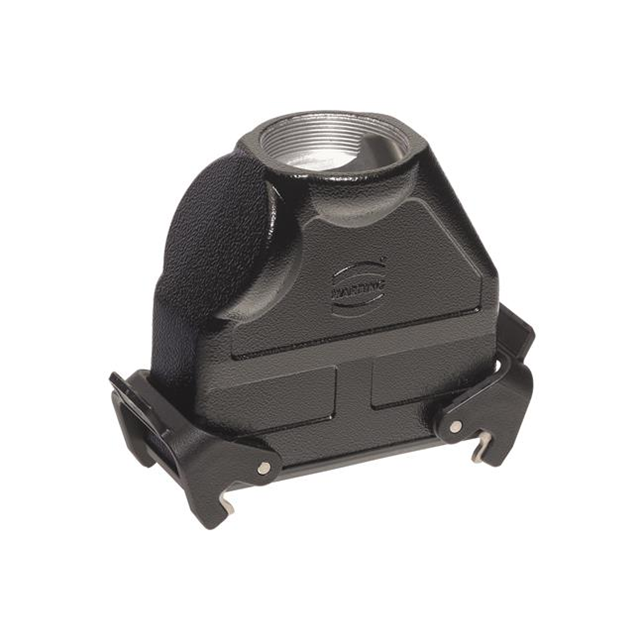

 HARTING | M50 | Hood - Coupling | 125 °C | -40 C | Powder Coated | IP65 - Dust Tight Water Resistant | 43 mm | 112 mm | 4.409 in | 120 mm | 4.724 in | 1.693 " | Black | Aluminum Die Cast | 24 B | Locking Clip (2) on Hood Top | Bottom Entry Top or Bottom Entry | Cable to Cable |
 HARTING | ||||||||||||||||||
 HARTING | M32 | Hood - Coupling | 125 °C | -40 C | Powder Coated | IP65 - Dust Tight Water Resistant | 43 mm | 78.4 mm | 3.087 " | 120 mm | 4.724 in | 1.693 " | Black | Aluminum Die Cast | 24 B | Locking Clip (2) on Hood Top | Bottom Entry Top or Bottom Entry | Cable to Cable |
