895-102 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 102POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Flange Feature	Contact Type	Card Type	Contact Material	Color	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Positions	Read Out	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Pitch	Pitch	Gender	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 895-102-559-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Right Angle Through Hole	0.1 "	2.54 mm	Female	51

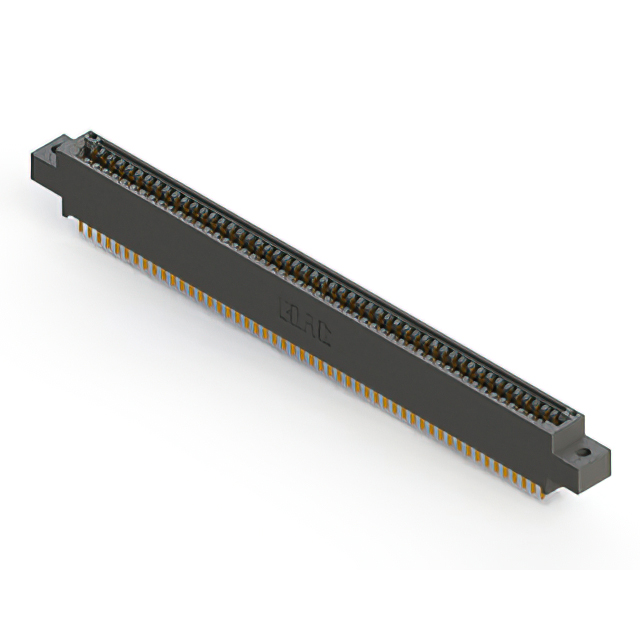

EDAC Inc. 895-102-521-802	Polyphenylene Sulfide (PPS)	2		Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Through Hole	0.1 "	2.54 mm	Female	51	3.25 mm	0.128 "
EDAC Inc. 895-102-560-812	Polyphenylene Sulfide (PPS)	2	Side Mount Opening Unthreaded	Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Board Edge Straddle Mount	0.1 "	2.54 mm	Female	51	3.25 mm	0.128 "	Card Extender
EDAC Inc. 895-102-541-507	Polyphenylene Sulfide (PPS)	2	M3 Threaded Insert Top Mount Opening	Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Through Hole	0.1 "	2.54 mm	Female	51
EDAC Inc. 895-102-558-508	Polyphenylene Sulfide (PPS)	2	4-40 Threaded Insert Top Mount Opening	Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Right Angle Through Hole	0.1 "	2.54 mm	Female	51

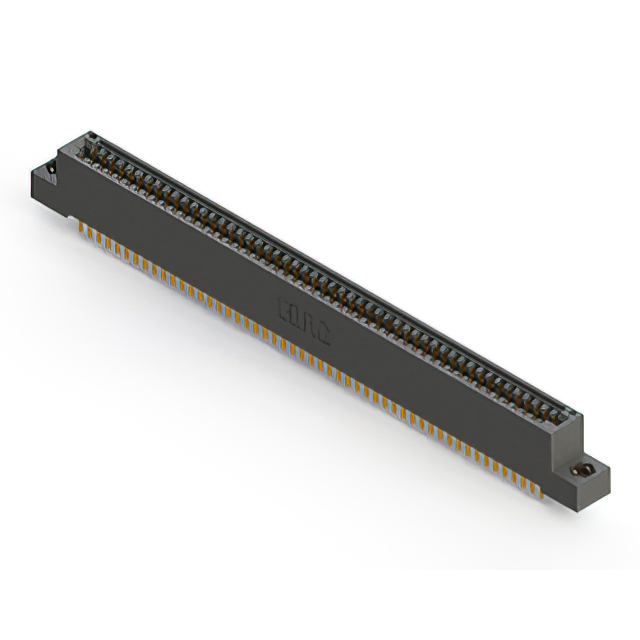

EDAC Inc. 895-102-521-208	Polyphenylene Sulfide (PPS)	2	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Through Hole	0.1 "	2.54 mm	Female	51
EDAC Inc. 895-102-540-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Through Hole	0.1 "	2.54 mm	Female	51

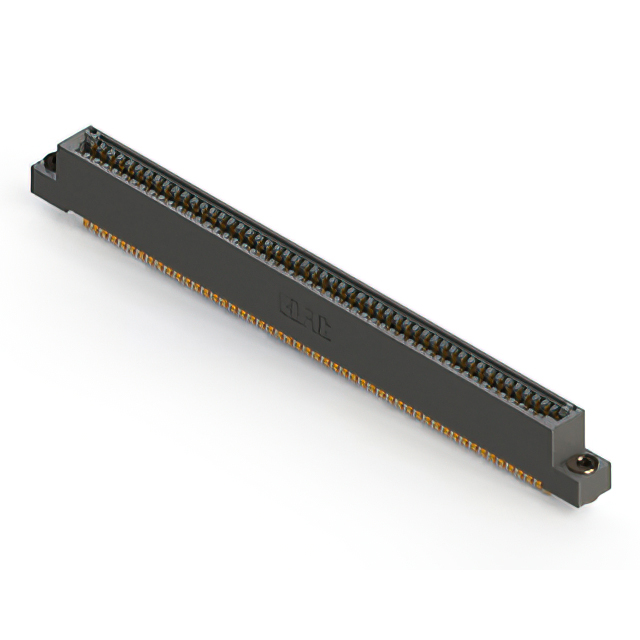

EDAC Inc. 895-102-555-203	Polyphenylene Sulfide (PPS)	2	Floating Bobbin Flush Mount	Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Board Edge Straddle Mount	0.1 "	2.54 mm	Female	51	2.95 mm	0.116 "	Card Extender
EDAC Inc. 895-102-558-507	Polyphenylene Sulfide (PPS)	2	M3 Threaded Insert Top Mount Opening	Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Right Angle Through Hole	0.1 "	2.54 mm	Female	51

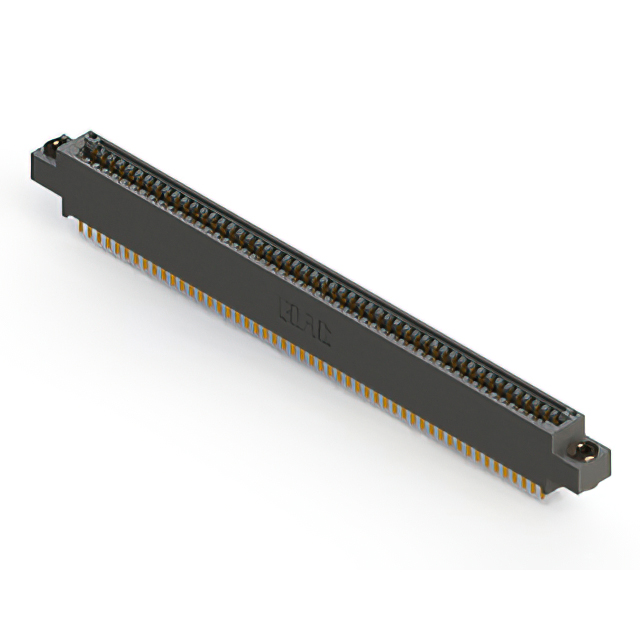

EDAC Inc. 895-102-521-803	Polyphenylene Sulfide (PPS)	2	Floating Bobbin Top Mount Opening	Cantilever	Non Specified - Dual Edge	Copper Alloy	Black	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	102	Dual	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Through Hole	0.1 "	2.54 mm	Female	51	2.95 mm	0.116 "
