XLG-75 Series

Catalog

75W CONSTANT POWER MODE LED DRIV

Part	Mounting Type	Number of Outputs	Approval Agency	Topology	Voltage - Input (Min) [Min]	Ratings	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Features	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Power (Watts)	Termination Style	Efficiency	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Current - Output (Max)
MEAN WELL USA Inc. XLG-75-H-A	Chassis Mount	1	CB CCC CE cURus EAC ENEC RCM	AC DC Converter	100 VAC	IP67	305 VAC	2.48 in	63 mm	125 mm	1.26 "	32 mm	4.92 in	OCP OTP OVP SCP	4.2 kV	1.4 A	56 V	27 V	75 W	Wire Leads	90 %	Constant Current	90 °C	-40 C
MEAN WELL USA Inc. XLG-75-24-A	Chassis Mount	1	CB CCC CE cURus EAC ENEC RCM	AC DC Converter	100 VAC	IP67	305 VAC	2.48 in	63 mm	125 mm	1.26 "	32 mm	4.92 in	OCP OTP OVP SCP	4.2 kV	3.1 A				Wire Leads	90 %	Constant Current	90 °C	-40 C	24 V

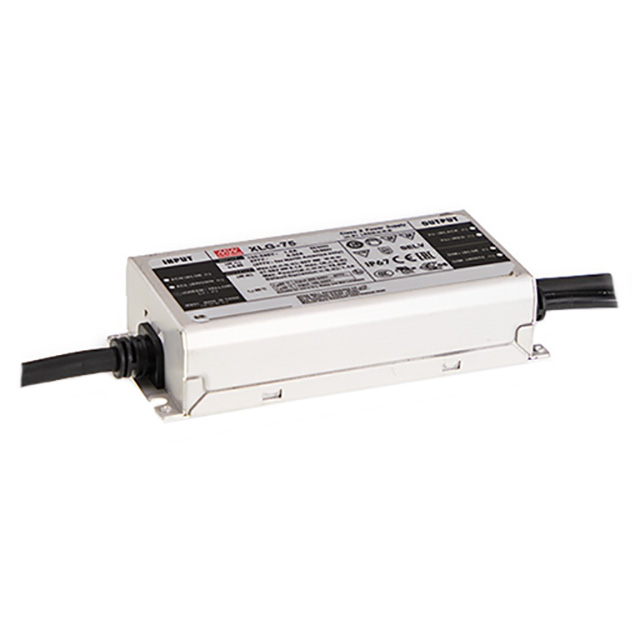

MEAN WELL USA Inc. XLG-75-12-A	Chassis Mount	1	CB CCC CE cURus EAC ENEC RCM	AC DC Converter	100 VAC	IP67	305 VAC	2.48 in	63 mm	125 mm	1.26 "	32 mm	4.92 in	OCP OTP OVP SCP	4.2 kV				60 W	Wire Leads	89 %	Constant Current	90 °C	-40 C	12 V	5 A
