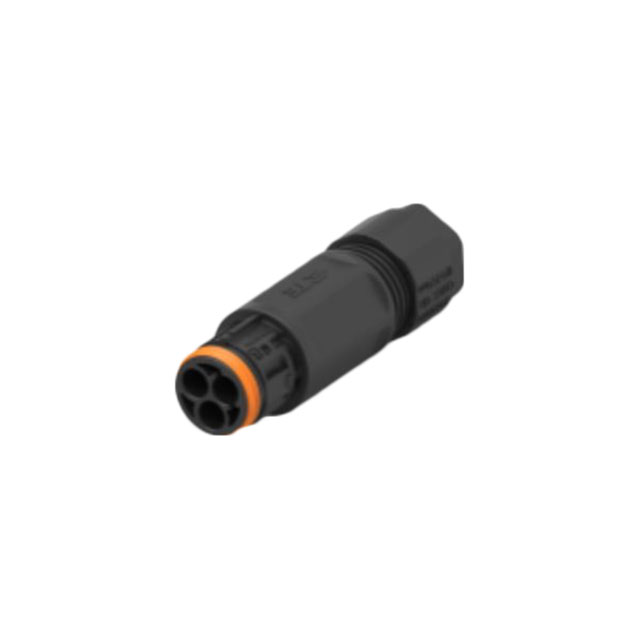

2379238 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
NECTOR T IN-LINE PIN ASSY + BACK
| Part | Color | Applications | Termination | Voltage Rating | Number of Positions | Connector Type | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Features | Current Rating (Amps) | Primary Material | Contact Material | Material Flammability Rating | Shielding | Shell Material | Shell Material | Cable Opening [custom] | Mounting Type | Orientation | Insert Material | Ingress Protection | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | Lighting | Screw | 600 VAC | 3 | Male Pins Receptacle | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | 85 °C | -40 °C | Latch Lock Push-Pull | Backshell | 20 A | Plastic | Copper Alloy | UL94 V-0 | Unshielded | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | 0.276 in 0.394 in 7 mm 10 mm | Free Hanging (In-Line) | A | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | IP67/IP68 - Dust Tight Waterproof | ||||
TE Connectivity Raychem Cable Protection | Black | Lighting | Screw | 600 VAC | 3 | Male Pins Receptacle | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | 85 °C | -40 °C | Latch Lock Push-Pull | Backshell | 20 A 25 A | Plastic | Copper Alloy | UL94 HF-1 UL94 V-0 | Unshielded | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | Free Hanging (In-Line) | B | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | IP67/IP68 - Dust Tight Waterproof | 0.413 in | 10.5 mm | 15 mm | 0.591 in |
