02K249 Series
Manufacturer: Rosenberger
Beta
⌘K

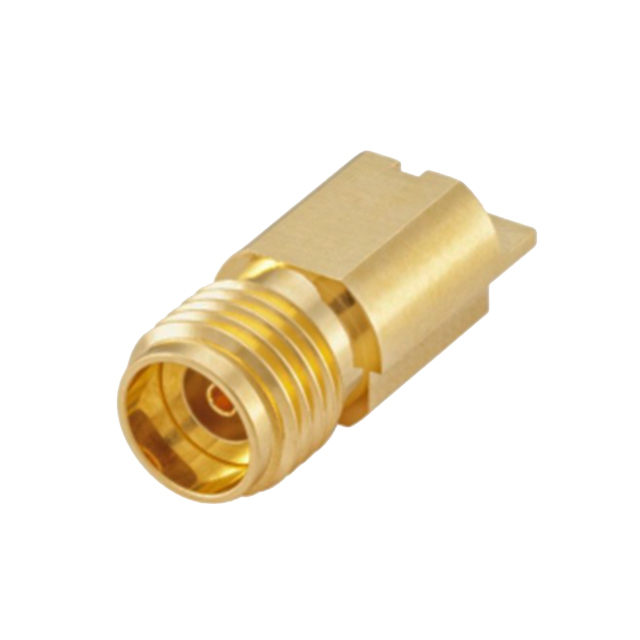

CONN RPC2.92 JCK ST 50OHM EDGEMT
| Part | Center Contact Plating | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Voltage Rating | Body Material | Dielectric Material | Number of Ports | Center Contact Material | Housing Color | Frequency - Max [Max] | Fastening Type | Mounting Type | Contact Termination | Impedance | Connector Type | Shield Termination | Connector Style [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | 500 | 85 °C | -40 C | Gold | 250 V | Brass | Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE) | 1 | Beryllium Copper | Gold | 40 GHz | Threaded | Board Edge Cutout Surface Mount | Solder | 50 Ohms | Female Socket Jack | Solder | 2.92 mm |
