TPS61120 Series
Manufacturer: Texas Instruments
Beta
⌘K
ADJUSTABLE, 95% EFFICIENT BOOST CONVERTER WITH 200-MA LDO FOR 1-CELL LIION OR DUAL-CELL APPLICATIONS
| Part | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Current - Supply | Applications | Supplier Device Package | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [x] | Package / Case [y] | Board Type | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Outputs and Type | Main Purpose | Voltage - Output | Current - Output | Utilized IC / Part | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 10 µA | Handheld/Mobile Devices | 16-QFN (4x4) | 16-VQFN Exposed Pad | 85 °C | -40 °C | |||||||||||||
 Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 10 µA | Handheld/Mobile Devices | 16-QFN (4x4) | 16-VQFN Exposed Pad | 85 °C | -40 °C | |||||||||||||
 Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 10 µA | Handheld/Mobile Devices | 16-TSSOP | 16-TSSOP | 85 °C | -40 °C | 0.173 in | 4.4 mm | |||||||||||

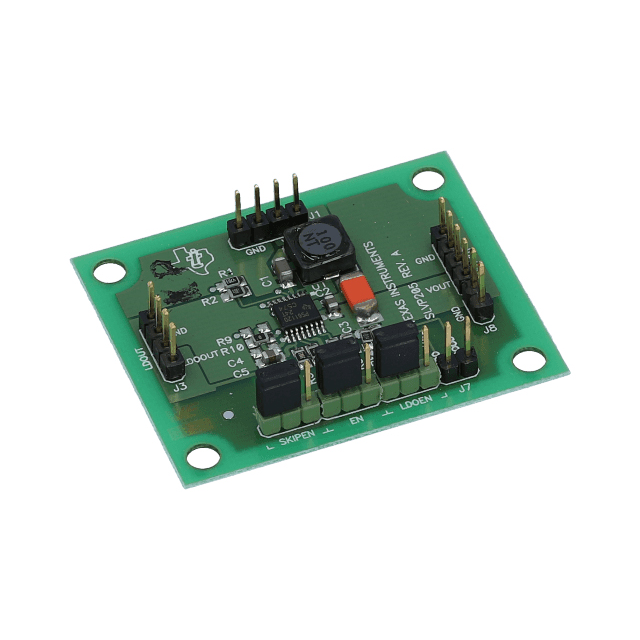

 Texas Instruments | Fully Populated | Boost | 1.8 V | 5.5 V | 2 | Non-Isolated | DC/DC Step Up with LDO | 1.5 V 3.3 V | 200 mA 250 mA | TPS61120 | Board(s) | |||||||||||
Texas Instruments | Surface Mount | 1.8 V | 5.5 V | 10 µA | Handheld/Mobile Devices | 16-TSSOP | 16-TSSOP | 85 °C | -40 °C | 0.173 in | 4.4 mm |
