AMPLIMITE HDF Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

1658611-3 - 15 POS HDF PLUG, AP ROHS COMPLIANT: YES

Part	Connector Style	Features	Number of Positions	Connector Type	Current Rating (Amps)	Material Flammability Rating	Contact Type	Shell Size, Connector Layout	Flange Feature	Flange Feature	Number of Rows [custom]	Mounting Type	Termination	Contact Finish	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	For Use With/Related Products	Thread Size	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Contact Finish Thickness

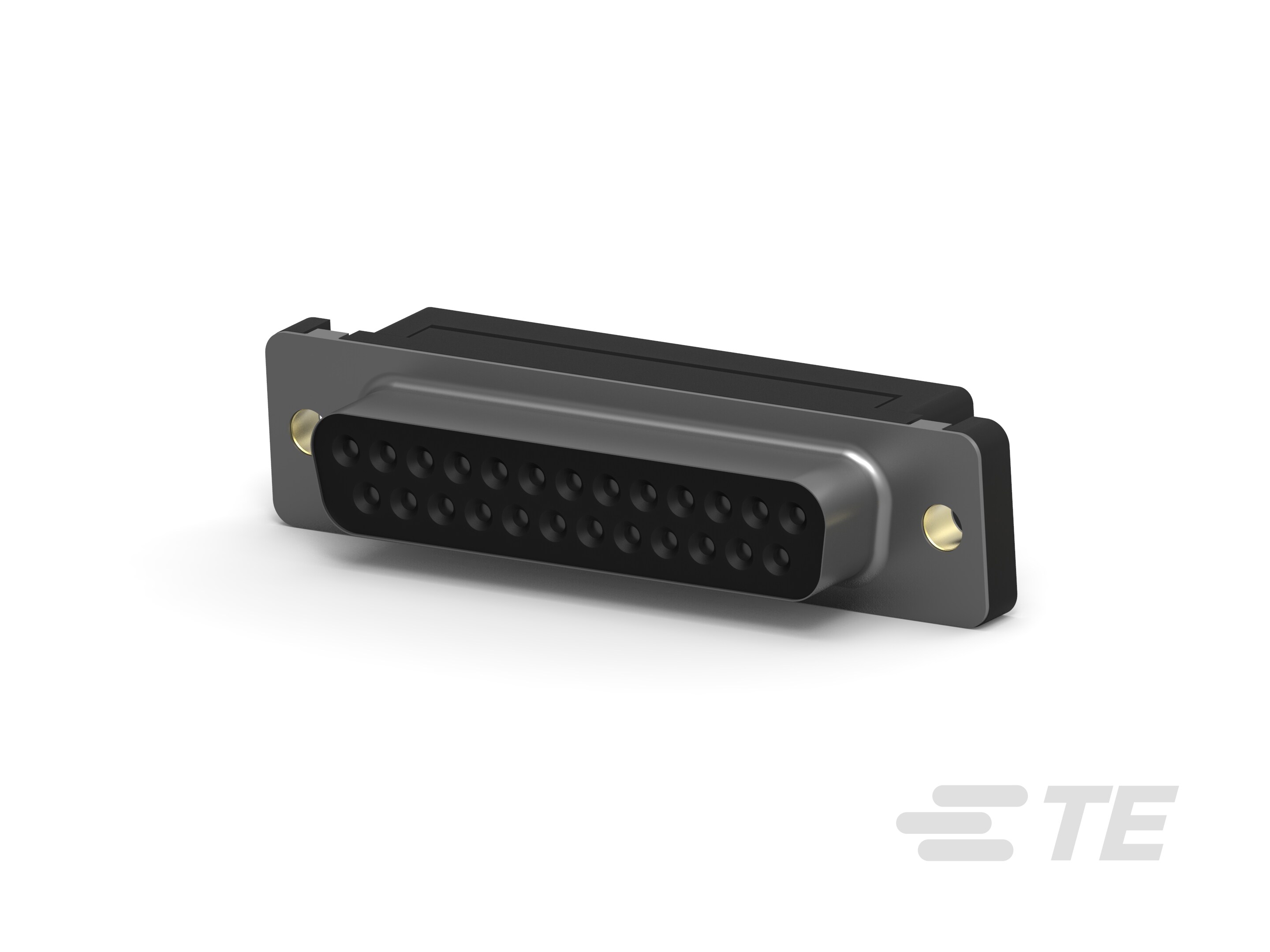

TE Connectivity AMP Connectors 1658611-3	D-Sub	Feed Through	15	Plug Male Pins	1.25 A	UL94 V-0	Signal	2	Housing/Shell	4-40	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold
TE Connectivity AMP Connectors 5746881-2		Clip													Jackscrew Slotted	0.3 in	7.62 mm	AMPLIMITE Series HDE AMPLIMITE Series HDP	4-40

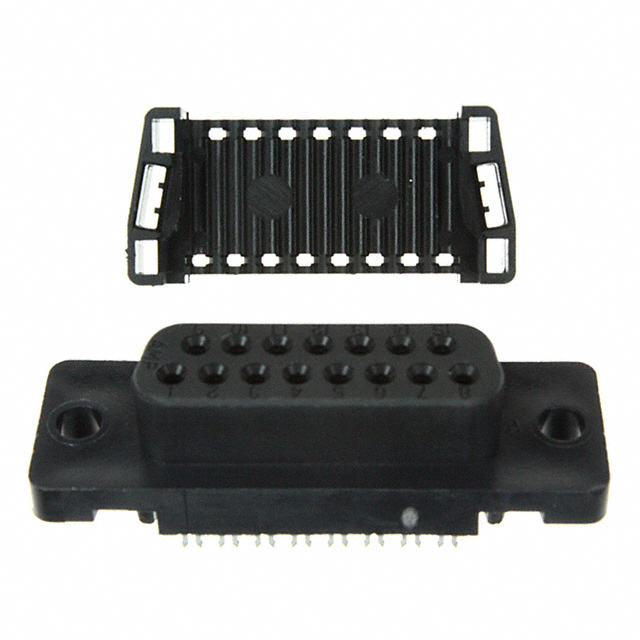

TE Connectivity AMP Connectors 1658614-3	D-Sub	Feed Through	15	Receptacle Female Sockets	1.25 A	UL94 V-0	Signal	2	Housing/Shell (Unthreaded)		2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						Thermoplastic	Phosphor Bronze	-55 C	105 ░C	Black	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 747275-2			25												Strain Relief			AMPLIMITE Series HDF-20 Ribbon Cable Connectors
TE Connectivity AMP Connectors 1658610-4	D-Sub	Feed Through	9	Receptacle Female Sockets	1.25 A	UL94 V-0	Signal		Housing/Shell	4-40	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold														30 Áin	0.76 Ám	1	DE E
TE Connectivity AMP Connectors 1658610-2	D-Sub	Feed Through	25	Receptacle Female Sockets	1.25 A	UL94 V-0	Signal		Housing/Shell	4-40	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						Thermoplastic	Phosphor Bronze	-55 C	105 ░C	Black	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám			B DB	3
TE Connectivity AMP Connectors 5746861-4	D-Sub	Feed Through	9	Receptacle Female Sockets	1.25 A	UL94 V-0	Signal		Housing/Shell	4-40	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold														30 Áin	0.76 Ám	1	DE E
TE Connectivity AMP Connectors 5746862-4	D-Sub	Feed Through Grounding Indents	9	Plug Male Pins	1.25 A		Signal		Housing/Shell	4-40	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						Thermoplastic		-55 C	105 ░C	Black						1	DE E			Flash
TE Connectivity AMP Connectors 1658609-3	D-Sub	Feed Through	15	Receptacle Female Sockets	1.25 A	UL94 V-0	Signal	2	Housing/Shell	4-40	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold														30 Áin	0.76 Ám

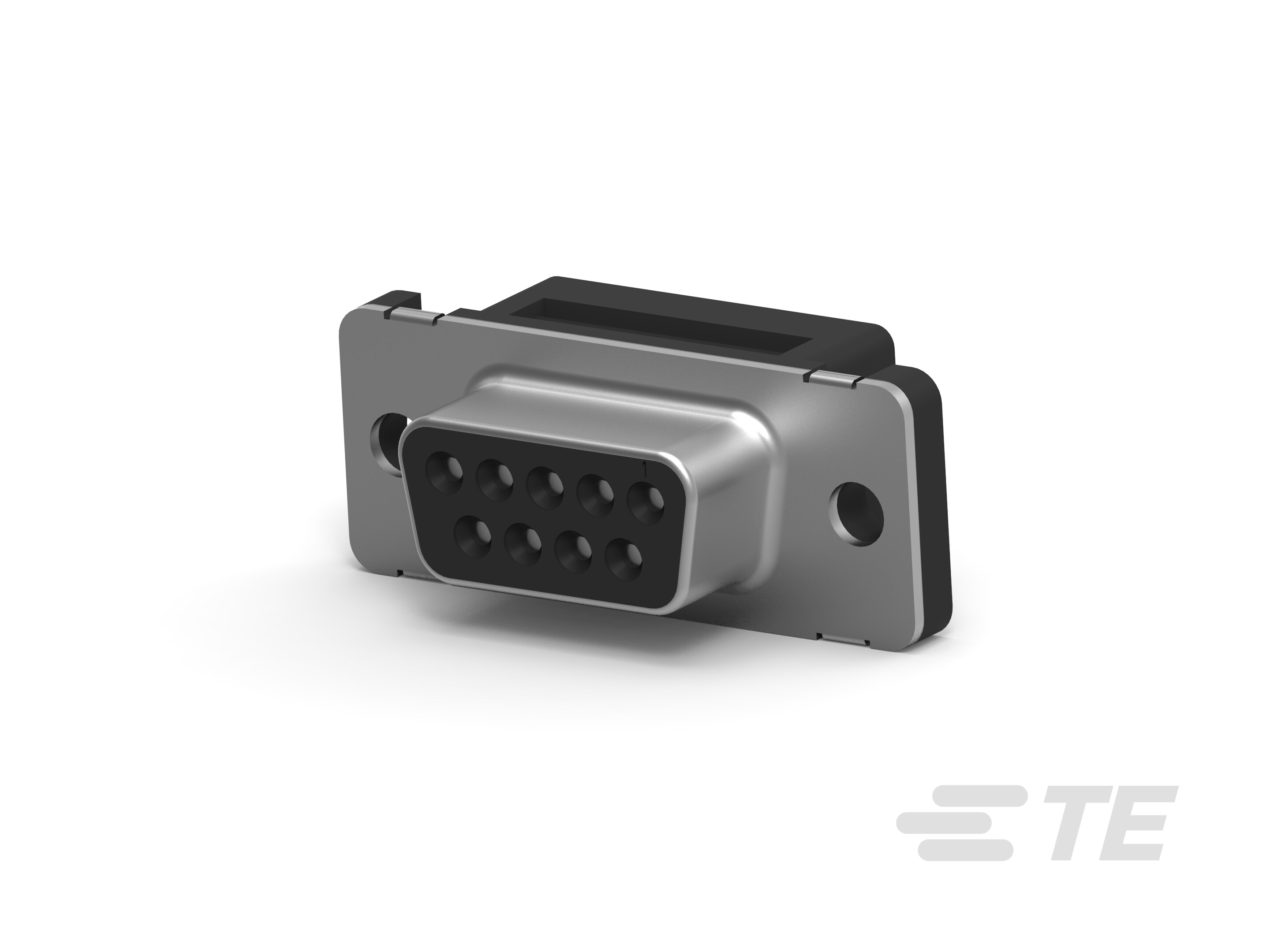

TE Connectivity AMP Connectors 1658612-4	D-Sub	Feed Through	9	Receptacle Female Sockets	1.25 A	UL94 V-0	Signal		Housing/Shell (Unthreaded)		2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						Thermoplastic	Phosphor Bronze	-55 C	105 ░C	Black	28 AWG	Stranded or Solid	26 AWG	30 Áin	0.76 Ám	1	DE E
