QBL4208 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

BRUSHLESS DC MOTORS SQUARE 24V 3.47A 4000R/MIN 0.125 1SHAFT 480G.CM²

Part	Weight	Weight	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Power - Rated	Voltage - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Length - Shaft and Bearing	Length - Shaft and Bearing	RPM	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Motor Type	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Function	Encoder Type	Weight [custom]	Weight [custom]

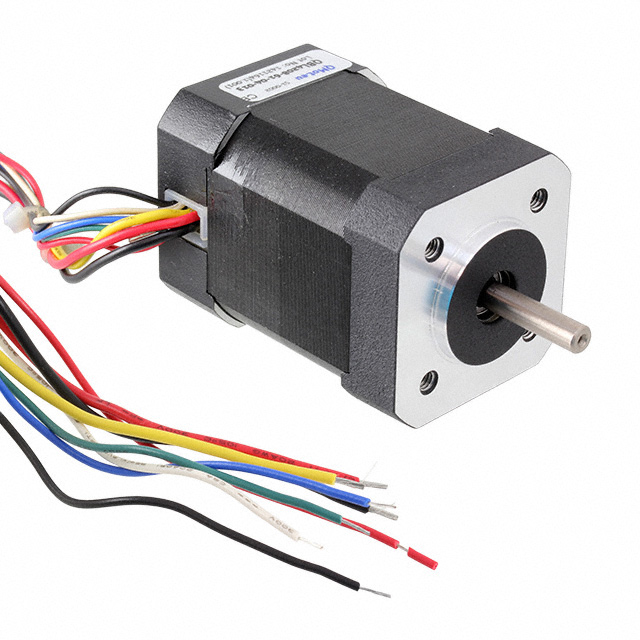

Analog Devices Inc./Maxim Integrated QBL4208-61-04-013	450 g	0.984 lb	380 mNm	53.82 oz-in	Wire Leads	-20 ░C	40 °C	52.4 W	24 VDC	0.197 in	5 mm	36 mm	1.417 in	0.866 "	22 mm	4000 RPM	1.654 in	42 mm	1.654 in	42 mm	DC Motor	Brushless (BLDC)	17.7 oz-in	125 mNm	Standard

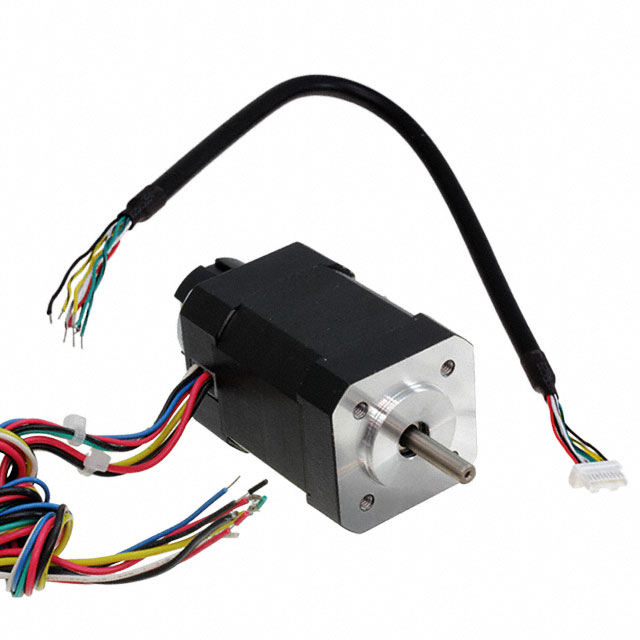

Analog Devices Inc./Maxim Integrated QBL4208-61-04-013-1K			380 mNm	53.82 oz-in	Wire Leads	-20 ░C	40 °C		24 VDC	0.197 in	5 mm	36 mm	1.417 in	0.866 "	22 mm	4000 RPM	1.654 in	42 mm	1.654 in	42 mm	DC Motor	Brushless (BLDC)	18.41 oz-in	130 mNm	Standard	Incremental

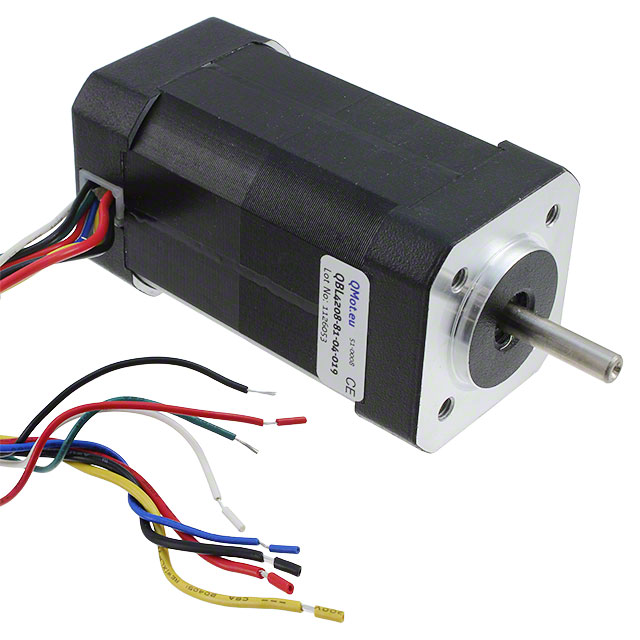

Analog Devices Inc./Maxim Integrated QBL4208-81-04-019			560 mNm	79.31 oz-in	Wire Leads	-20 ░C	40 °C	77.5 W	24 VDC	0.197 in	5 mm	36 mm	1.417 in	0.866 "	22 mm	4000 RPM	1.654 in	42 mm	1.654 in	42 mm	DC Motor	Brushless (BLDC)	26.2 oz-in	185 mNm	Standard		680.4 g	1.5 lbs

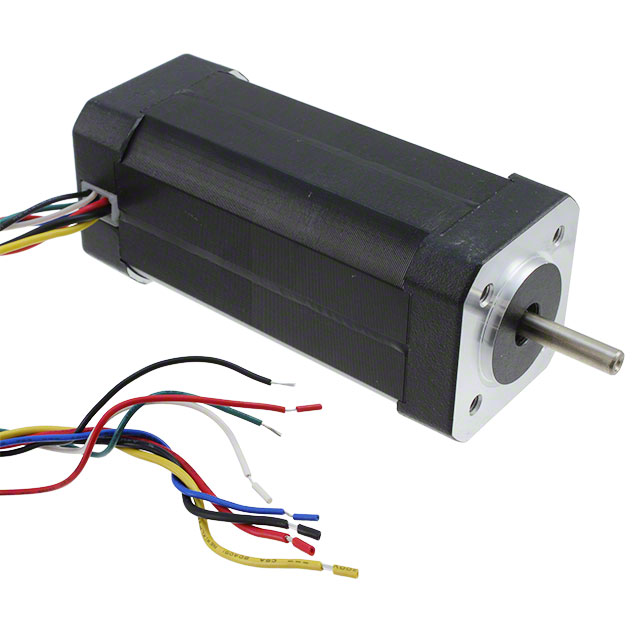

Analog Devices Inc./Maxim Integrated QBL4208-100-04-025	816.5 g	1.8 lbs	750 mNm	106.2 oz-in	Wire Leads	-20 ░C	40 °C		24 VDC	0.197 in	5 mm	36 mm	1.417 in	0.866 "	22 mm	4000 RPM	1.654 in	42 mm	1.654 in	42 mm	DC Motor	Brushless (BLDC)	35.4 oz-in	250 mNm	Standard

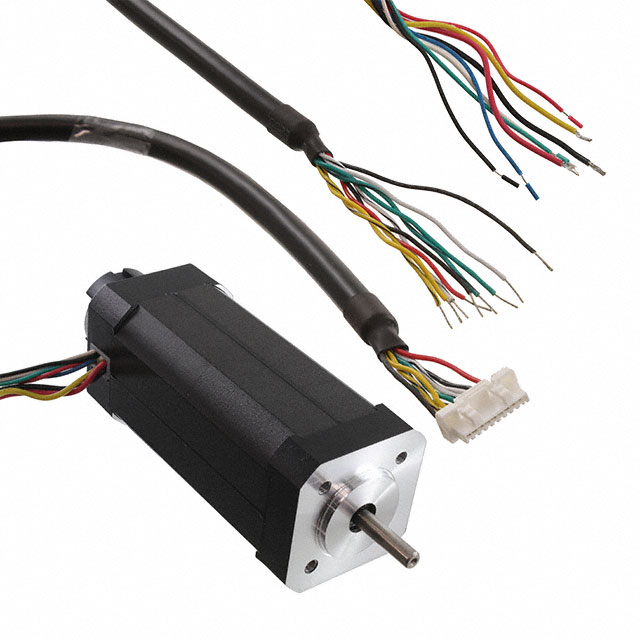

Analog Devices Inc./Maxim Integrated QBL4208-100-04-025-1K			750 mNm	106.2 oz-in	Wire Leads	-20 ░C	40 °C		24 VDC	0.197 in	5 mm	36 mm	1.417 in	0.866 "	22 mm	4000 RPM	1.654 in	42 mm	1.654 in	42 mm	DC Motor	Brushless (BLDC)	35.4 oz-in	250 mNm	Standard	Incremental

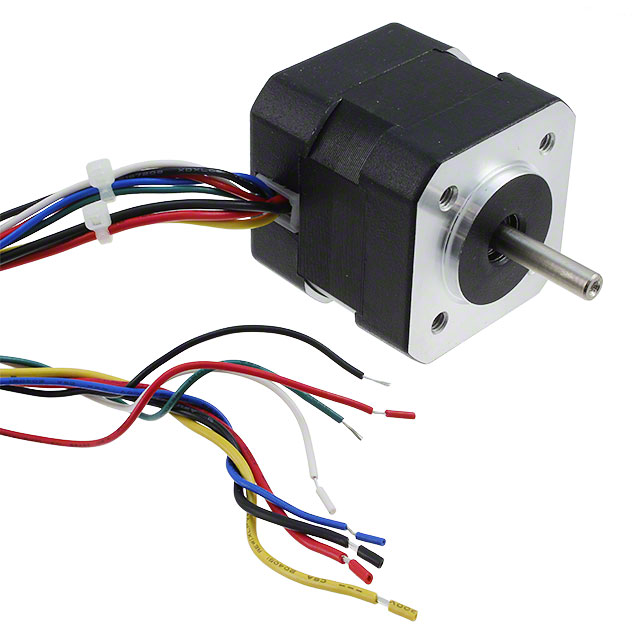

Analog Devices Inc./Maxim Integrated QBL4208-41-04-006			190 mNm	26.91 oz-in	Wire Leads	-20 ░C	40 °C	26.2 W	24 VDC	0.197 in	5 mm	36 mm	1.417 in	0.866 "	22 mm	4000 RPM	1.654 in	42 mm	1.654 in	42 mm	DC Motor	Brushless (BLDC)			Standard		300.28 g	0.662 lb
