CPV364 Series

Catalog

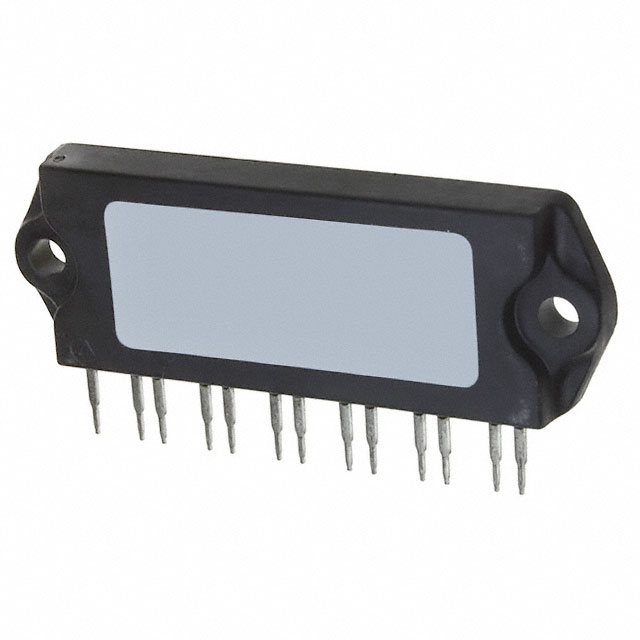

IGBT MODULE 600V 24A 63W IMS-2

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	Mounting Type	Input	Input Capacitance (Cies) @ Vce	Supplier Device Package	Package / Case	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	NTC Thermistor	Configuration	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	Current - Collector (Ic) (Max)
Vishay General Semiconductor - Diodes Division VS-CPV364M4KPBF	-55 °C	150 °C	250 µA	Through Hole	Standard	1.6 nF	IMS-2	19-SIP (13 Leads) IMS-2	63 W	600 V		Three Phase Inverter	1.8 V	24 A
Vishay General Semiconductor - Diodes Division VS-CPV364M4UPBF	-40 °C	150 °C	250 µA	Through Hole	Standard	2.1 nF	IMS-2	19-SIP (13 Leads) IMS-2	63 W	600 V			2.1 V		20 A
