Q5-2X-1/4 Series

Manufacturer: Qualtek

Catalog

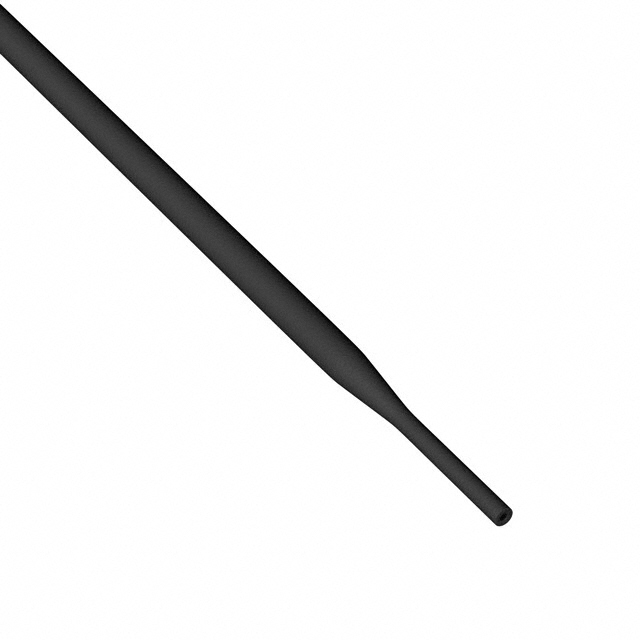

HEATSHRINK 1/4" X 4' BLACK 1=1PC

Part	Length [x]	Length [x]	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Material	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life Start
Qualtek Q5-2X-1/4-01-QB48IN-25	4 ft	1.22 m	60 Months	40 °C	14 °F	-50 °F	40 °C	0.125 in	3.18 mm	-45 °C	125 °C	Adhesive Lined Self Extinguishing	Black	1	2	100 °C	0.76 mm	0.03 in	Polyolefin (PO)	Tubing Flexible	0.25 "	6.35 mm
Qualtek Q5-2X-1/4-01-SS100M	328.1 ft	100 m	60 Months	40 °C	14 °F	-50 °F	40 °C	0.125 in	3.18 mm	-45 °C	125 °C	Adhesive Lined Self Extinguishing	Black	1	2	100 °C	0.76 mm	0.03 in	Polyolefin (PO)	Tubing Flexible	0.25 "	6.35 mm	Date of Manufacture
