68783 Series

Catalog

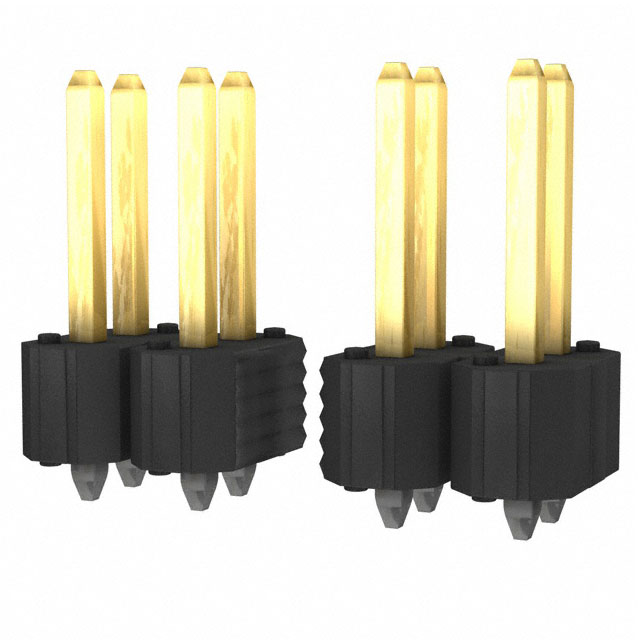

CONN HEADER VERT 72POS 2.54MM

Part	Termination	Contact Shape	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Mounting Type	Fastening Type	Number of Positions	Contact Finish - Mating	Insulation Height	Insulation Height	Shrouding	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Insulation Color	Contact Type	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Contact Material	Overall Contact Length	Overall Contact Length	Number of Positions
Amphenol ICC (FCI) 68783-272HLF	Solder	Square	2	15 µin	0.38 µm	Header	0.045 in	1.14 mm	Through Hole	Push-Pull	72	Gold or Gold GXT™	0.1 in	2.54 mm	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	UL94 V-0	Black	Male Pin	0.23 in	5.84 mm	All	Phosphor Bronze	0.375 in	9.53 mm
Amphenol ICC (FCI) 68783-116HLF	Solder	Square	2	30 Áin	0.76 Ám	Header	0.045 in	1.14 mm	Through Hole	Push-Pull		Gold or Gold GXT™	0.1 in	2.54 mm	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	UL94 V-0	Black	Male Pin	0.23 in	5.84 mm	All	Phosphor Bronze	0.375 in	9.53 mm	16
Amphenol ICC (FCI) 68783-172	Solder	Square	2	30 Áin	0.76 Ám	Header	0.045 in	1.14 mm	Through Hole	Push-Pull	72	Gold or Gold GXT™	0.1 in	2.54 mm	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	UL94 V-0	Black	Male Pin	0.23 in	5.84 mm	All	Phosphor Bronze	0.375 in	9.53 mm
