5919-9503 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
COAX ADAPT SMA TO SMA
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Material | Dielectric Material | Adapter Type | Convert From (Adapter End) | Adapter Series | Frequency - Max [Max] | Center Gender | Convert To (Adapter End) | Center Contact Plating | Impedance | Style | Conversion Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | -65 ░C | 165 °C | 500 | Beryllium Copper Brass | Polytetrafluoroethylene (PTFE) | Plug to Plug | Male Pin SMA Plug | SMA to SMA | 18 GHz | Male to Male | SMA Plug Male Pin | Gold | 50 Ohms | Right Angle | Same Series | Free Hanging (In-Line) Right Angle |

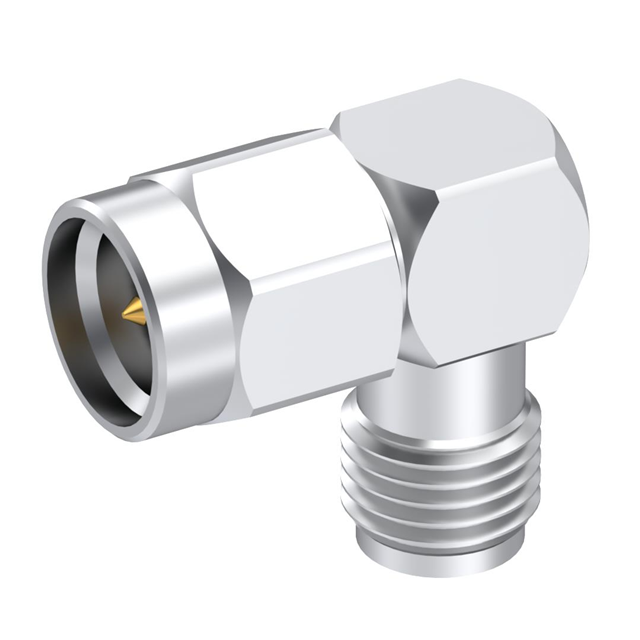

 Radiall USA, Inc. | Stainless Steel | 500 | Beryllium Copper Brass | Polytetrafluoroethylene (PTFE) | Plug to Jack | Male Pin SMA Plug | SMA to SMA | 18 GHz | SMA Jack Female Socket | Gold | 50 Ohms | Right Angle | Same Series | Free Hanging (In-Line) Right Angle | |||

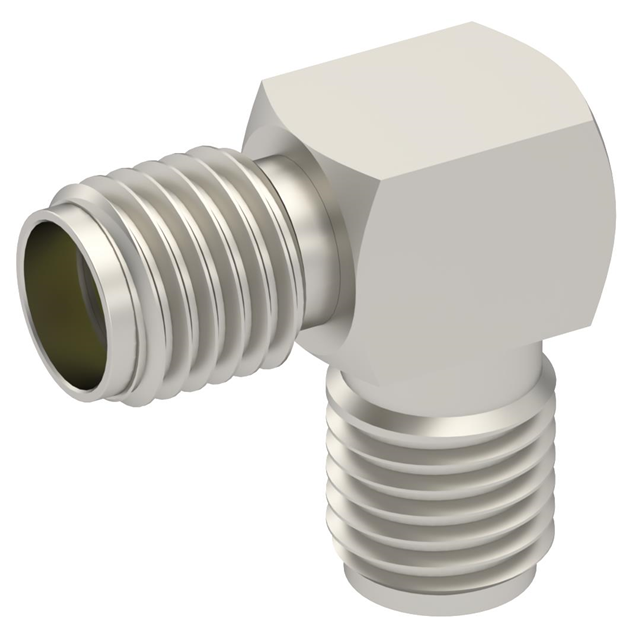

 Radiall USA, Inc. | Stainless Steel | 500 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Jack to Jack | Female Socket SMA Jack | SMA to SMA | 18 GHz | Female to Female | SMA Jack Female Socket | Gold | 50 Ohms | Right Angle | Same Series | Free Hanging (In-Line) Right Angle |
