ZFS-8500 Series

Catalog

LED STRIP, 5 M, 300 LEDS, WARM WHITE, 12 VDC, 21.6 W, NOT RATED

Part	Current - Test	Configuration	Voltage - Forward (Vf) (Typ)	Lens Type	Current - Max [Max]	Lumens/Watt @ Current - Test	Temperature - Test	CCT (K)	Luminous Flux @ Current/Temperature	Height [z]	Viewing Angle	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Color	Type

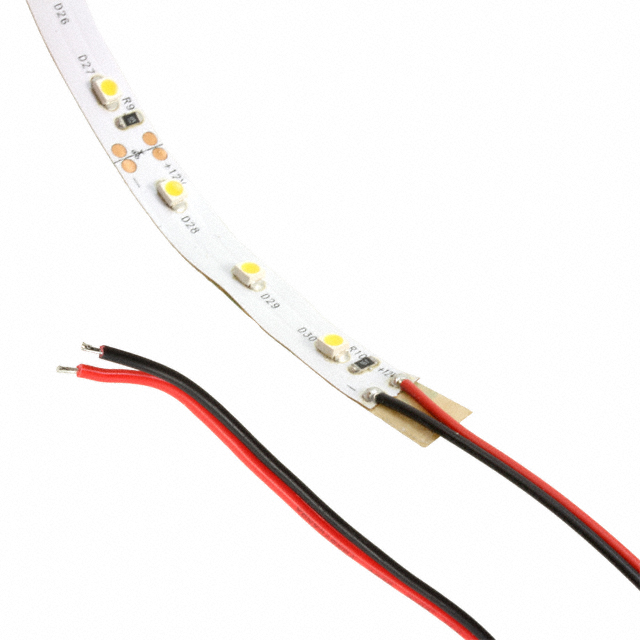

JKL Components Corp. ZFS-8500-WW	1.8 A	Linear Light Strip Flexible	12 V	Flat	1.8 A	43 lm/W	25 °C	3050 K	936 lm	2.43 mm	120 °	50.00mm L per Segment	8 mm	5000 mm	Warm White	LED Engine

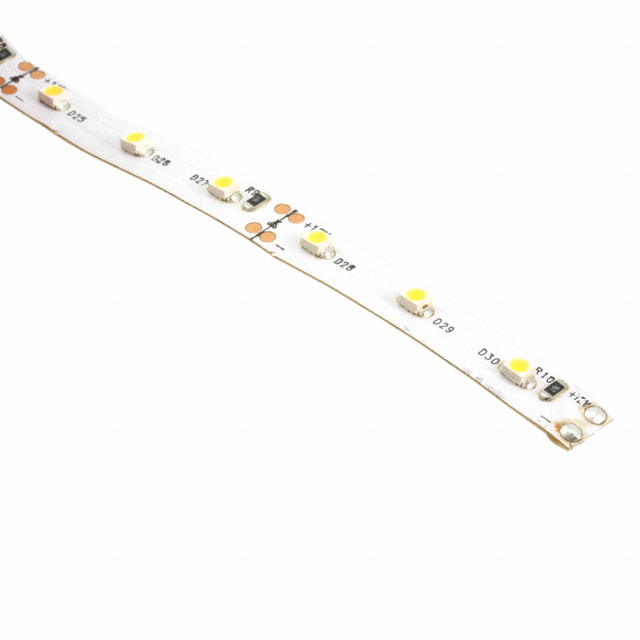

JKL Components Corp. ZFS-8500-WW/SEC	1.8 A	Linear Light Strip Flexible	12 V	Flat	1.8 A	43 lm/W	25 °C	3050 K	936 lm	2.43 mm	120 °		8 mm	500 mm	Warm White	LED Engine
JKL Components Corp. ZFS-8500-CW/SEC	1.8 A	Linear Light Strip Flexible	12 V	Flat	1.8 A		25 °C	6000 K	1092 lm	2.43 mm	120 °		8 mm	500 mm	Cool White	LED Engine
JKL Components Corp. ZFS-8500-CW	1.8 A	Linear Light Strip Flexible	12 V	Flat	1.8 A		25 °C	6000 K	1092 lm	2.43 mm	120 °	50.00mm L per Segment	8 mm	5000 mm	Cool White	LED Engine

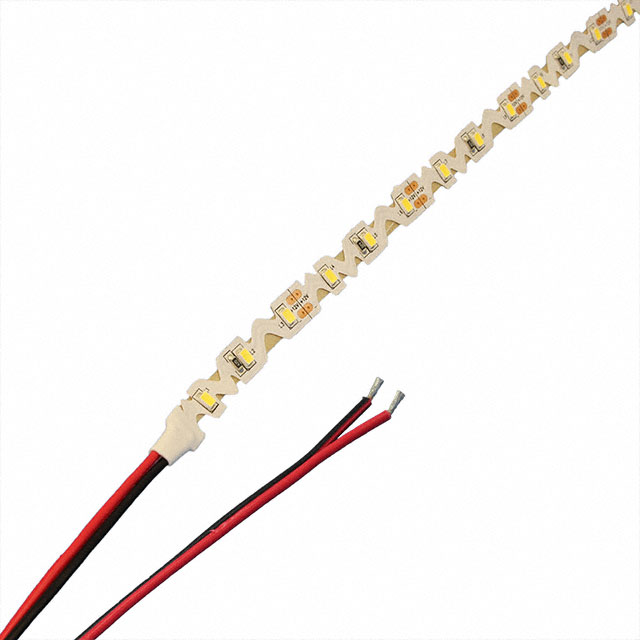

JKL Components Corp. ZFS-8500BND-CW	5 A	Linear Light Strip Flexible	12 V	Flat	5 A	79 lm/W		6000 K	4760 lm		120 °		8.64 mm	101.6 mm	Cool White	LED Engine
