PPL18W Series

Catalog

DESKTOP AC ADAPTERS 19.2W 24V 0.8A C8 INPUT 2.1X5.5

Part	Applications	Output Connector [x]	Output Connector [diameter]	Output Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Efficiency	Current - Output (Max) [Max]	Cord Length	Cord Length	Approval Agency	Voltage - Output	Region Utilized	Polarization	Standard Number	Input Connector	Power (Watts)	Form	Operating Temperature [Max]

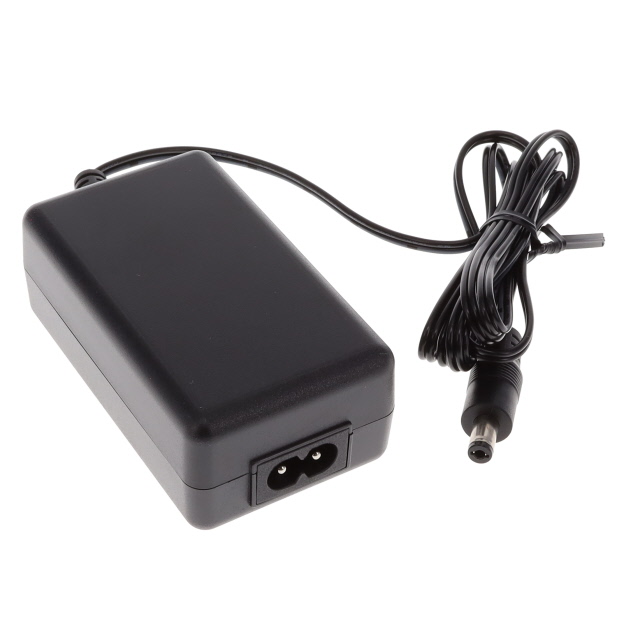

Phihong USA PPL18W-240	ITE (Commercial)	10 mm	2.1 mm 5.5 mm	Barrel Plug	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	Cord (Sold Separately)	264 VAC	90 VAC	75 mW	CoC Tier 2 Level VI	0.8 A	1.5 m	59 in	cULus IEC	24 V	International	Positive Center	62368-1	IEC 320-C8	19 W	Desktop (Class II)	40 °C

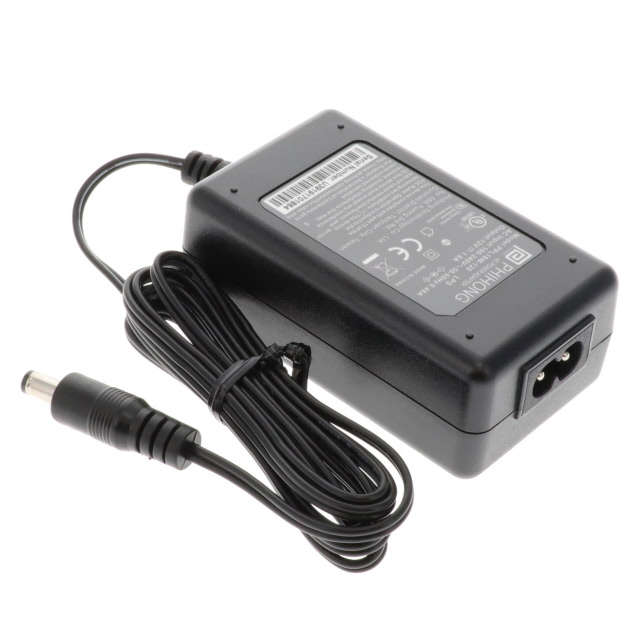

Phihong USA PPL18W-120	ITE (Commercial)	10 mm	2.1 mm 5.5 mm	Barrel Plug	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	Cord (Sold Separately)	264 VAC	90 VAC	75 mW	CoC Tier 2 Level VI	1.6 A	1.5 m	59 in	cULus IEC	12 V	International	Positive Center	62368-1	IEC 320-C8	19 W	Desktop (Class II)	40 °C

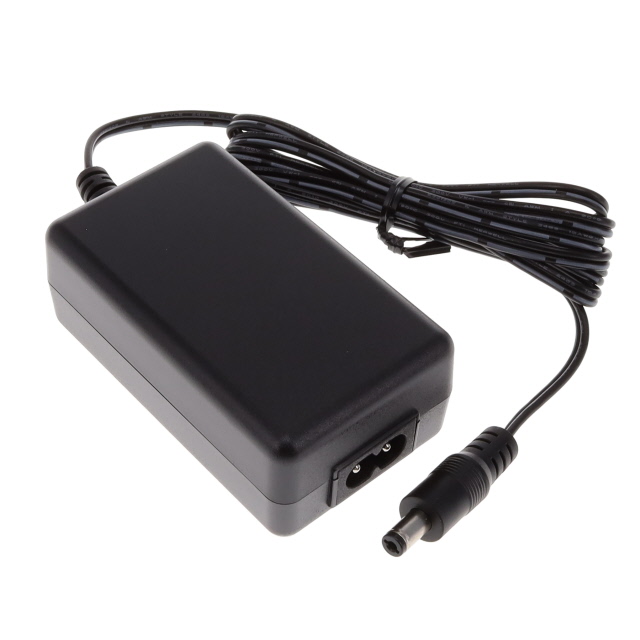

Phihong USA PPL18W-090	ITE (Commercial)	10 mm	2.1 mm 5.5 mm	Barrel Plug	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	Cord (Sold Separately)	264 VAC	90 VAC	75 mW	CoC Tier 2 Level VI	2.2 A	1.5 m	59 in	cULus IEC	9 V	International	Positive Center	62368-1	IEC 320-C8	20 W	Desktop (Class II)	40 °C

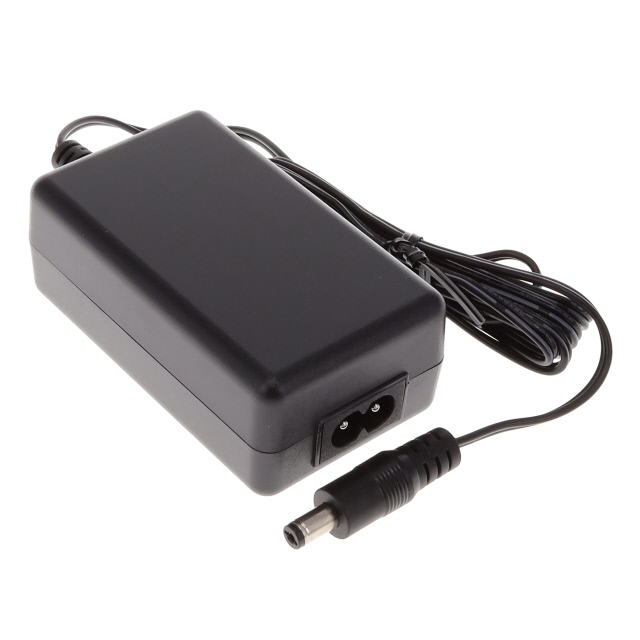

Phihong USA PPL18W-150	ITE (Commercial)	10 mm	2.1 mm 5.5 mm	Barrel Plug	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	Cord (Sold Separately)	264 VAC	90 VAC	75 mW	CoC Tier 2 Level VI	1.3 A	1.5 m	59 in	cULus IEC	15 V	International	Positive Center	62368-1	IEC 320-C8	20 W	Desktop (Class II)	40 °C

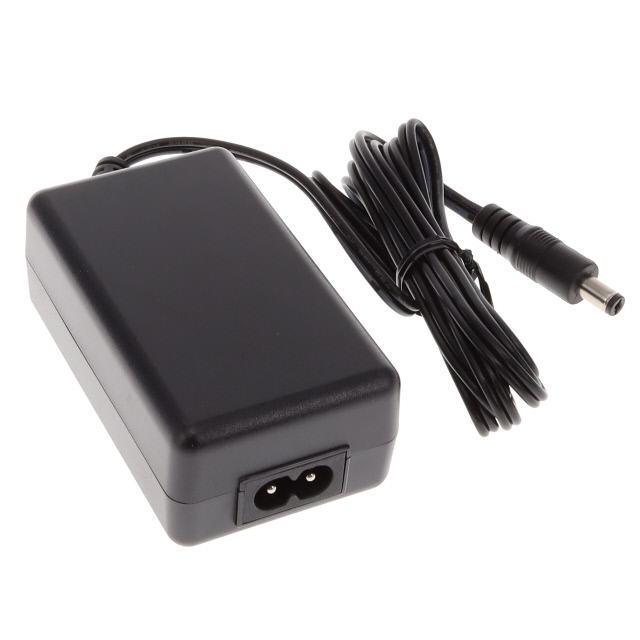

Phihong USA PPL18W-050L6	ITE (Commercial)	10 mm	2.1 mm 5.5 mm	Barrel Plug	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	Cord (Sold Separately)	264 VAC	90 VAC	100 mW	Level VI	3 A	1.5 m	59 in	cULus IEC	5 V	International	Positive Center	62368-1	IEC 320-C8	15 W	Desktop (Class II)	40 °C

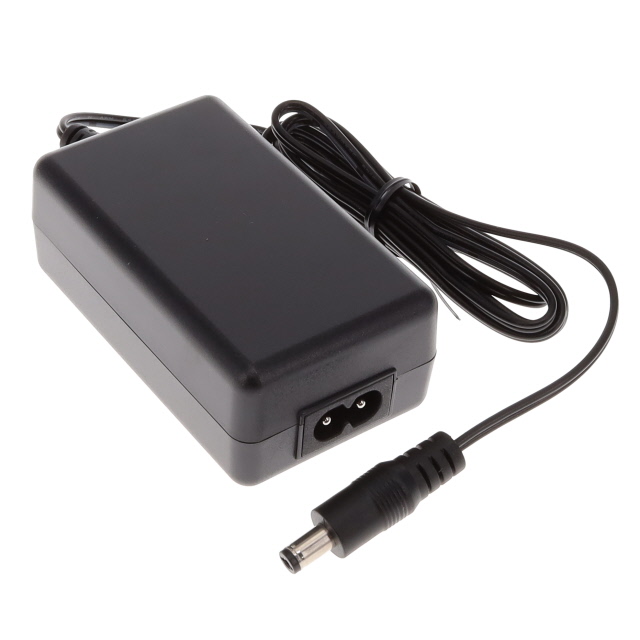

Phihong USA PPL18W-180	ITE (Commercial)	10 mm	2.1 mm 5.5 mm	Barrel Plug	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	Cord (Sold Separately)	264 VAC	90 VAC	75 mW	CoC Tier 2 Level VI		1.5 m	59 in	cULus IEC	18 V	International	Positive Center	62368-1	IEC 320-C8	20 W	Desktop (Class II)	40 °C
