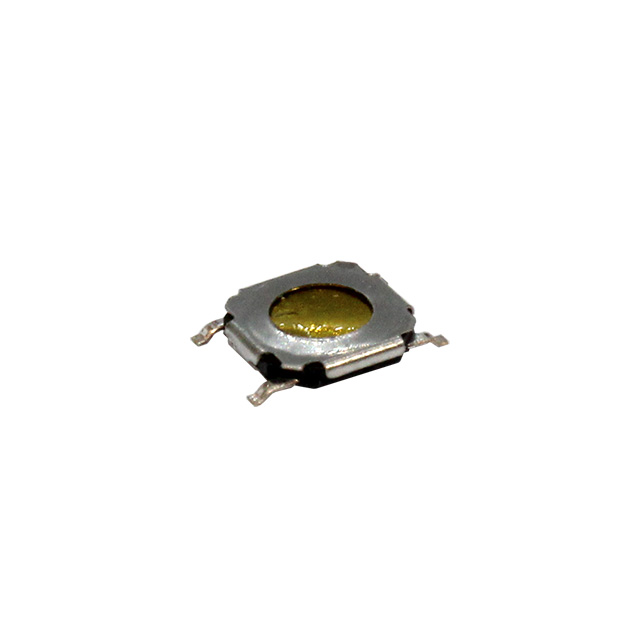

CS1204 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Contact Rating @ Voltage | Actuator Height off PCB, Vertical [z] | Termination Style | Mounting Type | Circuit | Switch Function | Outline [x] | Outline [y] | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Orientation | Illumination | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Brass Nickel Plated | 0.25 mm | 0.05 A 50 VDC | 0.8 mm | Gull Wing | Surface Mount | SPST-NO | Off-Mom | 5.2 mm | 5.2 mm | 160 gf | 85 °C | -40 C | Top Actuated | Non-Illuminated | Flush |
