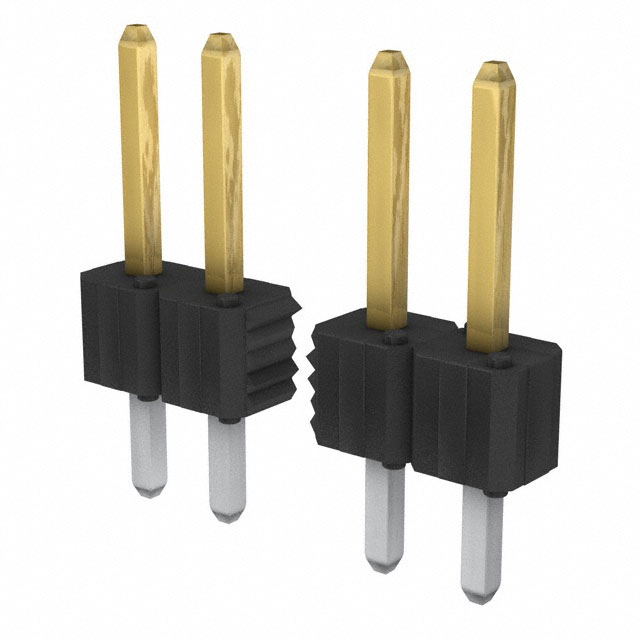

68001 Series

Catalog

CONN HEADER VERT 4POS 2.54MM

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish - Mating	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Current Rating (Amps)	Connector Type	Number of Positions	Contact Material	Contact Length - Mating [x]	Contact Length - Mating	Material Flammability Rating	Insulation Color	Contact Shape	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Post

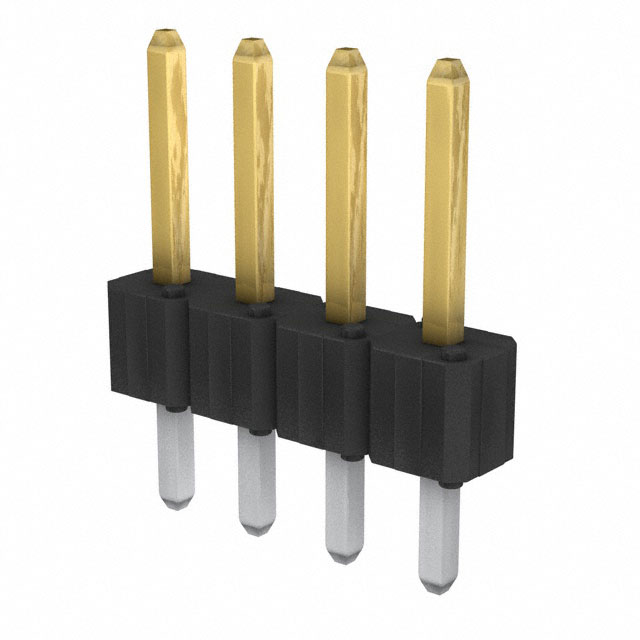

Amphenol ICC (FCI) 68001-204	125 °C	-65 ░C	Solder	Gold or Gold GXT™	Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	15 µin	0.38 µm	Push-Pull	3 A	Header	4	Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm

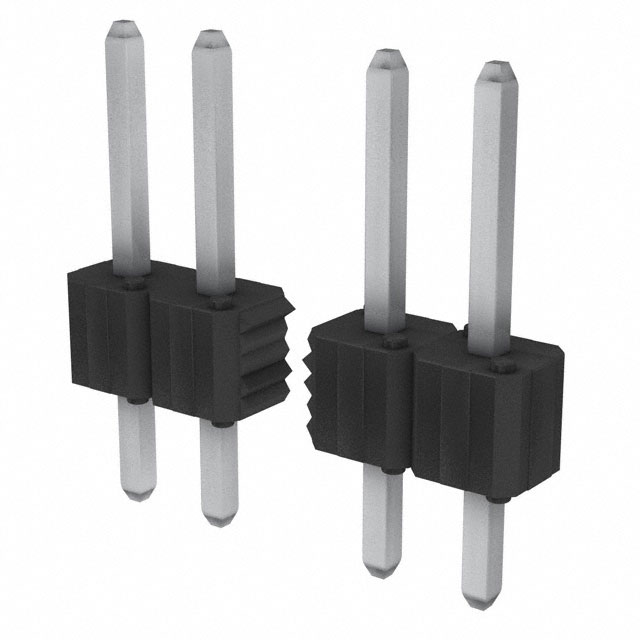

Amphenol ICC (FCI) 68001-425HLF	125 °C	-65 ░C	Solder		Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	100 çin	2.54 çm	Push-Pull	3 A	Header		Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm	Tin
Amphenol ICC (FCI) 68001-412HLF	125 °C	-65 ░C	Solder		Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	100 çin	2.54 çm	Push-Pull	3 A	Header	12	Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm	Tin

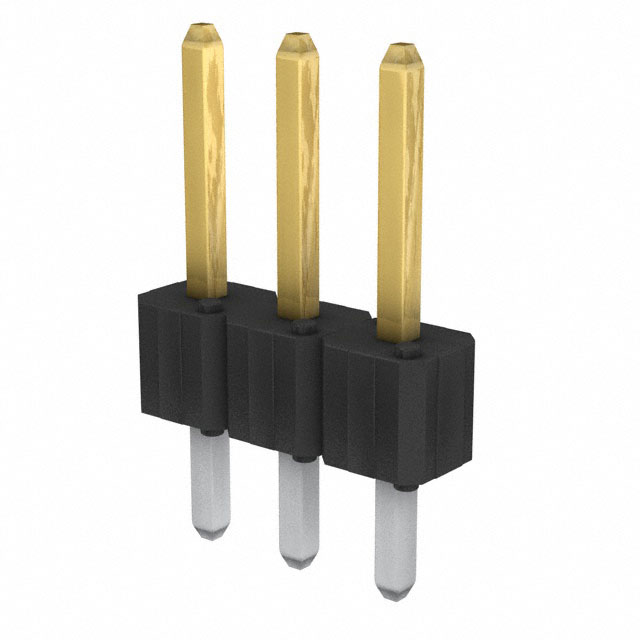

Amphenol ICC (FCI) 68001-203HLF	125 °C	-65 ░C	Solder	Gold or Gold GXT™	Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	15 µin	0.38 µm	Push-Pull	3 A	Header		Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm
Amphenol ICC (FCI) 68001-411HLF	125 °C	-65 ░C	Solder		Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	100 çin	2.54 çm	Push-Pull	3 A	Header	11	Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm	Tin
Amphenol ICC (FCI) 68001-233HLF	125 °C	-65 ░C	Solder	Gold or Gold GXT™	Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	15 µin	0.38 µm	Push-Pull	3 A	Header	33	Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm
Amphenol ICC (FCI) 68001-130HLF	125 °C	-65 ░C	Solder	Gold or Gold GXT™	Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	30 Áin	0.76 Ám	Push-Pull	3 A	Header	30	Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm

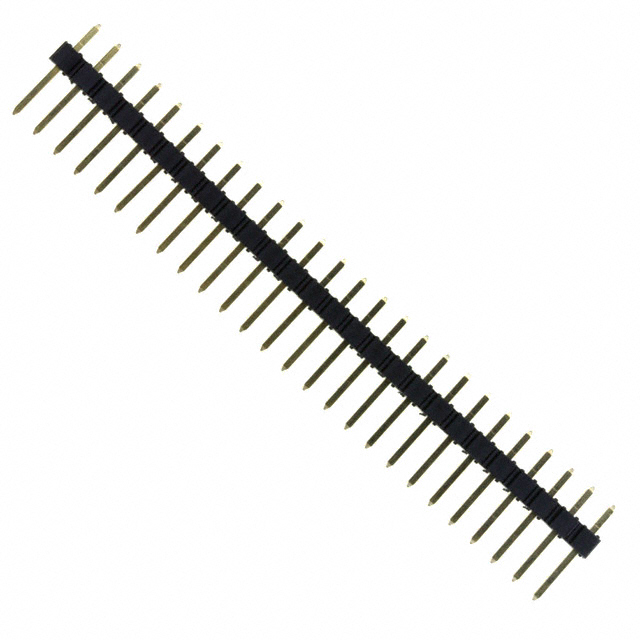

Amphenol ICC (FCI) 68001-226HLF	125 °C	-65 ░C	Solder	Gold or Gold GXT™	Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	15 µin	0.38 µm	Push-Pull	3 A	Header	26	Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm
Amphenol ICC (FCI) 68001-605	125 °C	-65 ░C	Solder	Gold or Gold GXT™	Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	30 Áin	0.76 Ám	Push-Pull	3 A	Header		Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm
Amphenol ICC (FCI) 68001-225HLF	125 °C	-65 ░C	Solder	Gold or Gold GXT™	Through Hole	0.12 in	3.05 mm	Unshrouded	Male Pin	15 µin	0.38 µm	Push-Pull	3 A	Header		Phosphor Bronze	0.23 in	5.84 mm	UL94 V-0	Black	Square	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	0.45 "	11.43 mm
