DAC088S085 Series

Catalog

8-BIT MICRO POWER OCTAL DIGITAL-TO-ANALOG CONVERTER WITH RAIL-TO-RAIL OUTPUTS

Part	Reference Type	Supplier Device Package	Number of Bits	Settling Time	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Data Interface	Output Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	INL/DNL (LSB)	INL/DNL (LSB) [Min]	INL/DNL (LSB) [Max]	Package / Case [x]	Package / Case	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Architecture	Mounting Type	Number of D/A Converters	DAC Type	Number of DAC's	Supplied Contents	Utilized IC / Part
Texas Instruments DAC088S085CIMTX/NOPB	External	16-TSSOP	8	4.5 µs	2.7 V	5.5 V	DSP SPI	Voltage - Buffered	5.5 V	2.7 V	0.12 LSB	-0.02 LSB	0.03 LSB	0.173 in	16-TSSOP	4.4 mm	125 °C	-40 °C	String DAC	Surface Mount	8
Texas Instruments DAC088S085EB/NOPB			8	3 µs			Serial															Voltage	8	Board(s)	DAC088S085

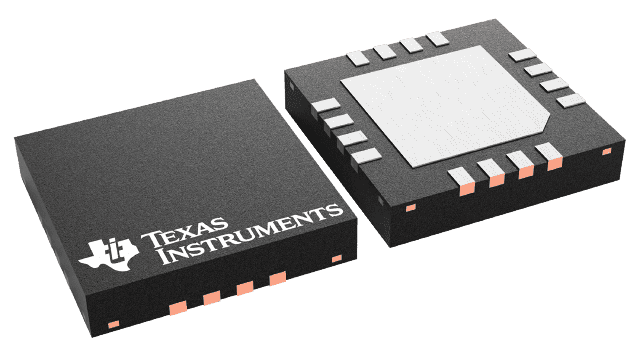

Texas Instruments DAC088S085CISQ	External	16-WQFN (4x4)	8	4.5 µs	2.7 V	5.5 V	DSP SPI	Voltage - Buffered	5.5 V	2.7 V	0.12 LSB	-0.02 LSB	0.03 LSB		16-WFQFN Exposed Pad		125 °C	-40 °C	String DAC	Surface Mount	8
Texas Instruments DAC088S085CISQX	External	16-WQFN (4x4)	8	4.5 µs	2.7 V	5.5 V	DSP SPI	Voltage - Buffered	5.5 V	2.7 V	0.12 LSB	-0.02 LSB	0.03 LSB		16-WFQFN Exposed Pad		125 °C	-40 °C	String DAC	Surface Mount	8
Texas Instruments DAC088S085CISQX/NOPB	External	16-WQFN (4x4)	8	4.5 µs	2.7 V	5.5 V	DSP SPI	Voltage - Buffered	5.5 V	2.7 V	0.12 LSB	-0.02 LSB	0.03 LSB		16-WFQFN Exposed Pad		125 °C	-40 °C	String DAC	Surface Mount	8
Texas Instruments DAC088S085CIMT	External	16-TSSOP	8	4.5 µs	2.7 V	5.5 V	DSP SPI	Voltage - Buffered	5.5 V	2.7 V	0.12 LSB	-0.02 LSB	0.03 LSB	0.173 in	16-TSSOP	4.4 mm	125 °C	-40 °C	String DAC	Surface Mount	8
Texas Instruments DAC088S085CISQ/NOPB	External	16-WQFN (4x4)	8	4.5 µs	2.7 V	5.5 V	DSP SPI	Voltage - Buffered	5.5 V	2.7 V	0.12 LSB	-0.02 LSB	0.03 LSB		16-WFQFN Exposed Pad		125 °C	-40 °C	String DAC	Surface Mount	8
