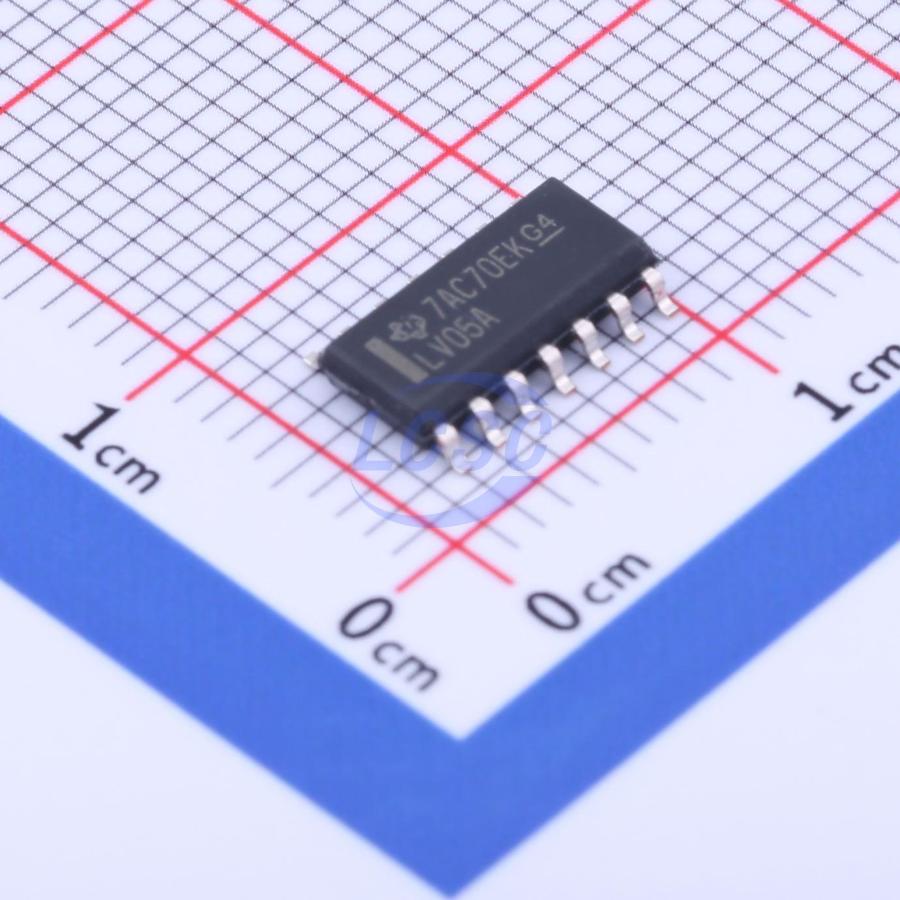

SN74LV05A Series

6-ch, 2-V to 5.5-V inverters with open-drain outputs

Catalog

6-ch, 2-V to 5.5-V inverters with open-drain outputs

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Max Propagation Delay @ V, Max CL	Features	Operating Temperature [Max]	Operating Temperature [Min]	Input Logic Level - Low	Current - Quiescent (Max) [Max]	Current - Output High, Low	Current - Output High, Low	Mounting Type	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Package / Case	Number of Circuits	Number of Inputs	Logic Type	Input Logic Level - High	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]
Texas Instruments SN74LV05APW	5.5 V	2 V	7.5 ns	Open Drain	85 °C	-40 °C	0.5 V	20 µA	-	12 mA	Surface Mount	14-TSSOP	0.173 "	4.4 mm	14-TSSOP	6	1	Inverter	1.5 V
Texas Instruments SN74LV05ADGVR	5.5 V	2 V	7.5 ns	Open Drain	85 °C	-40 °C	0.5 V	20 µA	-	12 mA	Surface Mount				14-TFSOP	6	1	Inverter	1.5 V	0.173 in 4.4 mm
Texas Instruments SN74LV05ADR	5.5 V	2 V	7.5 ns	Open Drain	85 °C	-40 °C	0.5 V	20 µA	-	12 mA	Surface Mount				14-SOIC	6	1	Inverter	1.5 V	0.154 in	3.9 mm
Texas Instruments SN74LV05ADBR	5.5 V	2 V	7.5 ns	Open Drain	85 °C	-40 °C	0.5 V	20 µA	-	12 mA	Surface Mount	14-SSOP			14-SSOP	6	1	Inverter	1.5 V			5.3 mm	0.209 "
Texas Instruments SN74LV05ANSR	5.5 V	2 V	7.5 ns	Open Drain	85 °C	-40 °C	0.5 V	20 µA	-	12 mA	Surface Mount	14-SO			14-SOIC	6	1	Inverter	1.5 V	0.209 "	5.3 mm
Texas Instruments SN74LV05ANS	5.5 V	2 V	7.5 ns	Open Drain	125 °C	-40 °C		20 µA	-	12 mA	Surface Mount	14-SO			14-SOIC	6	1	Inverter		0.209 "	5.3 mm			0.55 V	0.1 V
Texas Instruments SN74LV05APWR	5.5 V	2 V	7.5 ns	Open Drain	85 °C	-40 °C	0.5 V	20 µA	-	12 mA	Surface Mount	14-TSSOP	0.173 "	4.4 mm	14-TSSOP	6	1	Inverter	1.5 V

Catalog

6-ch, 2-V to 5.5-V inverters with open-drain outputs

Key Features

• VCCoperation of 2 V to 5.5 VTypical VOLP(output ground bounce) < 0.8 V at VCC= 3.3 V, TA= 25°CTypical VOHV(output VOHundershoot) > 2.3 V at VCC= 3.3 V, TA= 25°CSupport mixed-mode voltage operation on all portsIoffsupports partial-power-down mode operationLatch-up performance exceeds 250 mA per JESD 17VCCoperation of 2 V to 5.5 VTypical VOLP(output ground bounce) < 0.8 V at VCC= 3.3 V, TA= 25°CTypical VOHV(output VOHundershoot) > 2.3 V at VCC= 3.3 V, TA= 25°CSupport mixed-mode voltage operation on all portsIoffsupports partial-power-down mode operationLatch-up performance exceeds 250 mA per JESD 17

Description

The SN74LV05A device contains six independent inverters designed for 2 V to 5.5 V VCCoperation. This device performs the Boolean function Y =A. The SN74LV05A device contains six independent inverters designed for 2 V to 5.5 V VCCoperation. This device performs the Boolean function Y =A.
