GEC03D Series

Catalog

CONN HEADER SMD 6POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Style	Fastening Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Material	Shrouding	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Shape	Material Flammability Rating	Contact Finish - Post	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Insulation Material	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post

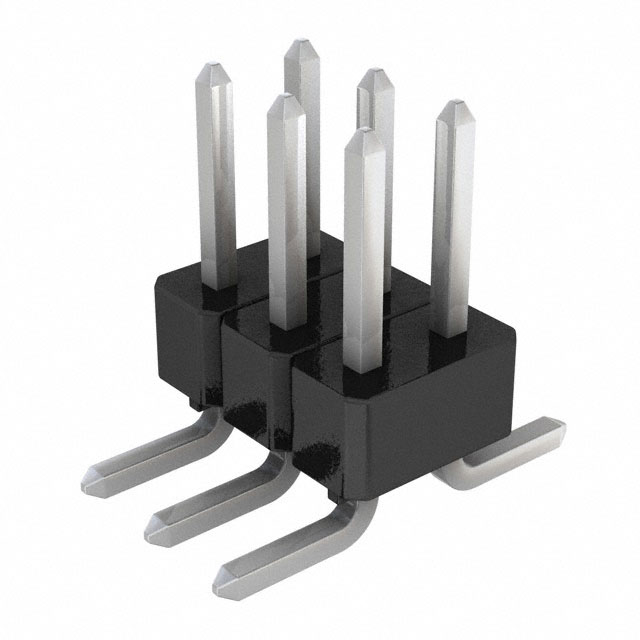

Sullins Connector Solutions GEC03DABN-M30	2.54 µm	100 µin	Surface Mount	Board to Board Cable	Push-Pull	Solder	100 çin	2.54 çm	All	Phosphor Bronze	Unshrouded	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Square	UL94 V-0	Tin	Header Breakaway	150 °C	-65 ░C	Male Pin	0.23 in	5.84 mm	Black	Nylon 9T Polyamide (PA9T)	6	0.1 in	2.54 mm	2
Sullins Connector Solutions GEC03DAAN	2.54 µm	100 µin	Through Hole	Board to Board Cable	Push-Pull	Solder	100 çin	2.54 çm	All	Phosphor Bronze	Unshrouded	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Square	UL94 V-0	Tin	Header Breakaway	150 °C	-65 ░C	Male Pin	0.23 in	5.84 mm	Black	Nylon 9T Polyamide (PA9T)	6	0.1 in	2.54 mm	2	11.43 mm	0.45 in	3.05 mm	0.12 in
