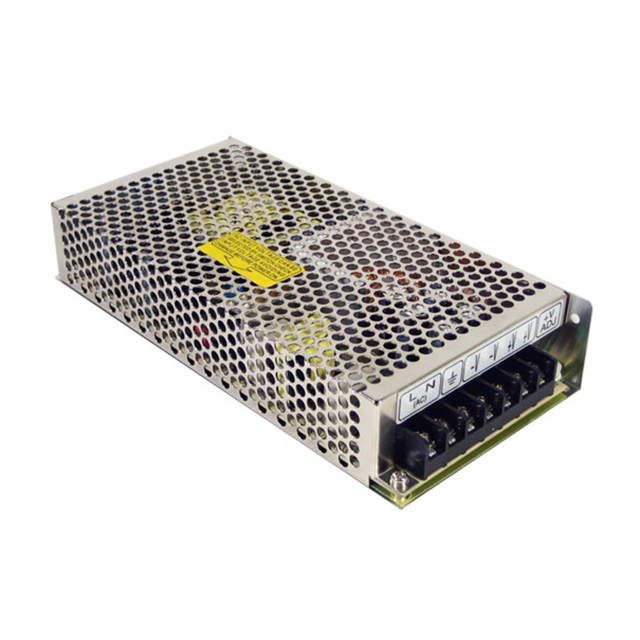

RS-150 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 150W
| Part | Minimum Load Required | Mounting Type | Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Voltage - Output 1 | Efficiency | Type | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Current - Output 1 | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | Adjustable Output | 199 mm | 1.5 in | 98 mm | 7.83 in | 3.86 " | 38 mm | ITE (Commercial) | 12 V | 83 % | Enclosed | CB CE cURus TUV | 70 °C | -25 °C | 150 W | 12.5 A | 1 | 132 VAC 264 VAC 373 VDC | 88 VAC 176 VAC 248 VDC | 3000 V |
