0040-1 Series

Catalog

CONN RECEPT PIN WRAPOST .260"

Part	Operating Temperature (Max)	Operating Temperature (Min)	Socket Depth	Tail Diameter	Tail Diameter Shape	Flange Diameter	Length - Overall	Termination	Mounting Hole Diameter	Tail Type	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Pin Hole Diameter	Contact Finish	Contact Material	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0040-1-17-01-30-14-02-0	125 °C	-55 °C	0.162 in	0.025 in	Square	0.072 in	0.46 in	Press-Fit	0.057 in	Wire Wrap	0.015 in	0.025 in	0.043 in	Gold	Beryllium Copper	10 Ąin
Mill-Max Manufacturing Corp. 0040-1-17-80-30-84-02-0	125 °C	-55 °C	0.162 in	0.025 in	Square	0.072 in	0.46 in	Press-Fit	0.057 in	Wire Wrap	0.015 in	0.025 in	0.043 in	Tin	Beryllium Copper	100 µin
Mill-Max Manufacturing Corp. 0040-1-17-01-30-02-02-0	125 °C	-55 °C	0.162 in	0.025 in	Square	0.072 in	0.46 in	Press-Fit	0.057 in	Wire Wrap	0.015 in	0.025 in	0.043 in	Tin-Lead	Beryllium Copper	100 µin

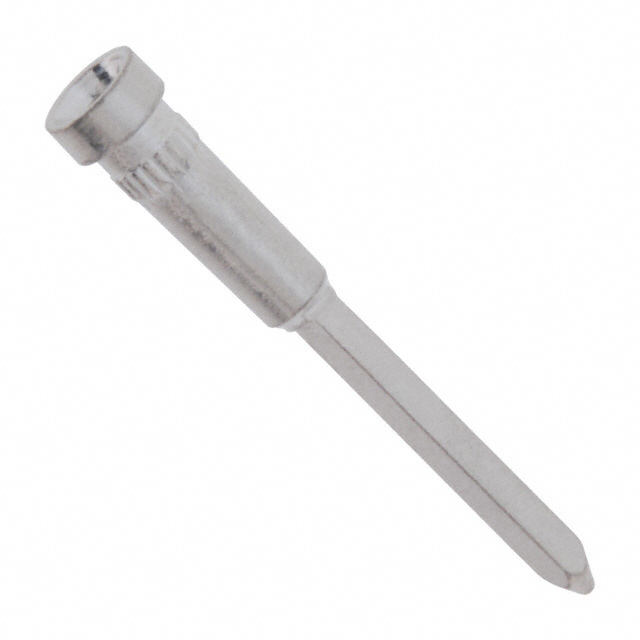

Mill-Max Manufacturing Corp. 0040-1-17-15-30-27-02-0	125 °C	-55 °C	0.162 in	0.025 in	Square	0.072 in	0.46 in	Press-Fit	0.057 in	Wire Wrap	0.015 in	0.025 in	0.043 in	Gold	Beryllium Copper	30 µin
Mill-Max Manufacturing Corp. 0040-1-17-15-30-14-02-0	125 °C	-55 °C	0.162 in	0.025 in	Square	0.072 in	0.46 in	Press-Fit	0.057 in	Wire Wrap	0.015 in	0.025 in	0.043 in	Gold	Beryllium Copper	10 Ąin

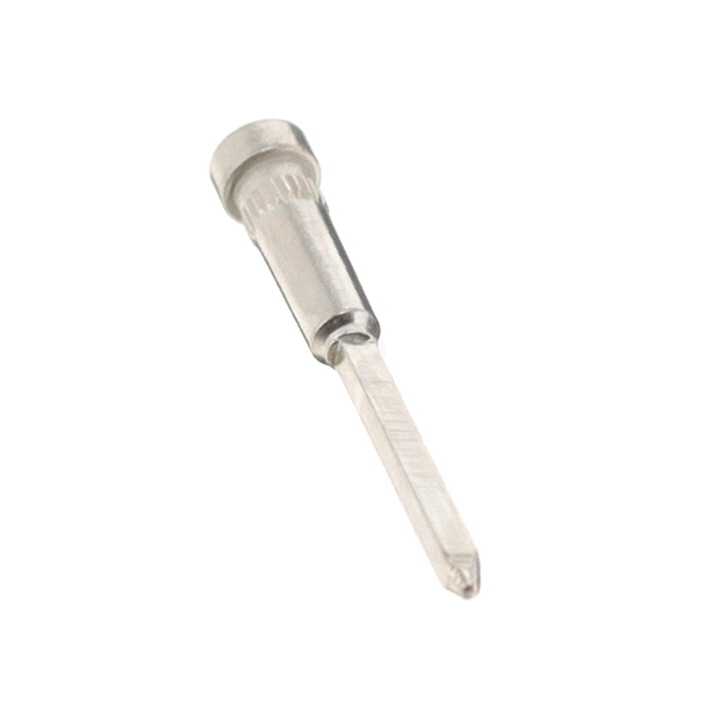

Mill-Max Manufacturing Corp. 0040-1-17-80-30-27-02-0	125 °C	-55 °C	0.162 in	0.025 in	Square	0.072 in	0.46 in	Press-Fit	0.057 in	Wire Wrap	0.015 in	0.025 in	0.043 in	Gold	Beryllium Copper	30 µin
