1825108 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN IC DIP SOCKET 28POS GOLD

Part	Housing Material	Pitch - Mating	Pitch - Mating	Type	Type	Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Resistance	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length [x]	Termination Post Length [x]	Termination	Material Flammability Rating	Mounting Type	Contact Material - Mating	Features	Contact Finish - Post	Contact Material - Post	Number of Positions or Pins (Grid)	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]

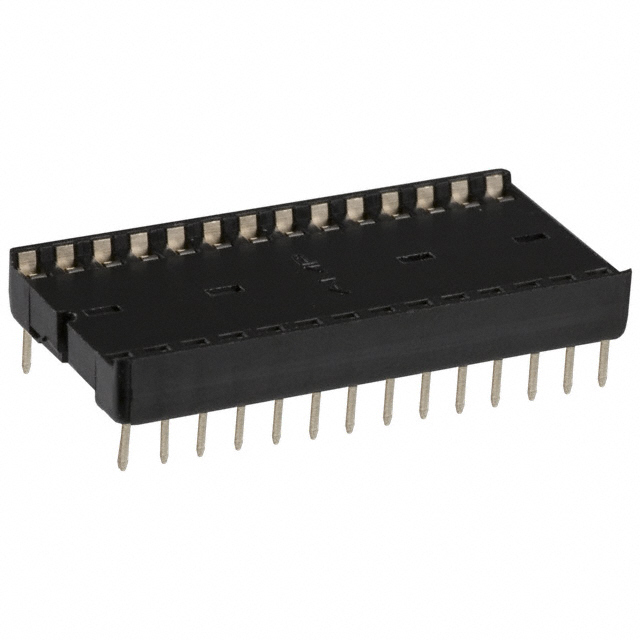

TE Connectivity Raychem Cable Protection 1-1825108-2	Thermoplastic Glass Filled	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	30 Áin	0.76 Ám	Gold	30 mOhm	30 µin	0.76 µm	-55 °C	125 °C	0.128 in	3.24 mm	Solder	UL94 V-0	Through Hole	Beryllium Copper	Closed Frame	Gold	Beryllium Copper	28	2.54 mm	0.1 in

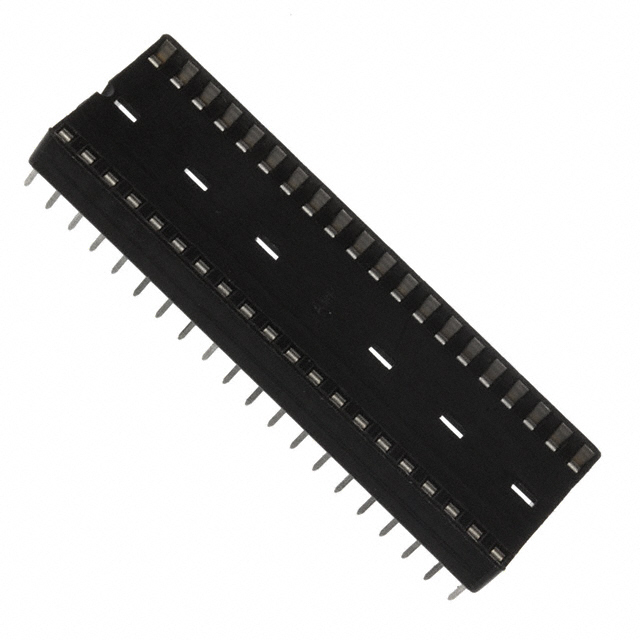

TE Connectivity Raychem Cable Protection 1825108-3	Thermoplastic Glass Filled	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	15 µin	0.38 µm	Gold	30 mOhm	15 µin	0.38 µm	-55 °C	125 °C	0.128 in	3.24 mm	Solder	UL94 V-0	Through Hole	Phosphor Bronze	Closed Frame	Gold	Phosphor Bronze	40	2.54 mm	0.1 in	20	2
TE Connectivity Raychem Cable Protection 1-1825108-1	Thermoplastic Glass Filled	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	30 Áin	0.76 Ám	Gold	30 mOhm	30 µin	0.76 µm	-55 °C	125 °C	0.128 in	3.24 mm	Solder	UL94 V-0	Through Hole	Beryllium Copper	Closed Frame	Gold	Beryllium Copper	24	2.54 mm	0.1 in

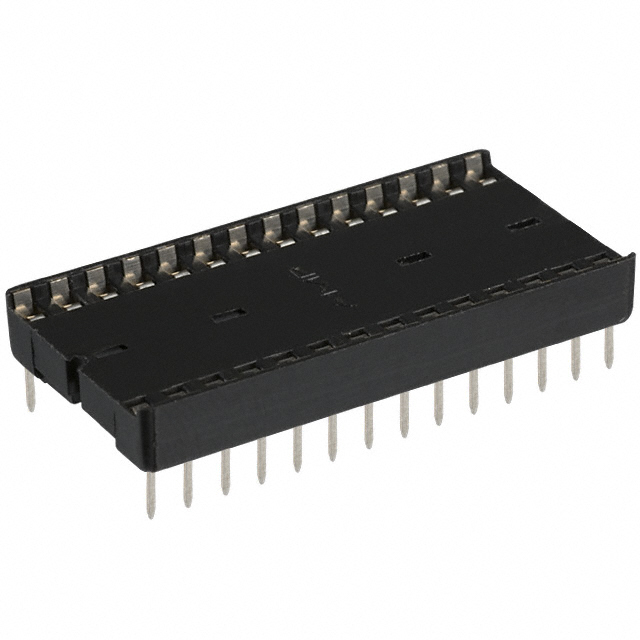

TE Connectivity Raychem Cable Protection 1825108-2	Thermoplastic Glass Filled	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	15 µin	0.38 µm	Gold	30 mOhm	15 µin	0.38 µm	-55 °C	125 °C	0.128 in	3.24 mm	Solder	UL94 V-0	Through Hole	Phosphor Bronze	Closed Frame	Gold	Phosphor Bronze	28	2.54 mm	0.1 in
