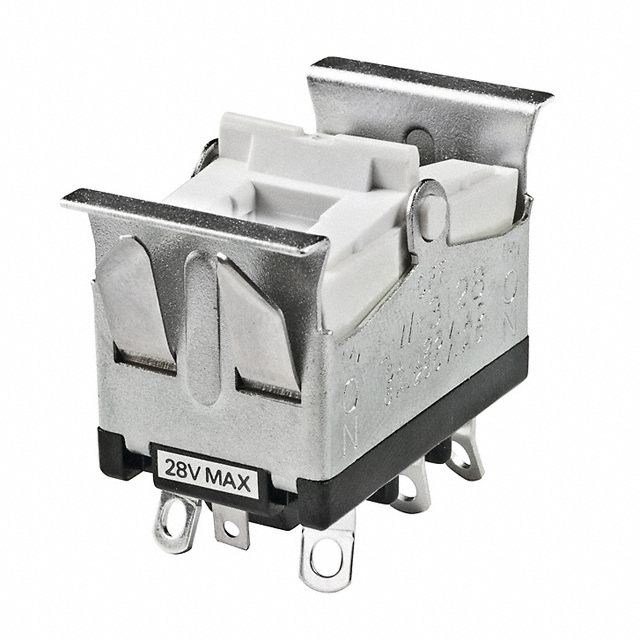

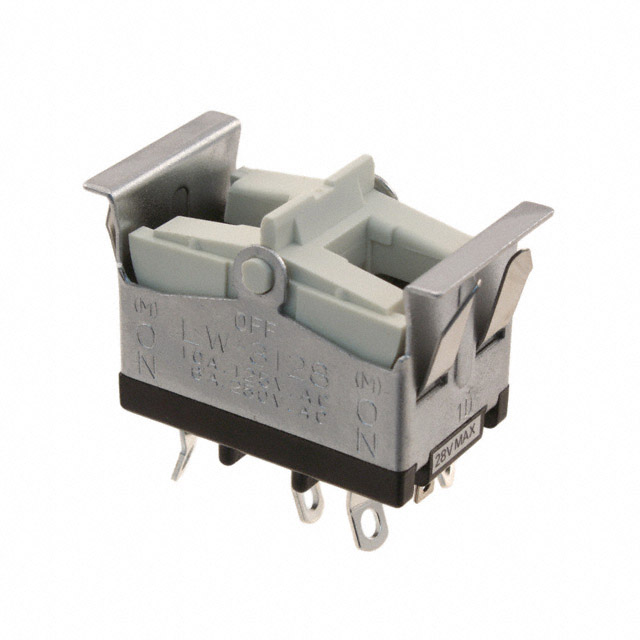

LW3128 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER DPDT 10A 125V
| Part | Mounting Type | Approval Agency | Mechanical Life | Switch Function | Electrical Life | Termination Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Current Rating (Amps) | Voltage Rating - AC | Actuator Type | Voltage Rating - DC | Illumination Type, Color | Illumination Voltage (Nominal) | Color - Actuator/Cap | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | Varies by Cap | 10 A | 125 V | Actuator Arm Cap Required | |||||
 NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | No Marking | 6 A 10 A | 125 V | Concave (Standard V) - Illuminated | 30 V | Green/Red Incandescent | 24 VAC | White | With Lamp Covers |
 NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | Varies by Cap | 10 A | 125 V | Actuator Arm Cap Required | |||||
NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | No Marking | 6 A 10 A | 125 V | Concave (Standard V) - Illuminated | 30 V | Incandescent White | 24 VAC | Clear | |
NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | No Marking | 6 A 10 A | 125 V | Concave (Standard V) - Illuminated | 30 V | Amber/Blue Incandescent | 28 VAC | Clear (Amber Blue Filter/Diffuser) | |
NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | No Marking | 6 A 10 A | 125 V | Concave (Standard V) - Illuminated | 30 V | Green/Yellow Incandescent | 24 VAC | Clear | |
NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | No Marking | 6 A 10 A | 125 V | Concave (Standard V) - Illuminated | 30 V | Green/Red Incandescent | 24 VAC | White | |
NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | No Marking | 6 A 10 A | 125 V | Concave (Standard V) - Illuminated | 30 V | Incandescent Red | 12 VAC | White | |
NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | No Marking | 6 A 10 A | 125 V | Concave (Standard V) - Illuminated | 30 V | Incandescent White | 6 VAC | White | |
NKK Switches | Panel Mount Snap-In | CSA UL | 30000 Steps | Mom-Off-Mom | 10000 Cycles | Solder Lug | 32 mm | 19.8 mm | DPDT | -20 ░C | 50 °C | No Marking | 6 A 10 A | 125 V | Concave (Standard V) - Illuminated | 30 V | Green/Red Incandescent | 12 VAC | White | With Lamp Covers |
