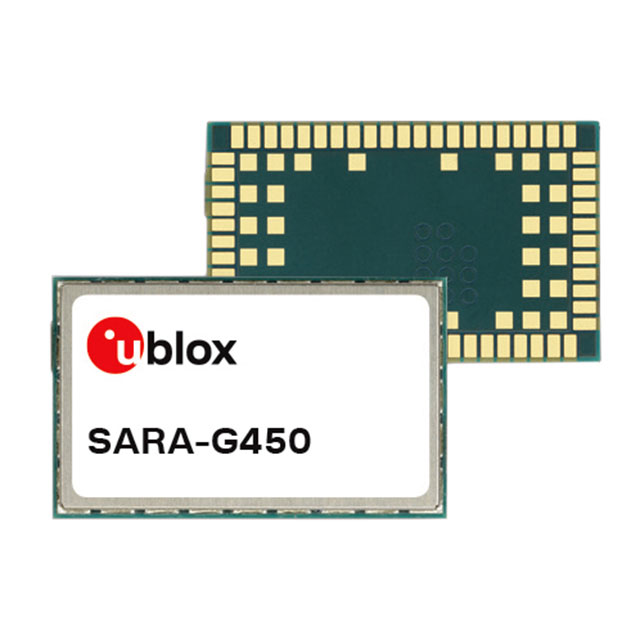

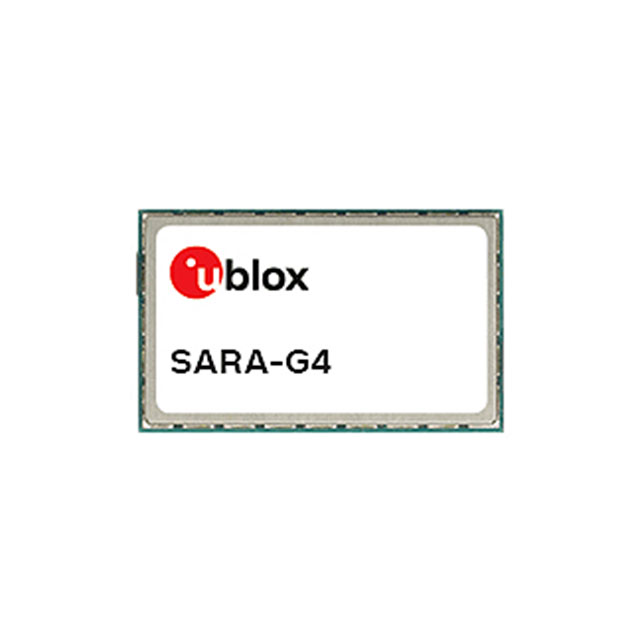

SARA-G450 Series
Manufacturer: u-blox
Beta
⌘K
RF TXRX MODULE CELL SMD
| Part | Serial Interfaces | Sensitivity | Operating Temperature (Max) | Operating Temperature (Min) | Frequency | Frequency | Package / Case | RF Family/Standard | Antenna Type | Power - Output | Mounting Type | Protocol | Current - Receiving (Max) | Current - Receiving (Min) | Data Rate | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Current - Transmitting (Max) | Current - Transmitting (Min) | Current - Transmitting | Current - Receiving |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | GPIO I2C UART | -109 dBm | 70 °C | -20 °C | 1.8 GHz 1.9 GHz 850 MHz 900 MHz | 1.8GHz 1.9GHz 850MHz 900MHz | 96-SMD Module | Cellular | Antenna Not Included | 33 dBm | Surface Mount | GPRS GSM | 285 mA | 65 mA | 85.6 kbps | 3.4 V | 4.2 V | 285 mA | 65 mA | ||
 u-blox | GPIO UART | -109 dBm | 70 °C 75 °C | -40 °C -20 °C | 1.8 GHz 1.9 GHz 850 MHz 900 MHz | 1.8GHz 1.9GHz 850MHz 900MHz | 96-SMD Module | Cellular | Antenna Not Included | 33 dBm | Surface Mount | GPRS GSM | 285 mA | 65 mA | 85.6 kbps | 3.4 V | 4.2 V | 285 mA | 65 mA | 230 mA | 230 mA |
