SM11B-NS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

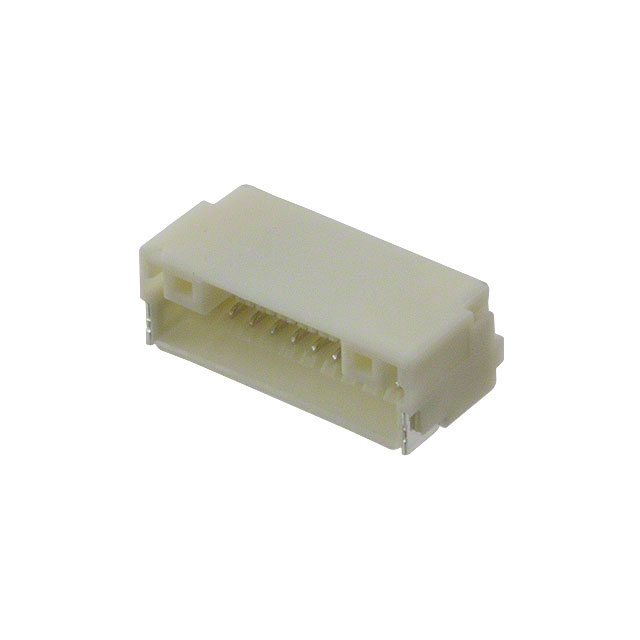

CONN HEADER SMD R/A 11POS 1MM
| Part | Style | Insulation Height | Insulation Height | Insulation Color | Contact Type | Contact Material | Connector Type | Material Flammability Rating | Termination | Fastening Type | Number of Rows | Number of Positions | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Voltage Rating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Finish - Post | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | 4.4 mm | 0.173 in | Natural | Male Pin | Copper Alloy | Header | UL94 V-0 | Solder | Latch Holder | 1 | 11 | Solder Retention | Right Angle Surface Mount | 85 °C | -25 °C | Nylon Polyamide (PA) | 50 V | 1 mm | 0.039 in | All | Tin | Shrouded - 4 Wall |
