ZM10B Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

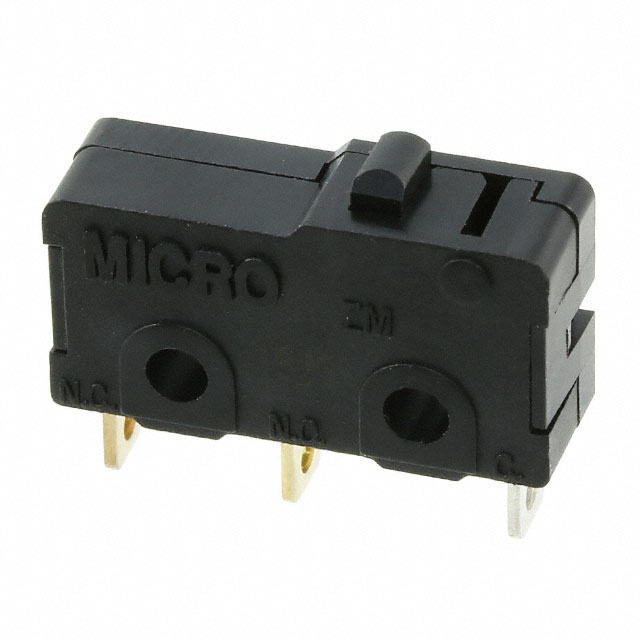

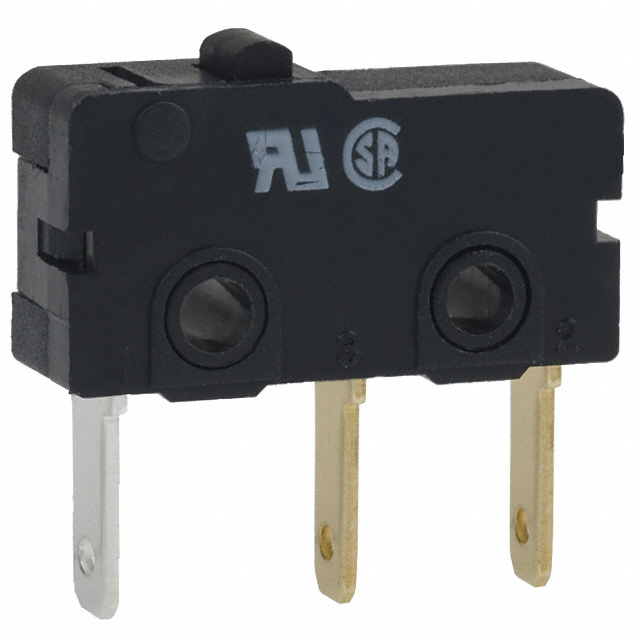

SUBMINIATURE BASIC SWITCH : ROHS COMPLIANT: YES
| Part | Release Force | Overtravel [custom] | Overtravel [custom] | Voltage Rating - DC | Operating Position | Operating Position | Actuator Type | Voltage Rating - AC | Mounting Type | Current Rating (Amps) | Operating Force | Pretravel | Pretravel | Mechanical Life | Termination Style | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Circuit | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 8 gf | 0.03 " | 0.76 mm | 30 V | 8.9 mm | 0.35 in | Lever Straight | 125 V | Chassis Mount | 100 mA | 60 gf | 6.1 mm | 0.24 in | 10000000 Cycles | Solder Lug | 10000 Cycles | 120 °C | -40 C | On-Mom | SPDT | ||
 Honeywell Sensing and Productivity Solutions | 8 gf | 0.015 " | 0.4 mm | 30 V | 11.4 mm | 0.449 " | Round (Pin Plunger) | 125 V | Chassis Mount | 100 mA | 60 gf | 1.1 mm | 0.043 in | 10000000 Cycles | Solder Lug | 10000 Cycles | 120 °C | -40 C | On-Mom | SPDT | 0.2 mm | 0.008 in |
 Honeywell Sensing and Productivity Solutions | 8 gf | 0.015 " | 0.4 mm | 30 V | 11.4 mm | 0.449 " | Round (Pin Plunger) | 125 V | Chassis Mount | 100 mA | 60 gf | 1.1 mm | 0.043 in | 10000000 Cycles | Quick Connect - 0.110" (2.8mm) | 10000 Cycles | 120 °C | -40 C | On-Mom | SPDT | 0.2 mm | 0.008 in |
