0293-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .022-.034 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish	Accepts Square Pin Size	Accepts Square Pin Size	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter	Mounting Hole Diameter	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Socket Depth	Socket Depth	Tail Type

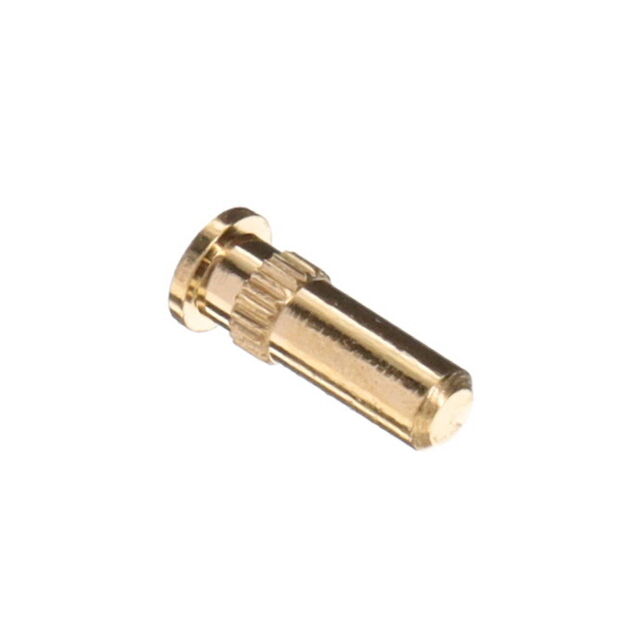

Mill-Max Manufacturing Corp. 0293-0-15-15-16-27-10-0	-55 C	125 °C	Press-Fit	Gold	0.025 in	0.64 mm	30 Áin	0.76 Ám	0.067 in	1.7 mm	0.051 in	1.3 mm	Beryllium Copper	2.18 mm	0.086 in	0.86 mm	0.034 "	0.022 "	0.56 mm	4.32 mm	0.17 in	No Tail

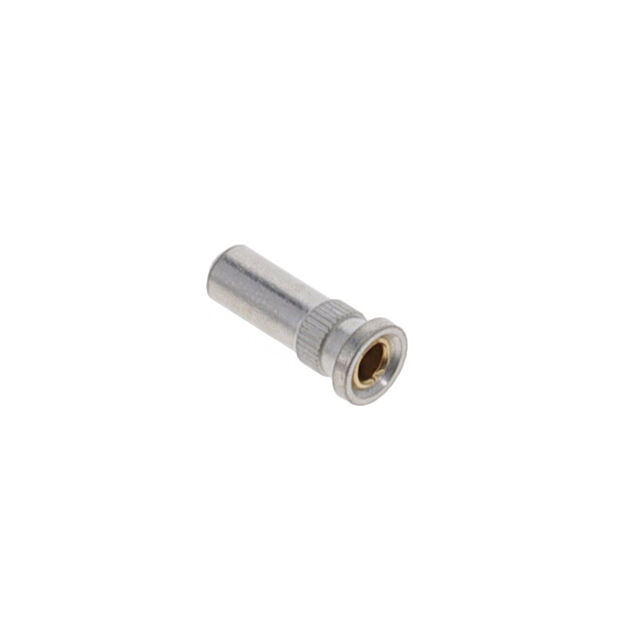

Mill-Max Manufacturing Corp. 0293-0-15-80-16-14-10-0	-55 C	125 °C	Press-Fit	Gold	0.025 in	0.64 mm	10 Áin	0.25 Ám	0.067 in	1.7 mm	0.051 in	1.3 mm	Beryllium Copper	2.18 mm	0.086 in	0.86 mm	0.034 "	0.022 "	0.56 mm	4.32 mm	0.17 in	No Tail

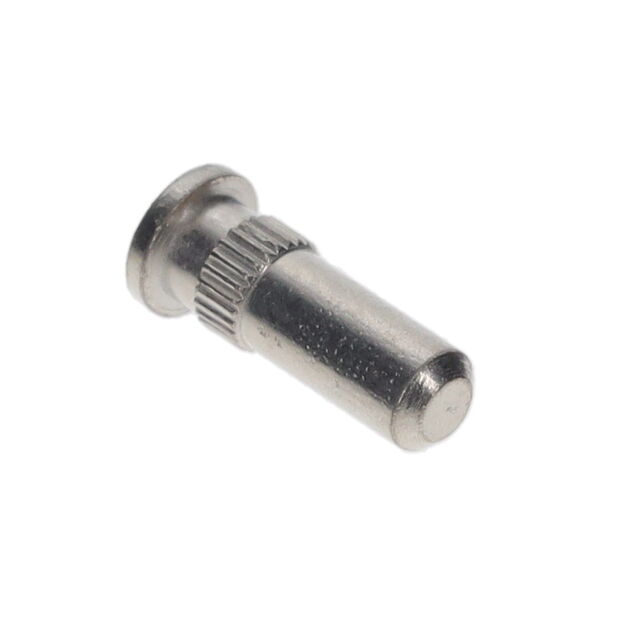

Mill-Max Manufacturing Corp. 0293-0-15-80-16-80-10-0	-55 C	125 °C	Press-Fit	Tin	0.025 in	0.64 mm	200 Áin	5.08 Ám	0.067 in	1.7 mm	0.051 in	1.3 mm	Beryllium Copper	2.18 mm	0.086 in	0.86 mm	0.034 "	0.022 "	0.56 mm	4.32 mm	0.17 in	No Tail
Mill-Max Manufacturing Corp. 0293-0-15-15-16-14-10-0	-55 C	125 °C	Press-Fit	Gold	0.025 in	0.64 mm	10 Áin	0.25 Ám	0.067 in	1.7 mm	0.051 in	1.3 mm	Beryllium Copper	2.18 mm	0.086 in	0.86 mm	0.034 "	0.022 "	0.56 mm	4.32 mm	0.17 in	No Tail

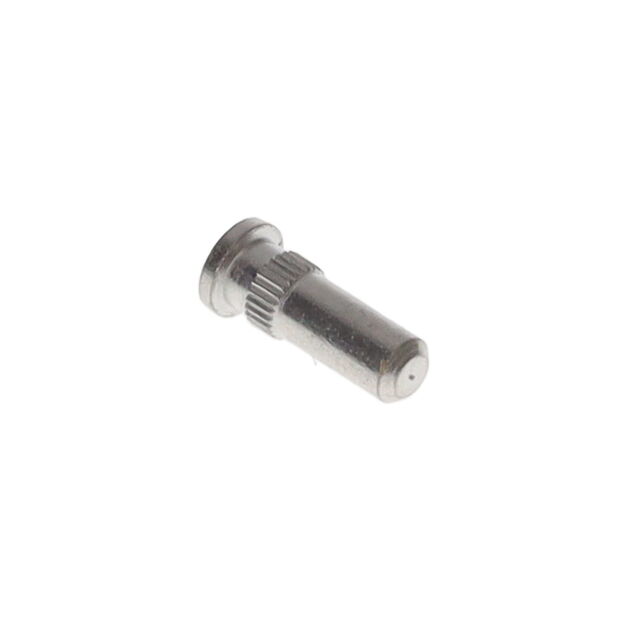

Mill-Max Manufacturing Corp. 0293-0-15-80-16-27-10-0	-55 C	125 °C	Press-Fit	Gold	0.025 in	0.64 mm	30 Áin	0.76 Ám	0.067 in	1.7 mm	0.051 in	1.3 mm	Beryllium Copper	2.18 mm	0.086 in	0.86 mm	0.034 "	0.022 "	0.56 mm	4.32 mm	0.17 in	No Tail
