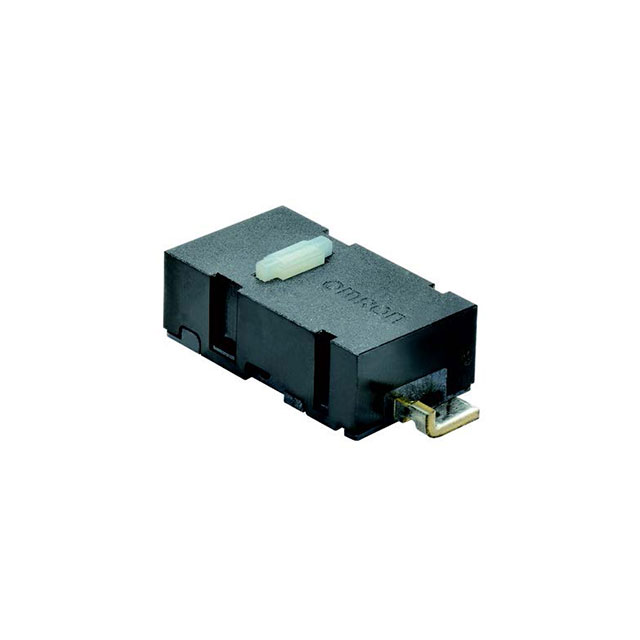

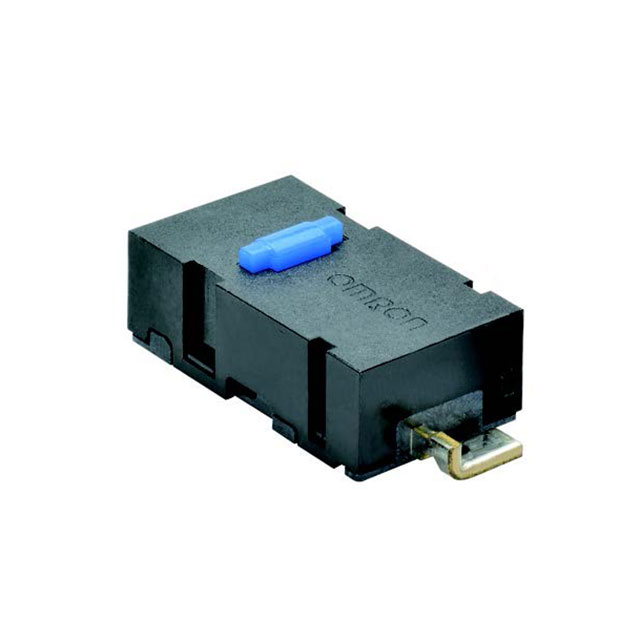

D2LS Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNP ACT SPST-NO 0.001A 6V
| Part | Mechanical Life | Differential Travel | Differential Travel | Circuit | Current Rating (Amps) | Operating Position [x] | Operating Position [x] | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Features | Termination Style | Release Force | Ingress Protection | Actuator Type | Operating Force | Electrical Life | Mounting Type | Voltage Rating - DC | Overtravel | Overtravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 5000000 Cycles | 0.13 mm | 0.005 in | SPST-NO | 1 mA | 0.126 in | 3.2 mm | -25 °C | 85 °C | Off-Mom | Board Guide | SMD (SMT) Tab | 15 gf | IP40 | Round (Pin Plunger) | 61 gf | 5000000 Cycles | Surface Mount | 6 V | 0.004 in | 0.1 mm |
 Omron Electronics Inc-EMC Div | 5000000 Cycles | 0.13 mm | 0.005 in | SPST-NO | 1 mA | 0.126 in | 3.2 mm | -25 °C | 85 °C | Off-Mom | Board Guide | SMD (SMT) Tab | 15 gf | IP40 | Round (Pin Plunger) | 122 gf | 5000000 Cycles | Surface Mount | 6 V | 0.004 in | 0.1 mm |
