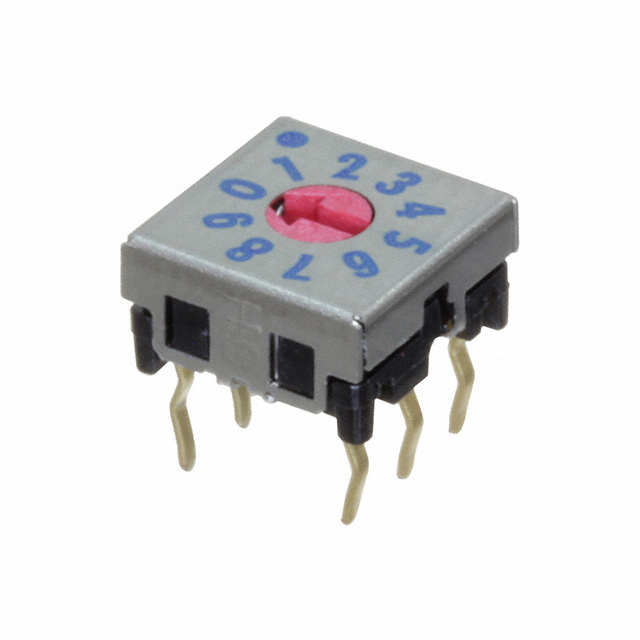

DRS7110 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SW ROTARY DIP BCD COMP 0.03A 15V
| Part | Pitch [x] | Pitch | Pitch [x] | Height Above Board | Height Above Board | Circuit | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Voltage Rating | Mounting Type | Actuator Level | Electrical Life | Actuator Type | Termination Style | Number of Positions | Current Rating (Amps) | Features | Washable | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 0.1 in | Full | 2.54 mm | 0.161 " | 4.1 mm | BCD Complement | 20000 Cycles | -25 °C | 85 °C | 7.5 mm | 0.295 in | 15 VDC | Through Hole | Flush Recessed | 20000 Steps | Rotary for Tool | PC Pin | 10 | 30 mA | Process Sealed | Gold |
