SA08-11 Series

Catalog

DISPLAY SEGMENTED MODULE 1DIGIT 8LED HYPER RED CA 13-PIN DIP MODULE TUBE

Part	Color	Common Pin	Current - Test	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Millicandela Rating	Power Dissipation (Max) [Max]	Display Type	Number of Characters	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Package / Case [x]	Package / Case [x]

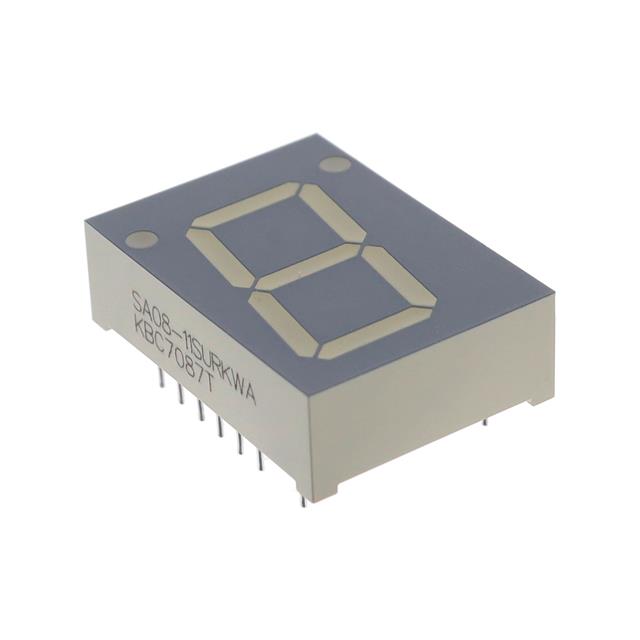

Kingbright SA08-11SURKWA	Red	Common Anode	20 mA	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	645 nm	61 mcd	75 mw	7-Segment	1	15.24 mm	16-DIP	0.6 in	0.8 in	20.32 mm	1.95 V
Kingbright SA08-11GWA	Green	Common Anode	20 mA	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	565 nm	13 mcd	62.5 mW	7-Segment	1		18-DIP		0.8 in	20.32 mm	2.2 V	15.24 mm	0.6 in
Kingbright SA08-11YWA	Yellow	Common Anode	20 mA	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	590 nm	7.9 mcd	75 mw	7-Segment	1		18-DIP		0.8 in	20.32 mm	2.1 V	15.24 mm	0.6 in
Kingbright SA08-11SRWA	Red	Common Anode	20 mA	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	660 nm	36 mcd	75 mw	7-Segment	1		18-DIP		0.8 in	20.32 mm	1.85 V	15.24 mm	0.6 in
Kingbright SA08-11CGKWA	Green	Common Anode	20 mA	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm		25 mcd	75 mw	7-Segment	1	15.24 mm	16-DIP	0.6 in	0.8 in	20.32 mm	2.1 V
Kingbright SA08-11SYKWA	Yellow	Common Anode	20 mA	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	590 nm	140 mcd	75 mw	7-Segment	1	15.24 mm	16-DIP	0.6 in	0.8 in	20.32 mm	2 V
Kingbright SA08-11EWA	Red	Common Anode	20 mA	27.7 mm	0.331 in	1.091 "	0.787 in	20 mm	8.4 mm	627 nm	8 mcd	75 mw	7-Segment	1		18-DIP		0.8 in	20.32 mm	2 V	15.24 mm	0.6 in
