WR-100P Series

Catalog

CONN PLUG 100POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Number of Positions	Pitch	Pitch	Number of Rows [custom]	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Mounting Type	Features	Height Above Board	Height Above Board

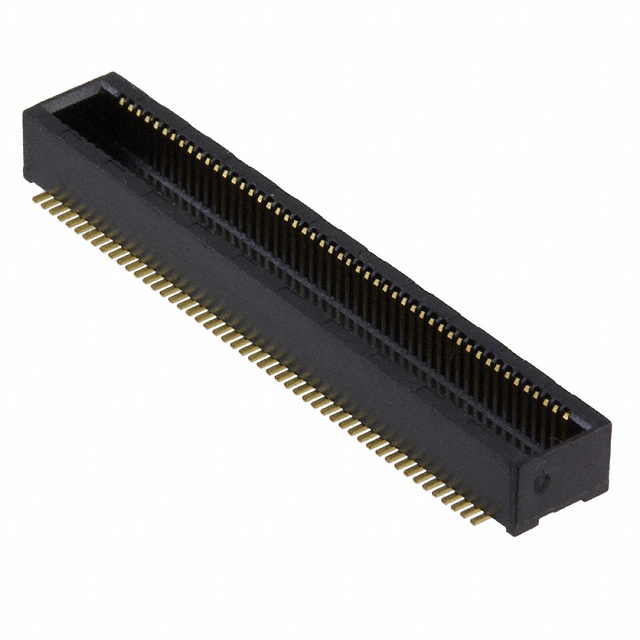

JAE Electronics WR-100P-VF-N1	0.118 in	3 mm	100	0.02 "	0.5 mm	2	Gold	Plug Outer Shroud Contacts	0.1 Ám	4 Áin	4 mm 4.5 mm 7 mm	Surface Mount
JAE Electronics WR-100PB-VF-N1-R1500	0.118 in	3 mm	100	0.02 "	0.5 mm	2	Gold	Plug Outer Shroud Contacts	0.1 Ám	4 Áin	4 mm 4.5 mm 7 mm	Surface Mount	Board Guide
JAE Electronics WR-100P-VF-N1-R1500	0.118 in	3 mm	100	0.02 "	0.5 mm	2	Gold	Plug Outer Shroud Contacts	0.1 Ám	4 Áin	4 mm 4.5 mm 7 mm	Surface Mount
JAE Electronics WR-100PB-VF-N1	0.118 in	3 mm	100	0.02 "	0.5 mm	2	Gold	Plug Outer Shroud Contacts	0.1 Ám	4 Áin	4 mm 4.5 mm 7 mm	Surface Mount	Board Guide
JAE Electronics WR-100PB-VF60-N1			100	0.02 "	0.5 mm	2	Gold	Plug Outer Shroud Contacts	0.1 Ám	4 Áin	6 mm 6.5 mm 9 mm	Surface Mount	Board Guide	5 mm	0.197 in

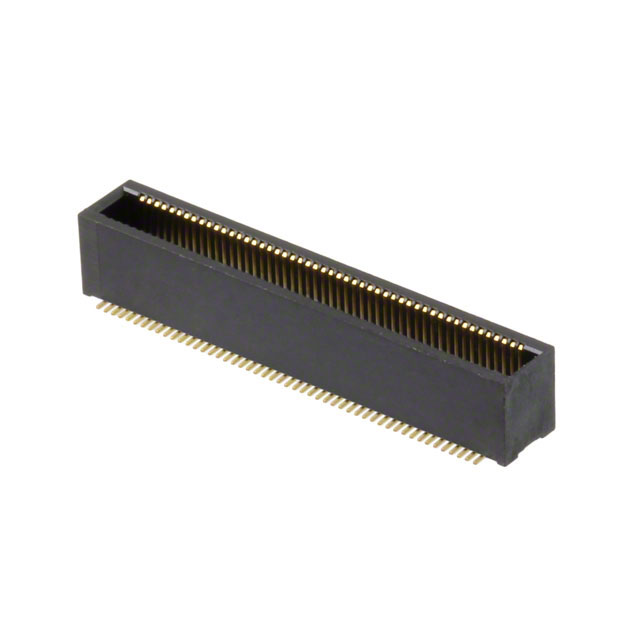

JAE Electronics WR-100P-VF60-N1			100	0.02 "	0.5 mm	2	Gold	Plug Outer Shroud Contacts	0.1 Ám	4 Áin	6 mm 6.5 mm 9 mm	Surface Mount		5 mm	0.197 in
