LCBS-4 Series

Catalog

BRD SPT SNAP FIT/LOCK NYLON 1/2"

Part	Holding Type	Length - Overall [x]	Length - Overall [x]	Material	Between Board Height	Between Board Height	Between Board Height	Features	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]
Essentra Components LCBS-4-8-19	Snap Fit	1.232 in	31.3 mm	Nylon	12.7 mm	0.5 in	0.5 in	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "
Essentra Components LCBS-4-7-01	Snap Fit	1.169 in	29.7 mm	Nylon	11.13 mm	0.4375 "	0.438 in	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "
Essentra Components LCBS-4-12-01	Snap Fit	1.484 "	37.7 mm	Nylon	19.05 mm	0.75 "	0.75 "	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "
Essentra Components LCBS-4-18-19	Snap Fit	1.858 in	47.2 mm	Nylon	28.58 mm		1.125 in	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "
Essentra Components LCBS-4-16-19	Snap Fit	1.732 in	44 mm	Nylon	25.4 mm		1 in	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "
Essentra Components LCBS-4-10-19	Snap Fit	1.358 "	34.5 mm	Nylon	15.88 mm	5 8	0.625 in	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "

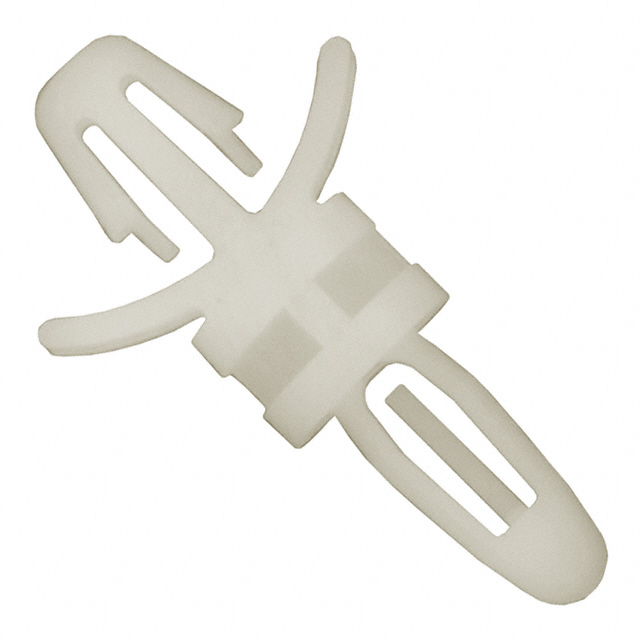

Essentra Components LCBS-4-01	Snap Fit	0.984 in	25 mm	Nylon	0.25 in		6.35 mm	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "
Essentra Components LCBS-4-3-01	Snap Fit	0.921 in	23.4 mm	Nylon	0.1875 in		0.188 in	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "

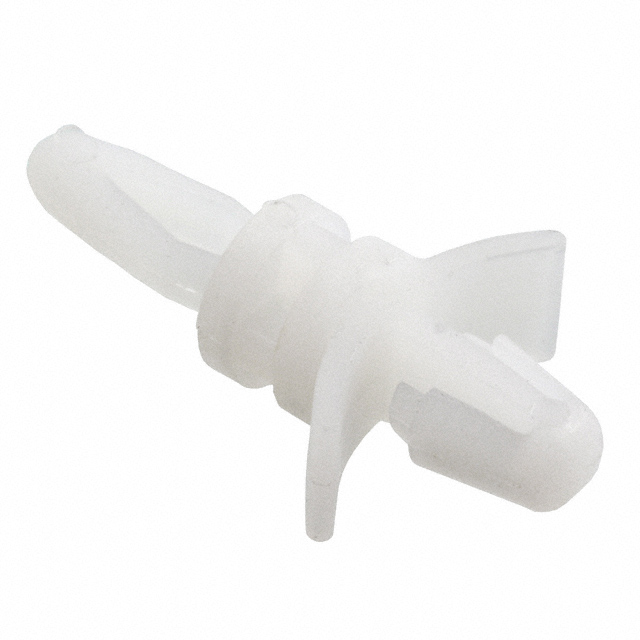

Essentra Components LCBS-4-4-01	Snap Fit	0.984 in	25 mm	Nylon	0.25 in		6.35 mm	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "

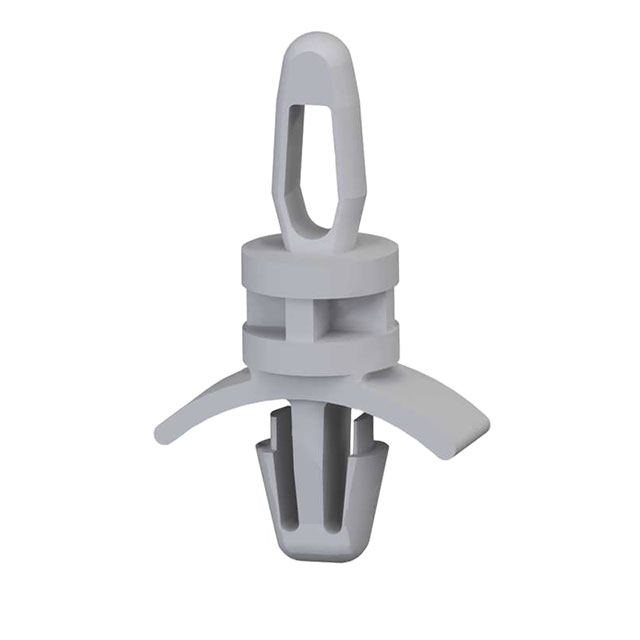

Essentra Components LCBS-4-10-01	Snap Fit	1.358 "	34.5 mm	Nylon	15.88 mm	5 8	0.625 in	Winged	0.1875 in	0.187 in	4.75 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	1.57 mm	0.062 in	0.0625 in	Snap Lock	3.99 mm	0.157 "
