G3T22A Series

Catalog

PROCESS SEALED ULTRA-MINIATURE SMT TOGGLE

Part	Electrical Life	Actuator Material	Circuit	Voltage Rating - AC	Termination Style	Mounting Type	Illumination	Current Rating (Amps)	Bushing Thread	Actuator Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Length [x]	Features
NKK Switches G3T22AH-R	50000 Cycles	Polyphenylene Sulfide (PPS)	DPDT	28 V	Gull Wing	Right Angle Surface Mount	Non-Illuminated	0.4 VA	Unthreaded	Standard Round	28 V	85 °C	-30 ░C	On-On	3.81 mm
NKK Switches G3T22AB	50000 Cycles	Polyphenylene Sulfide (PPS)	DPDT	28 V	Gull Wing	Surface Mount	Non-Illuminated	0.4 VA	Unthreaded	Standard Round	28 V	85 °C	-30 ░C	On-On	3.81 mm	Process Sealed

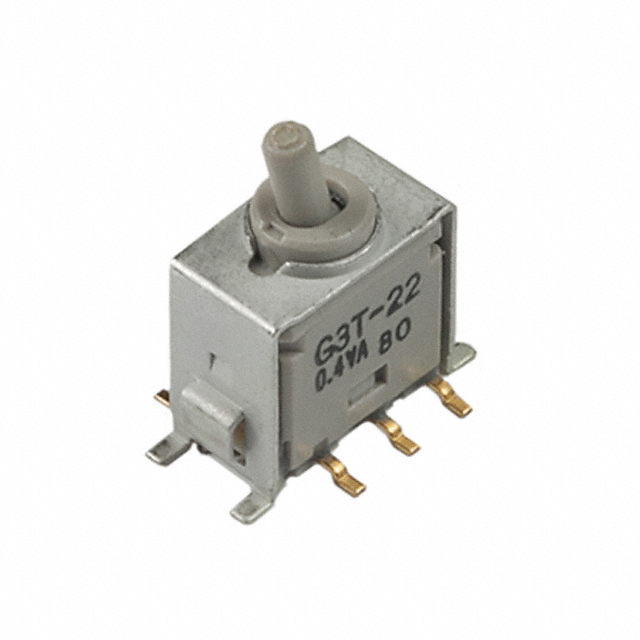

NKK Switches G3T22AB-S	50000 Cycles	Polyphenylene Sulfide (PPS)	DPDT	28 V	Gull Wing	Surface Mount	Non-Illuminated	0.4 VA	Unthreaded	Standard Round	28 V	85 °C	-30 ░C	On-On	3.81 mm	Process Sealed

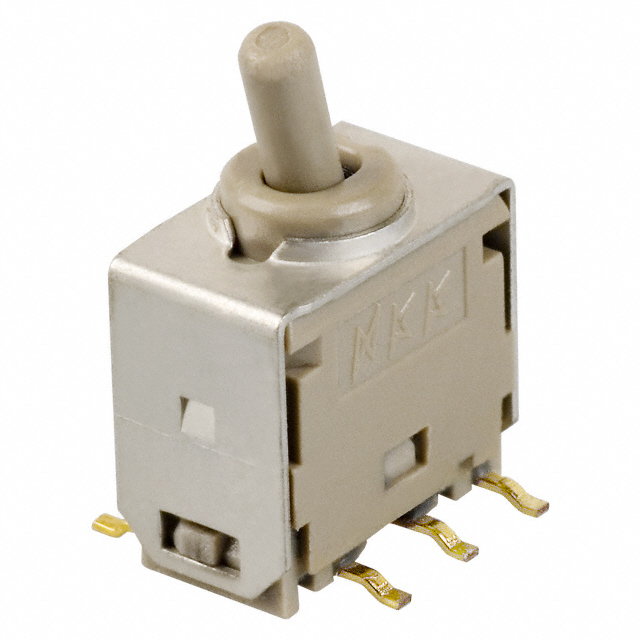

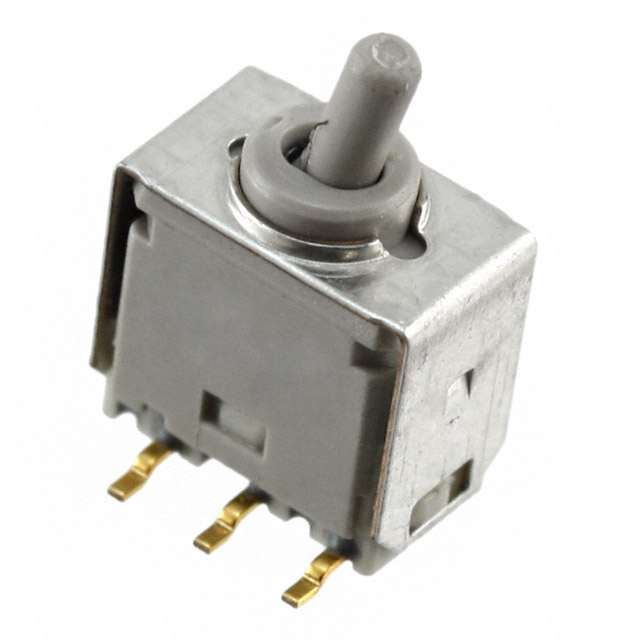

NKK Switches G3T22AP	50000 Cycles	Polyphenylene Sulfide (PPS)	DPDT	28 V	Gull Wing	Surface Mount	Non-Illuminated	0.4 VA	Unthreaded	Standard Round	28 V	85 °C	-30 ░C	On-On	3.81 mm	Process Sealed
