M2013LL Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 0.4VA 28V
| Part | Electrical Life | Actuator Material | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Features | Mounting Type | Actuator Length [x] | Switch Function | Illumination | Termination Style | Bushing Thread | Current Rating (Amps) | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Bushing Thread | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 28 V | 28 V | Locking Lever | Epoxy Sealed Terminals | Through Hole | 16.5 mm | On-Off-On | Non-Illuminated | PC Pin | Unthreaded | 0.4 VA | SPDT | 85 °C | -30 ░C | |||
NKK Switches | 50000 Cycles | Brass Chrome Plated | 28 V | 28 V | Locking Lever | Epoxy Sealed Terminals | Right Angle Through Hole Vertical | 16.5 mm | On-Off-On | Non-Illuminated | PC Pin | Unthreaded | 0.4 VA | SPDT | 85 °C | -30 ░C | |||
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 125 V | 30 V | Locking Lever | Epoxy Sealed Terminals | Panel Mount | 16.5 mm | On-Off-On | Non-Illuminated | PC Pin | 1/4-40 | 3 A 6 A | SPDT | 85 °C | -30 ░C | 6.5 mm | ||

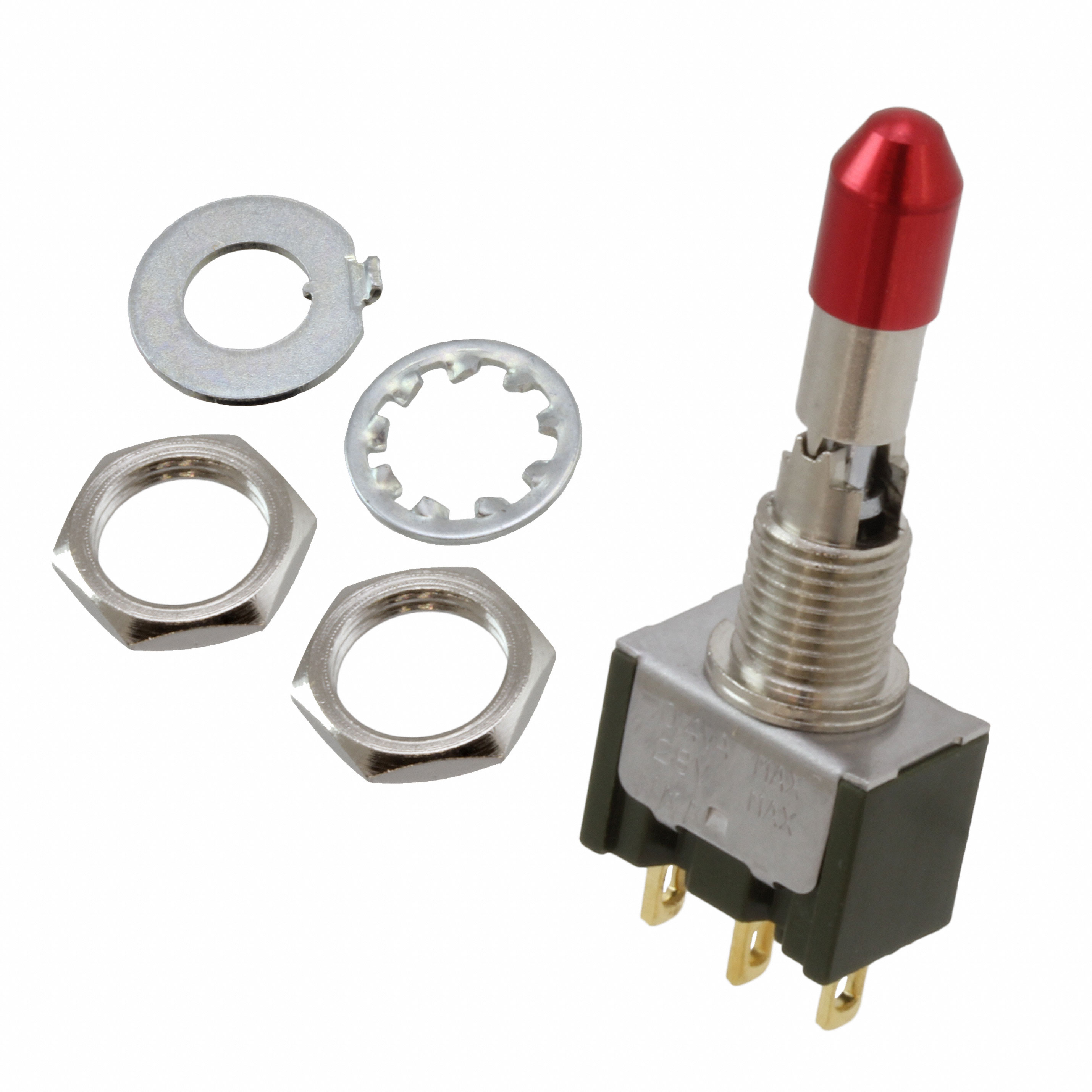

 NKK Switches | 50000 Cycles | Brass Chrome Plated | 28 V | 28 V | Locking Lever | Red Cap | Panel Mount | 16.5 mm | On-Off-On | Non-Illuminated | Solder Lug | 1/4-40 | 0.4 VA | SPDT | 85 °C | -30 ░C | 6.5 mm | ||
 NKK Switches | 25000 Steps | Brass Chrome Plated | 125 V | 30 V | Locking Lever | Epoxy Sealed Terminals | Panel Mount | 16.5 mm | On-Off-On | Non-Illuminated | Solder Lug | M6 | 4 A 6 A | SPDT | 85 °C | -30 ░C | 6.5 mm | 0.75 | |
 NKK Switches | 25000 Steps | Brass Chrome Plated | 125 V | 30 V | Locking Lever | Epoxy Sealed Terminals | Panel Mount | 16.5 mm | On-Off-On | Non-Illuminated | Solder Lug | 1/4-40 | 3 A 6 A | SPDT | 85 °C | -30 ░C | 6.5 mm | ||
 NKK Switches | 25000 Steps | Brass Chrome Plated | 125 V | 30 V | Locking Lever | Epoxy Sealed Terminals | Panel Mount | 16.5 mm | On-Off-On | Non-Illuminated | Solder Lug | 1/4-40 | 3 A 6 A | SPDT | 85 °C | -30 ░C | 6.5 mm | IP67 - Dust Tight Waterproof | |
NKK Switches | 25000 Steps | Brass Chrome Plated | 125 V | 30 V | Locking Lever | Epoxy Sealed Terminals | Panel Mount | 16.5 mm | On-Off-On | Non-Illuminated | Quick Connect - 0.062" (1.5mm) | 1/4-40 | 3 A 6 A | SPDT | 85 °C | -30 ░C | 6.5 mm | ||
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 28 V | 28 V | Locking Lever | Epoxy Sealed Terminals | Panel Mount | 16.5 mm | On-Off-On | Non-Illuminated | PC Pin | 1/4-40 | 0.4 VA | SPDT | 85 °C | -30 ░C | 6.5 mm | ||
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 28 V | 28 V | Locking Lever | Epoxy Sealed Terminals | Right Angle Through Hole | 16.5 mm | On-Off-On | Non-Illuminated | PC Pin | 1/4-40 | 0.4 VA | SPDT | 85 °C | -30 ░C | 6.5 mm |
