Kt0 Series Series

Full SMT Top & Side Actuated Sealed Tact Switch Wall Mount AC Adapters KT1001UK

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Full SMT Top & Side Actuated Sealed Tact Switch Wall Mount AC Adapters KT1001UK

Part	Illumination	Actuator Material	Features	Switch Function	Circuit	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Mechanical Life	Termination Style	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Ingress Protection	Contact Rating @ Voltage	Operating Force	Actuator Height off PCB, Vertical

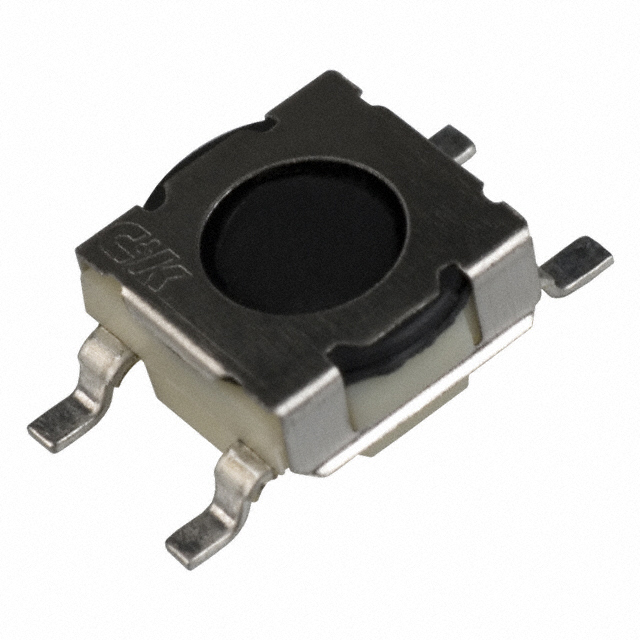

Littelfuse/Commercial Vehicle Products KT11B0SM	Non-Illuminated	Rubber	Sealed	Off-Mom	SPST-NO	50 VAC/DC	1 VA	100000 Cycles	Gull Wing	6.22 mm	6.38 mm	90 °C	-40 °C	Surface Mount	Flush	Top Actuated	3 mm	IP57 - Dust Protected Waterproof
Littelfuse/Commercial Vehicle Products KT11P2SA3M35LFG	Non-Illuminated	Nylon Polyamide (PA)	Sealed	Off-Mom	SPST-NO			100000 Cycles	Gull Wing	4.61 mm	7.77 mm	90 °C	-40 °C	Surface Mount Right Angle	Standard	Side Actuated		IP57 - Dust Protected Waterproof	1 VA 32 VAC/DC	300 gf
Littelfuse/Commercial Vehicle Products KT11P2CM	Non-Illuminated	Nylon Polyamide (PA)	Sealed	Off-Mom	SPST-NO	50 VAC/DC	1 VA	100000 Cycles	PC Pin	6.22 mm	6.38 mm	90 °C	-40 °C	Through Hole	Standard	Top Actuated		IP57 - Dust Protected Waterproof			5.2 mm

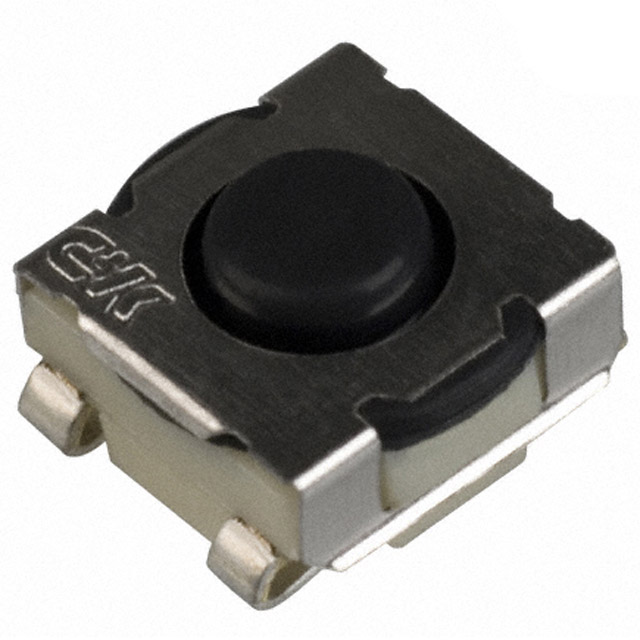

Littelfuse/Commercial Vehicle Products KT11B1JM	Non-Illuminated	Rubber	Sealed	Off-Mom	SPST-NO	50 VAC/DC	1 VA	100000 Cycles	J Lead	6.22 mm	6.38 mm	90 °C	-40 °C	Surface Mount	Standard	Top Actuated	3.64 mm	IP57 - Dust Protected Waterproof

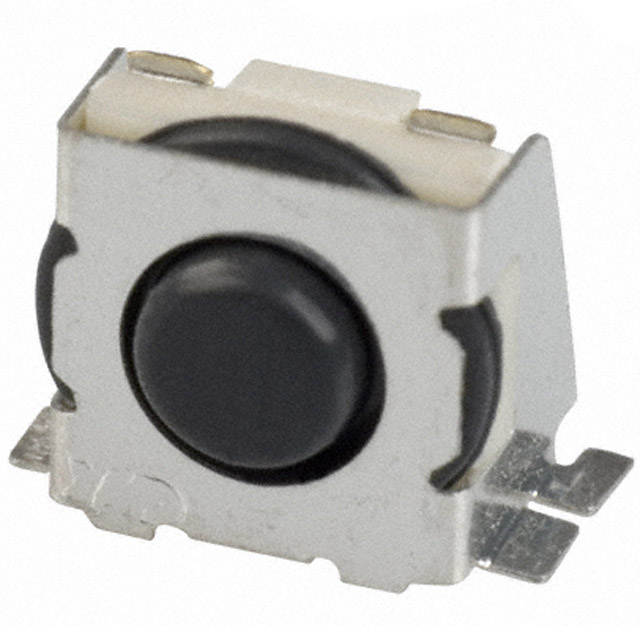

Littelfuse/Commercial Vehicle Products KT11B1SAM	Non-Illuminated	Rubber	Sealed	Off-Mom	SPST-NO	50 VAC/DC	1 VA	100000 Cycles	Gull Wing	4.38 mm	7.57 mm	90 °C	-40 °C	Surface Mount Right Angle	Standard	Side Actuated		IP57 - Dust Protected Waterproof

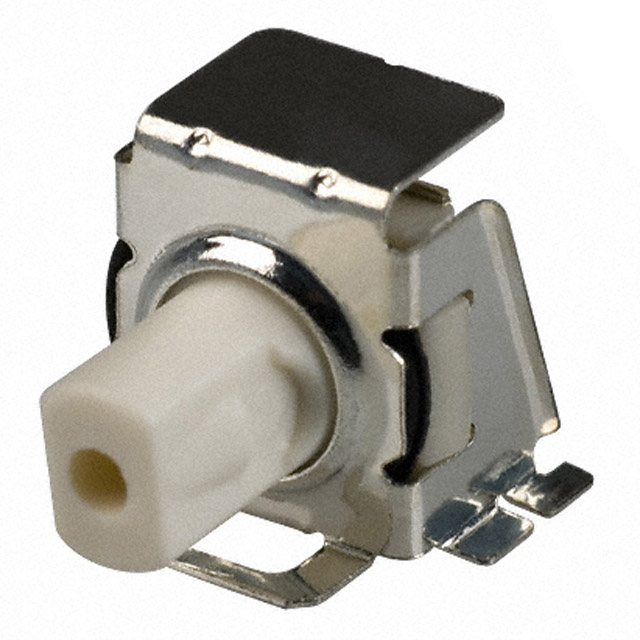

Littelfuse/Commercial Vehicle Products KT11S2SA2M35LFG	Non-Illuminated		Sealed	Off-Mom	SPST-NO			100000 Cycles	Gull Wing	6.41 mm	7.77 mm	90 °C	-40 °C	Surface Mount Right Angle	Plunger for Cap	Side Actuated		IP57 - Dust Protected Waterproof	1 VA 32 VAC/DC	300 gf

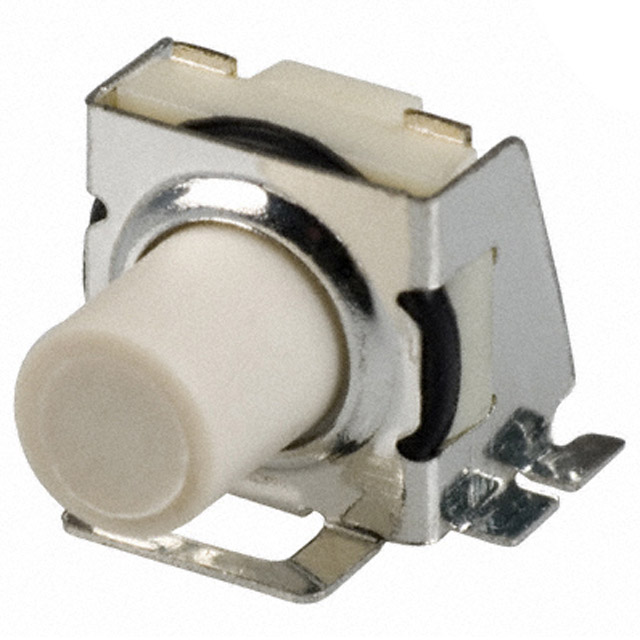

Littelfuse/Commercial Vehicle Products KT11P4SA1M33	Non-Illuminated	Nylon Polyamide (PA)	Sealed	Off-Mom	SPST-NO	50 VAC/DC	1 VA	100000 Cycles	Gull Wing	4.38 mm	7.77 mm	90 °C	-40 °C	Surface Mount Right Angle	Standard	Side Actuated		IP57 - Dust Protected Waterproof		300 gf
Littelfuse/Commercial Vehicle Products KT11B0CM	Non-Illuminated	Rubber	Sealed	Off-Mom	SPST-NO	50 VAC/DC	1 VA	100000 Cycles	PC Pin	6.22 mm	6.38 mm	90 °C	-40 °C	Through Hole	Flush	Top Actuated	2.84 mm	IP57 - Dust Protected Waterproof

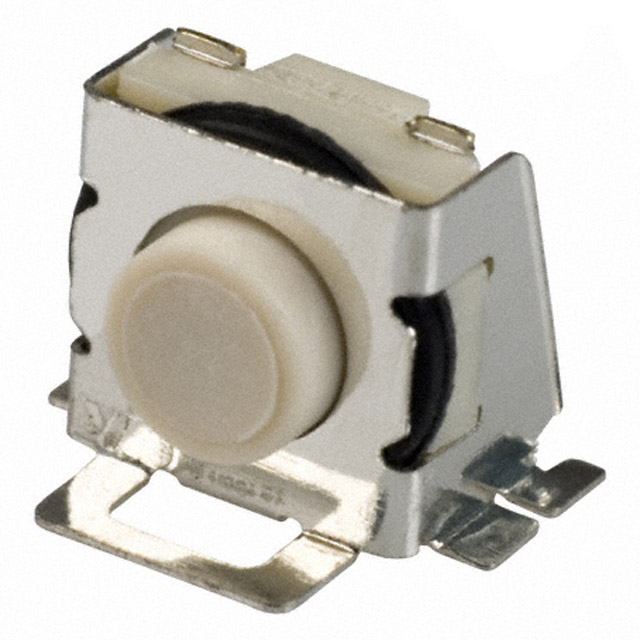

Littelfuse/Commercial Vehicle Products KT11P3SA1M34LFS	Non-Illuminated	Nylon Polyamide (PA)	Sealed	Off-Mom	SPST-NO			100000 Cycles	Gull Wing	4.38 mm	7.77 mm	90 °C	-40 °C	Surface Mount Right Angle	Standard	Side Actuated		IP57 - Dust Protected Waterproof	1 VA 32 VAC/DC	300 gf
Littelfuse/Commercial Vehicle Products KT11P3SA1M31	Non-Illuminated	Nylon Polyamide (PA)	Sealed	Off-Mom	SPST-NO	50 VAC/DC	1 VA	100000 Cycles	Gull Wing	4.38 mm	7.77 mm	90 °C	-40 °C	Surface Mount Right Angle	Standard	Side Actuated		IP57 - Dust Protected Waterproof		300 gf

Catalog

Full SMT Top & Side Actuated Sealed Tact Switch Wall Mount AC Adapters KT1001UK

Key Features

• SMT top-actuated tact switch with G or J terminations

• High shear force with extended bracket

• Full SMT side-actuated tact switch

Description

C&K’s KT series full SMT top and side actuated sealed tact switch has a high shear force with an extended bracket that gives it a long operating life. This feature, along with the KT’s G or J terminations, makes it ideal for computer, instrumentation and power supply applications.
