LB16SKW01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Electrical Life	Mechanical Life	Actuator Type	Circuit	Color - Actuator/Cap	Actuator Marking	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Type, Color	Illumination Voltage (Nominal)	Switch Function	Termination Style	Current Rating (Amps)	Mounting Type	Type
NKK Switches LB16SKW01-1C-A	100000 Cycles	200000 Cycles	Button Square	SPDT	Black	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	LED Red	1.9 VDC	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard

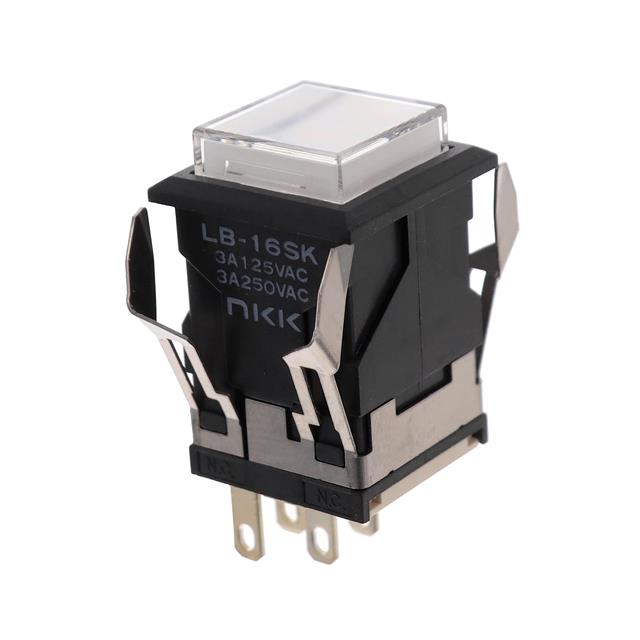

NKK Switches LB16SKW01-5C12-JB	100000 Cycles	200000 Cycles	Button Square	SPDT	Clear	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	LED Red	12 VDC	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard
NKK Switches LB16SKW01-5D12-JD	100000 Cycles	200000 Cycles	Button Square	SPDT	Clear	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	Amber LED	12 VDC	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard
NKK Switches LB16SKW01-6F-JB	100000 Cycles	200000 Cycles	Button Square	SPDT	Clear	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	Green LED	3.3 VDC	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard

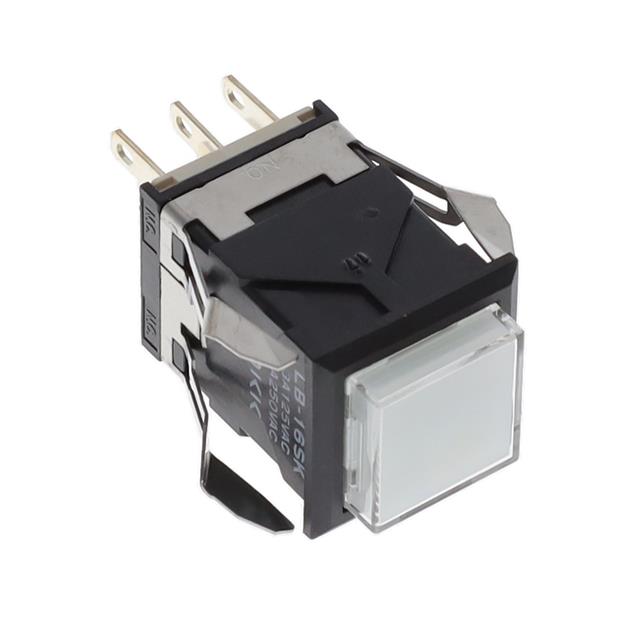

NKK Switches LB16SKW01-5F12-JB	100000 Cycles	200000 Cycles	Button Square	SPDT	Clear	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	Green LED	12 VDC	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard
NKK Switches LB16SKW01-5C12-JC	100000 Cycles	200000 Cycles	Button Square	SPDT	Clear	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	LED Red	12 VDC	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard
NKK Switches LB16SKW01-5F-JF	100000 Cycles	200000 Cycles	Button Square	SPDT	Clear	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	Green LED	2.1 VDC	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard
NKK Switches LB16SKW01-01-JC	100000 Cycles	200000 Cycles	Button Square	SPDT	Clear	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	Neon Red	110 VAC	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard
NKK Switches LB16SKW01-5F24-JB	100000 Cycles	200000 Cycles	Button Square	SPDT	Clear	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	Green LED	24 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard
NKK Switches LB16SKW01-6G-JB	100000 Cycles	200000 Cycles	Button Square	SPDT	Clear	No Marking	30 V	125 V	50 °C	-25 °C	16.2 mm	16.2 mm	Blue LED	3.6 VDC	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	Panel Mount Snap-In	Illuminated Standard
